SIAE ALFO Plus 23 GHz, LINK, Sub-Band 3, EO, 1 year warranty
- SKU: AP23-EO-LNK-B3
US$6,460.00
- Manufacturer: SIAE
- Data Sheet: Download
Product Information

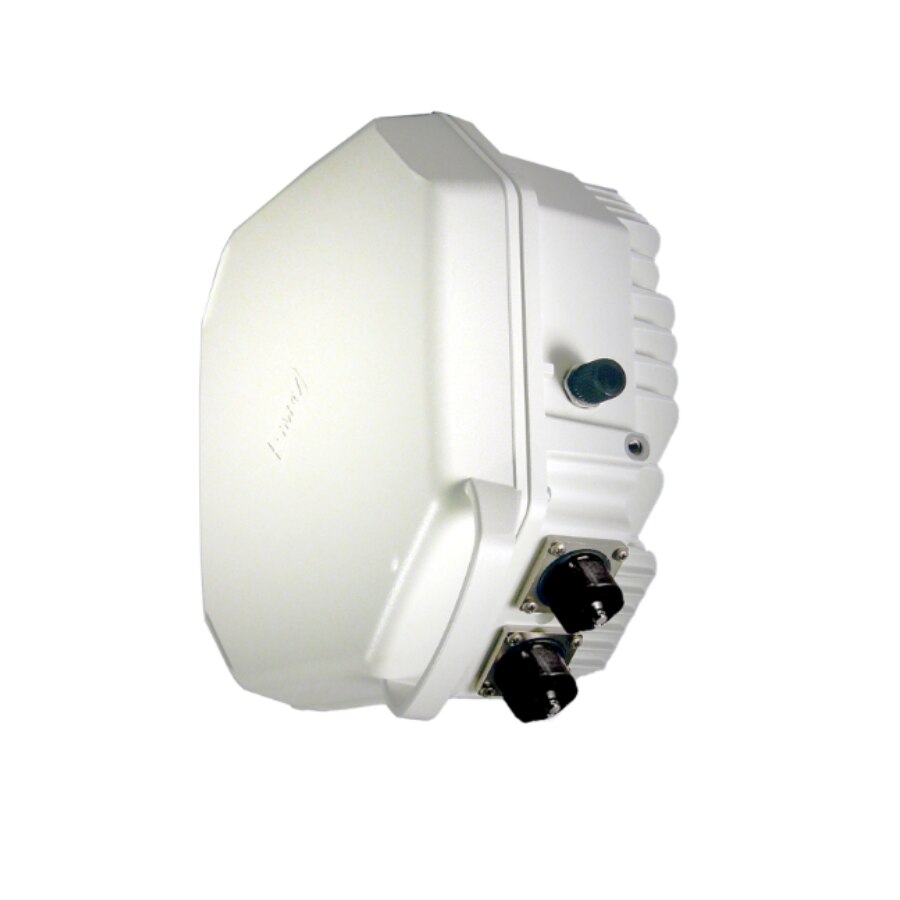

SIAE Microelettronica AP23-EO-LNK-B3
ALFO Plus 23 GHz, 100 Mbps full-duplex capacity, software upgradeable to 400 Mbps, LINK, Sub-Band 3, (21997.5 - 22400 MHz / 23197.5 - 23600 MHz) 1+0, BPSK to 1024QAM, 1x Electrical GbE port + 1x Optical GbE port, 1 year warranty
ALFOplus is a Full-Outdoor, fully IP Next Generation Microwave Radio.
Its zero footprint solution allows for fast rollout of 3G and LTE IP backhaul networks. Ideal for a fast and fl-exible evolution towards full IP networks it offers best in class performance and the lowest power consumption for a green but performing network.
ALFOplus combines compactness, best in class performance and the lowest power consumption in a single efficient and cost effective full outdoor device. It offers up to 500 Mbps transport capacity over higher modulation schemes of 1024QAM. ALFOplus is optimized for TCP/IP transport compliant to LTE traffic needs including packet synchronization techniques.
Features:
- 4QAM to 1024QAM modulations
- ACM adaptive code and modulation
- MultiLayer Header Compression
- 500 Mbps throughput
- Best in Class for SystemGain
- FCC/ETSI Channels supported
- Advanced Pure IP engine
- CISCO Microwave Adaptive Bandwidth feature interworking
- Synchronous Ethernet support
- IEEE 1588 v2 support
- Extended buffer for TCP/IP efficiency in LTE networks
- 1+0 Non-Protected Configuration
- Optical or Electrical port options
- Lowest power consumption
- Integrate antennae up to 1.8 m
- Unified Network Management System - NMS5
Specifications
Specifications AP23-EO-LNK-B3
Frequency | 23 GHz |
Supported configurations | (1+0) |
Modulation schemes | 4/16/32/64/128/512/1024 QAM with Hitless Adaptive Code and Modulation |
Supported Ethernet Throughput | 500 Mbps |
Traffic interfaces | 2 x GE electrical / optical |
Frequency stability | ± 5 ppm |
ATPC | 20 dB range implemented in 1 dB steps |
RTPC | Up to 20 dB in 1 dB step, software programmable |
Service channels | VoIP |
ODU connector | RJ45 or SFP Optical Plug-in |
Management Interfaces | In-band management |
Mechanical dimensions ODU (WxHxD) | 10 x 10 x 6 (in) |
Power supply | 25 ÷ 60 VDC oating |
Power consumption (per terminal) | ≤ 35W in 1+0 configuration |
ODU weather proofing class | IP65 |
ODU operational Temperature (standard range) | -35° C to +55 ° C |
Ethernet characteristics | MAC address switching, ageing and learning VLAN / VLAN stacking (IEE 802.1ad-QinQ) Ethernet QoS (IEEE 802.1p) Flow Control (IEEE 802.3x) RMON Statistics (RFC 2819) LLF (Link Loss Forwarding) LAG (Link Aggregation IEE 802.3ad ETH OAM (IEEE 802.1ag / ITU-T Y.1731) RSTP (Rapid Spanning Tree Protocol) |
Compliant with | FCC Part 101 |
