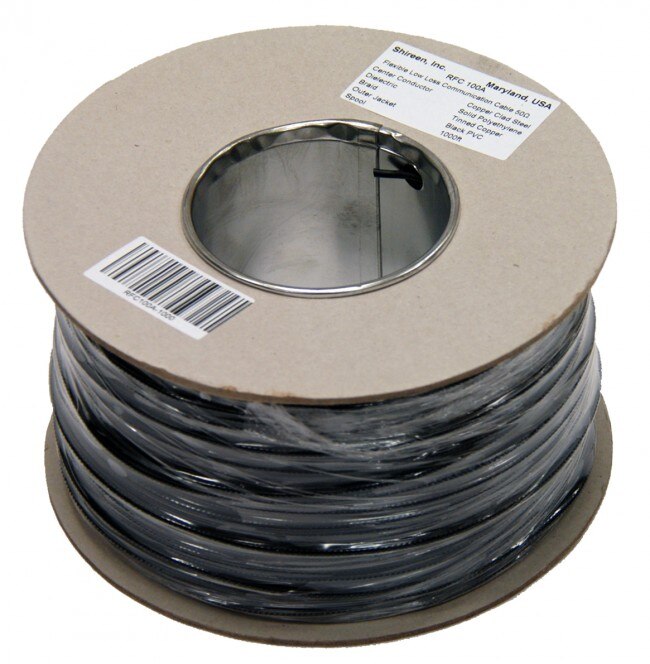

Shireen LMR100A EQ cable, 1000ft spool

(0) No Reviews yet
  • SKU: RFC100A-1000
  • Manufacturer: Shireen
  • Data Sheet: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$139.00

Specifications RFC100A-1000

Center Conductor

Min. Break Strength (N)128
Conductor Dia.(+/-0.01mm)0.46

Insulation

Insulation Dia.(+/-0.10mm)1.52
ColorNeutra
Centricity (%)≥ 90
Adhesion10 to 100N @ 25mm

1st Outer Conductor

Overlapping≥ 115%
Dia.(+/-0.10mm)1.65

2nd Outer Conductor

Conductor Dia.(+/-0.01mm)0.10
No. of Wires80
Coverage (+/-3%)90

Outer Jacket

Outer Dia (+/-0.10mm)2.79
Tensile strength≥ 13.5 N/mm2
Elongation at break≥ 100 %
Adhesion20 to 80N @ 50mm

Shireen RFC100A-1000 LMR100A eq cables, 1000ft spool

Shireen’s latest RFC® series of low loss cables offer excellent characteristics that meet or exceed the specs of alternatives from Times Microwave, Commscope, Andrew and Belden.

RFC®, Registered trademark of Shireen Inc

LMR®, Registered trademark of Times Microwave Systems


  • Generic Name: RFC100A
  • Cable Type: LMR®
  • Flex Type: Flexible
  • Impedance: 50 Ohm
  • Outer Jacket: PVC
