Siklu 10 GbE Ethernet/PoE Surge Protector (outdoor) 802.3ab/bz/an

(0)No Reviews yet
  • SKU: AX-SRG-10G-OD
  • Manufacturer: Siklu
  • Data Sheet: Download

Out of Stock

Direct Ship Item

Product Information

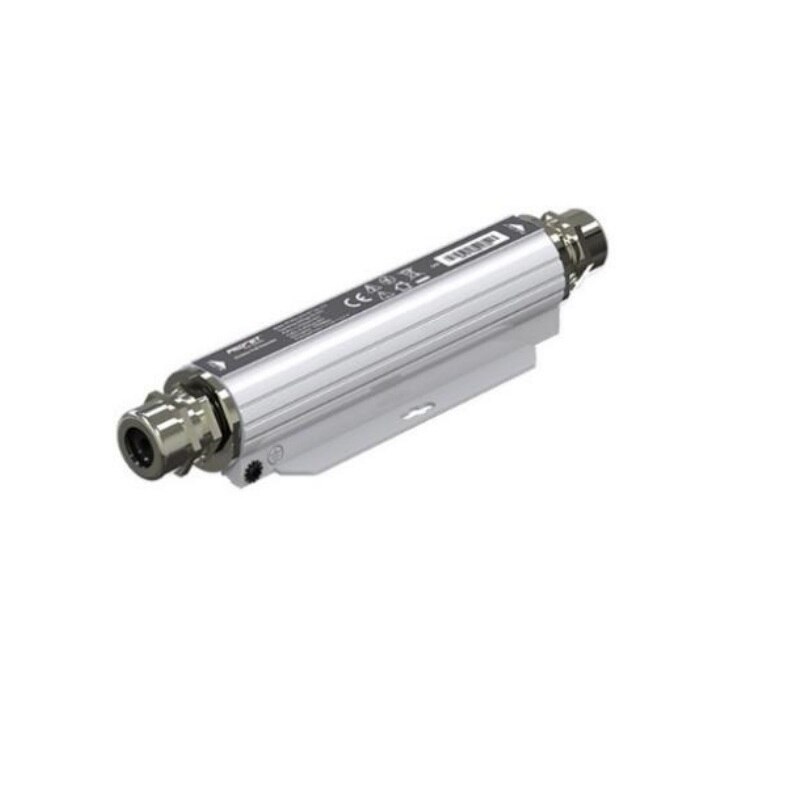

Siklu AX-SRG-10G-OD

10 GbE Ethernet/PoE Surge Protector (outdoor) 802.3ab/bz/an

The Siklu AX-SRG-10G-OD is an outdoor surge protector for EtherHaul, MultiHaul and MultiHaul TG radios. It is a single-port PoE surge protector, wall-mounted, designed for exterior applications with an IP-67 rated exterior.

Specifications

Specifications AX-SRG-10G-OD

Input/output Data Speed10/100/1000Mbps & 2.5/5/10GbE
Operating Voltage44-57VDC normal and maximum 60VDC
Operating DC current1A for 2 pairs 2A for 4 pairs
Power100W
POE Surge Protection
Discharge Current20KA (8/20us,2.5KA per line)
Common Mode Protection Level(10/700us)10KV
Differential Mode Protection Level(10/700us)6KV
Differential Mode Protection Level(10/700us)6KV
Clamping Voltage (Line to GND)300V
Clamping Voltage (Line to Line)10V
Response Time5ns
Environment
Operating Temperature-40°C TO 65°C
Operating Humidity20 to 80%. Noncondensing
Storage Temperature-40°C TO +85°C
Storage Humidity10 to 95%. Noncondensing
SafetyCE
EMCC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port: ±1kV IEC61000-4-5(Surge) Power Port: ±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz) FCC CFR47 Part 15, EN55024, EN55032
ImmunityIEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall)
Dimension
Length209mm
Width53mm
Height37.5mm
Weight380g
