Siklu MultiHaul 60GHz 100Mbps to 1Gbps Terminal Unit (3-Port Model) (VEHP208)

(0)No Reviews yet
  • SKU: MH-T200-CCC-PoE-MWB
  • Manufacturer: Siklu
  • Data Sheet: Download

Out of Stock

Direct Ship Item

Product Information

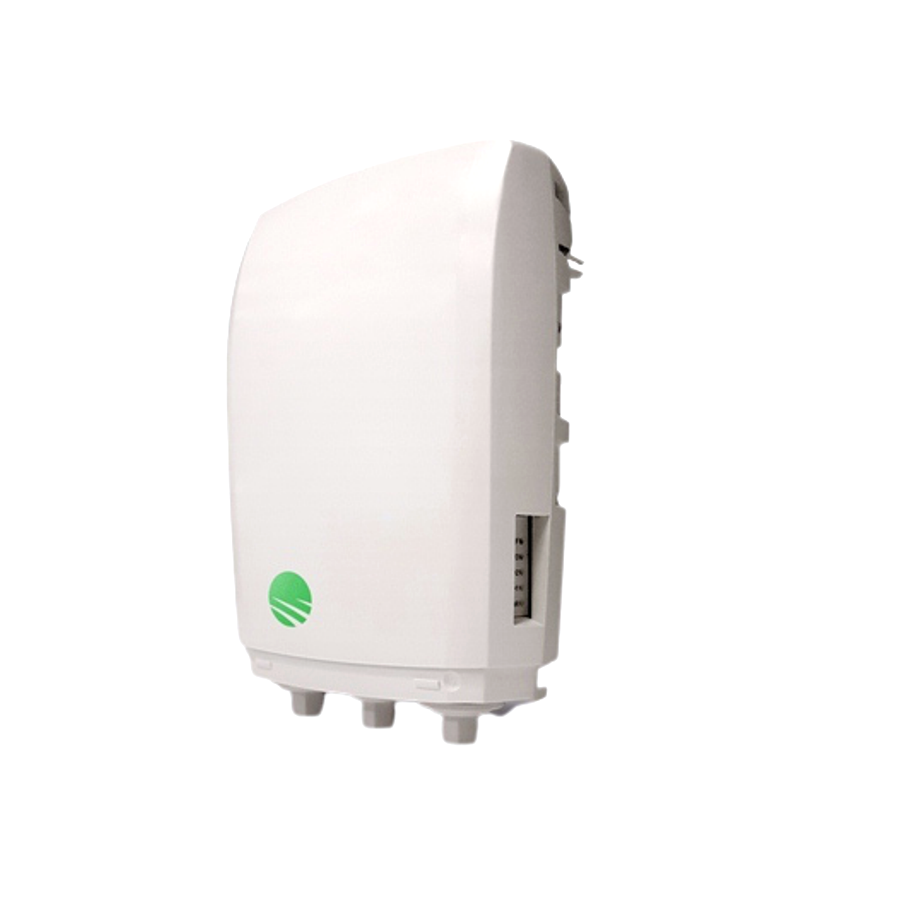

Siklu MH-T200-CCC-PoE-MWB

MultiHaul 60GHz 100Mbps to 1Gbps Terminal Unit (3-Port Model) (VEHP208)

This Terminal Unit, MH-T200-CCC-PoE-MWB, is part of the Siklu MultiHaul solution. Operating on millimeter wave spectrum (60GHz), with a 100Mbps throughput (upgradable to 1Gbps).

Siklu MultiHaul is a PTMP multi-gigabit radio operating over millimeter waves. It brings the advantages of mmW - multi-gigabit capacity, immunity to interference and always-on reliability - to a cost effective small form factor PTMP solution. MultiHaul is a plug and play system designed to easily scale, taking advantage of patent-pending scanning antennas that auto-align links, as well as robust planning and management tools.

MultiHaul units operate over the millimeter wave spectrum using narrow beams. This confers several advantages including complete immunity to interference and network jamming, as well as high security. In contrast to wide-beam wireless systems that need to use multiple strategies to perform in dense areas, and are not successful 100% of the time, MultiHaul is inherently interference-free and secure under any circumstances because of its use of a unique combination of narrow beams and high frequencies.


Features:

  • Security / Safe City Networks
  • Gigabit to the Home
  • Smart City
  • Business Services
  • Wi-Fi Backhaul

Specifications

Specifications MH-T200-CCC-PoE-MWB

TopologiesPoint to Multi-Point / Point to Point
Built-In AntennaHorizontal Scanning: 90° / Vertical Beamwidth: 20°
Frequency and Duplexing57-64GHz
Channels and Width2 non-overlapping channels, 2160MHz wide
Modulation and Coding9 levels of adaptive coding and modulation
Line Rate (PHY) Line rate up to 2300Mbps
Aggregate ThroughputMax capacity 1000Mbps, license dependant
System Gain (Link Budget)125dB (including antenna gain)
Typical Reach800 - 1000ft (250 - 300m)
Interfaces3 x RJ-45 100/1000 Base-T
Terminal Units (TU)Up to 8 Terminal Units
Ethernet FeaturesIEEE 802.1d transparent bridging VLAN & VLAN stacking Jumbo frames
SecurityAES 128-bits
Management and Provisioning Zero-touch turn up; In-band, out-of-band management Web GUI: (one-click configuration of local and remote units) and embedded CLI SNMPv2/3, TACACS+, RADIUS
Conformance
RadioFCC Part 15.255
EMCFCC 47CFR.part 15
SafetyUL 60950
Power SupplyPoE, 10W (IEEE 802.3af) without PoE-out, 50W with PoE-Out (IEEE 802.3at+)
PoE Out ETH2: 26W, 802.3af
ETH3: 13W, 802.3af
Environmental
Operating Temperature-22 to 131°F (-30 to 56°C)
Optional-49 to 131°F (-45 to 56°C)
Ingress Protection RatingIP65 (optional IP67)
Dimensions7.5 x 5.2 x 3.5" (190.5 x 132.08 x 88.9mm)
Weight3lbs (including mounting kit)
