AC1750 Dual Band Wireless Gigabit Router (Open Box)
- SKU: Archer C7 (Open Box)
Product Information
AC1750 Wireless Dual Band Gigabit Router Archer C7 (Open Box)
The New Wi-Fi Standard for an Advanced Online Experience
The Archer C7 is a fast 802.11ac router with incredible range. It's better than many routers that are twice as expensive. This advanced Wi-Fi is designed for high-traffic online activities and can help to run applications at triple the speed of the previous 802.11n standard.
Concurrent Dual Band Connections for Lag-Free Work and Entertainment
The Archer C7 operates both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.
External Antennas with Dual Band Wi-Fi Greatly Expand Wireless Coverage
Three external antennas with advanced connection technology allow you to maintain impressive speeds. With antennas serving both the 2.4GHz and 5GHz band, you can enjoy incredible wireless coverage and reliability in any part of your large home or office.
Versatile USB Connectivity
A USB 2.0 port makes the Archer C7 a truly resourceful gateway. Share a hard drive full of media through your home network, or via an ftp server whenever you’re away.
Full Gigabit Wired Connections for Ultrafast Data Transfer Speeds
With one Gigabit WAN port and four Gigabit LAN ports, speeds can be up to 10× faster than standard Ethernet connections. The Archer C7 is a powerful hub to support a robust and extremely fast wired network.
Parental Controls
Manage when and how connected devices can access the internet .
IPv6 Supported
Supports IPv6, the next generation of Internet protocol, helping you to future-proof your network
Quality of Service
Prioritizes devices or applications to give faster performance where you need it.
Features:
- Supports 802.11ac standard - 3 times faster than wireless N speeds*
- Simultaneous 2.4GHz 450 Mbps and 5GHz 1300 Mbps connections for 1.75Gbps of total available bandwidth
- USB Port - easily shares files & media with networked devices or remotely via FTP server
- Guest Network Access - provides secure Wi-Fi access for guests sharing your home or office network
- Easy setup and management with Tether App
Specifications
Specifications Archer C7

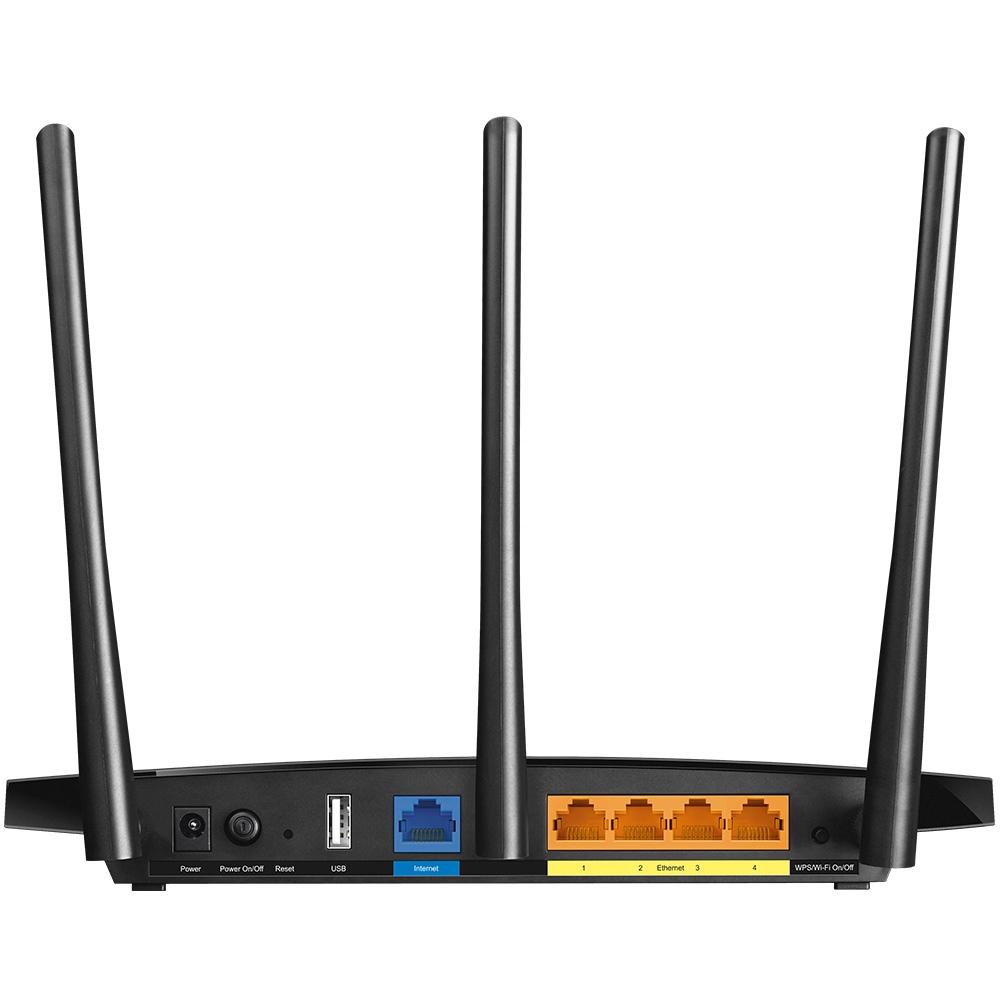

| Ethernet Ports | 4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port |
| USB Ports | 1 USB 2.0 Port |
| Buttons | Power On/Off Button, Reset Button, WPS/Wi-Fi On/Off Button |
| Antennas | 3 Fixed Antennas |
| External Power Supply | 12VDC/1.5A |
| Dimensions (W x D x H) | 9.6x6.4x1.3 in. (243 X 160.6 X 32.5mm) |
| Software | |
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access), Bigpond |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP, TP-Link |
| VPN Server | PPTP, Open VPN |
| Access Control | Parental Control, Local Management Control, Blacklist, Whitelist |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| USB Sharing | Supports Samba(Storage), FTP Server, Media Server, Offline Download |
| Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
| Wireless | |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 1300Mbps at 5GHz, 450Mbps at 2.4GHz |
| CE EIRP | <20dBm(2.4GHz), <23dBm(5GHz) |
| FCC Transmit Power | <30dBm(2.4GHz & 5GHz) |
| Reception Sensitivity | 5GHz: 11a 6Mbps: -93dBm, 11a 54Mbps: -76dBm 11ac HT20 mcs8 : -68dBm, 11ac HT40 mcs9: -64dBm 11ac HT80 mcs9: -61dBm 2.4GHz: 11g 54Mbps: -77dBm 11n HT20 mcs7: -74dBm, 11n HT40 mcs7: -72dBm |
| Wireless Function | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | Enable/Disable SSID Broadcast, 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS, Wireless MAC Filter |
| Others | |
| Certification | CE, FCC, RoHS |
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
