TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
- SKU: Archer TX20E
- Manufacturer: TP-Link
Product Information

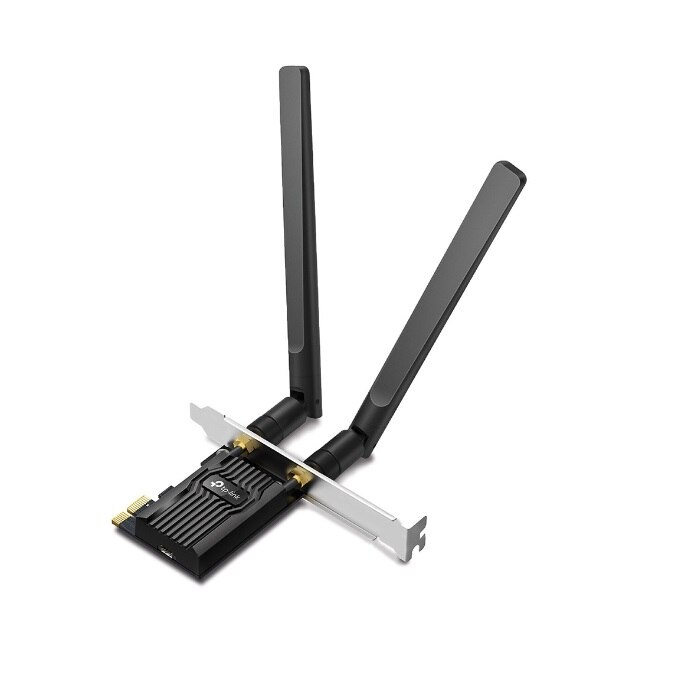

TP-Link Archer TX20E
AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Wi-Fi 6 Upgrades Everything
The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.
More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.
High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.
Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.
Easy Setup
The utility on the provided CD makes software installation remarkably simple
Operating System
Supports Windows 11/10 (64-bit) only
Standard and Low-Profile Brackets
Both a standard and low-profile bracket, for mini tower computer cases, are provided
Features:
- Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
- Bluetooth 5.2—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
- Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
- Backward Compatibility – Full support for 802.11ax/ac/a/b/g/n standards
Specifications
Specifications Archer TX20E
| HARDWARE FEATURES | |
| Dimensions | 4.76 × 3.09 × 0.82 in (120.8 × 78.5 × 20.9 mm) Weight: 0.22 lbs |
| Antenna Type | Two High-Gain Dual Band Antennas |
| Chipset | Realtek Wi-Fi 6 Chipset |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.2 |
| WLAN Signal Rate | 5 GHz 2.4 GHz |
| WLAN Reception Sensitivity | 5 GHz : 2.4GHz : |
| WLAN Transmit Power | 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| System Requirements | Windows 11/10(64-bit) only |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
