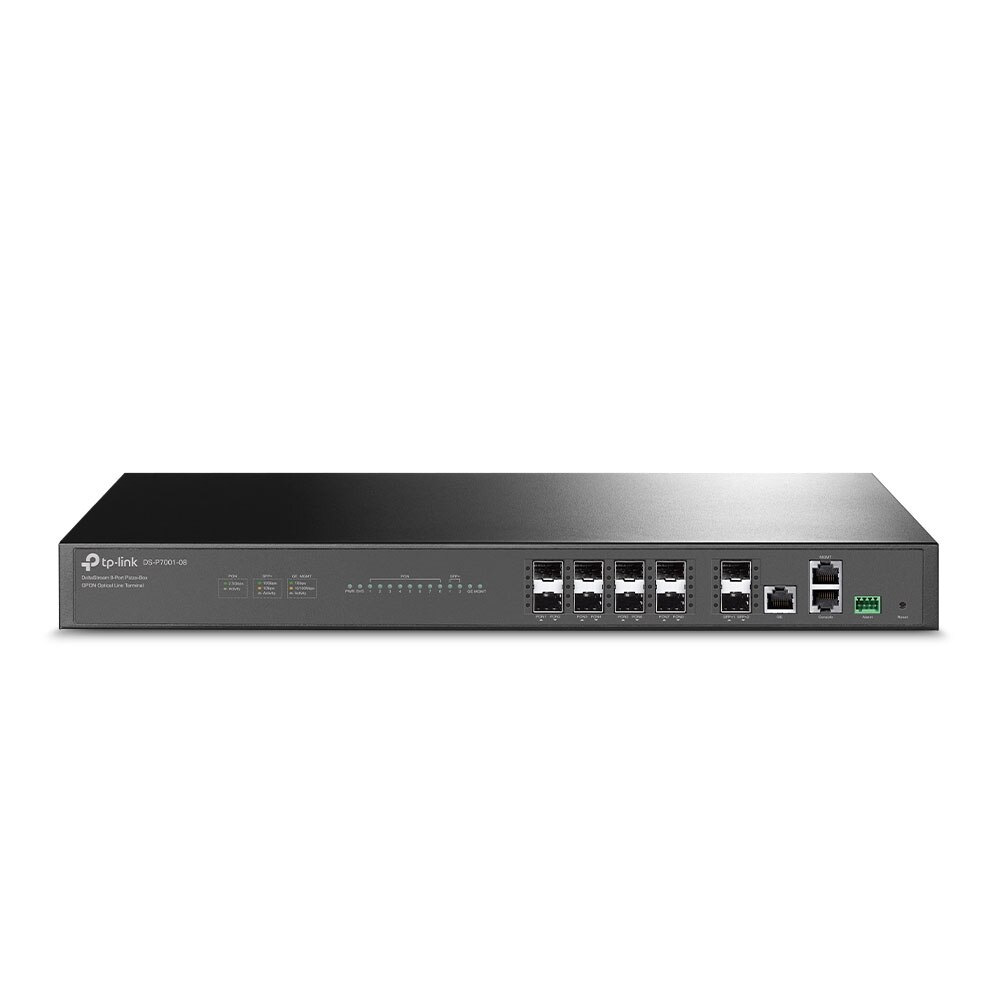

TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal
- SKU: DS-P7001-08
- Manufacturer: TP-Link
- Spec Sheet: Download
Product Information
TP-Link DS-P7001-08
DeltaStream 8-port Pizza-box GPON Optical Line Terminal
8 GPON Ports, Supports 1024 ONUs
Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device
Free Centralized Management Via DeltaStream PON Management System (DPMS)
Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.
- No Additional Expense
- Improve Management Efficiency And Reduce Maintenance Costs
- The Easy-to-Use Dashboard Ensures Hassle-Free Configuration
Compact Size, Flexible Deployment
Mount in a rack for flexible deployment with all your other products.

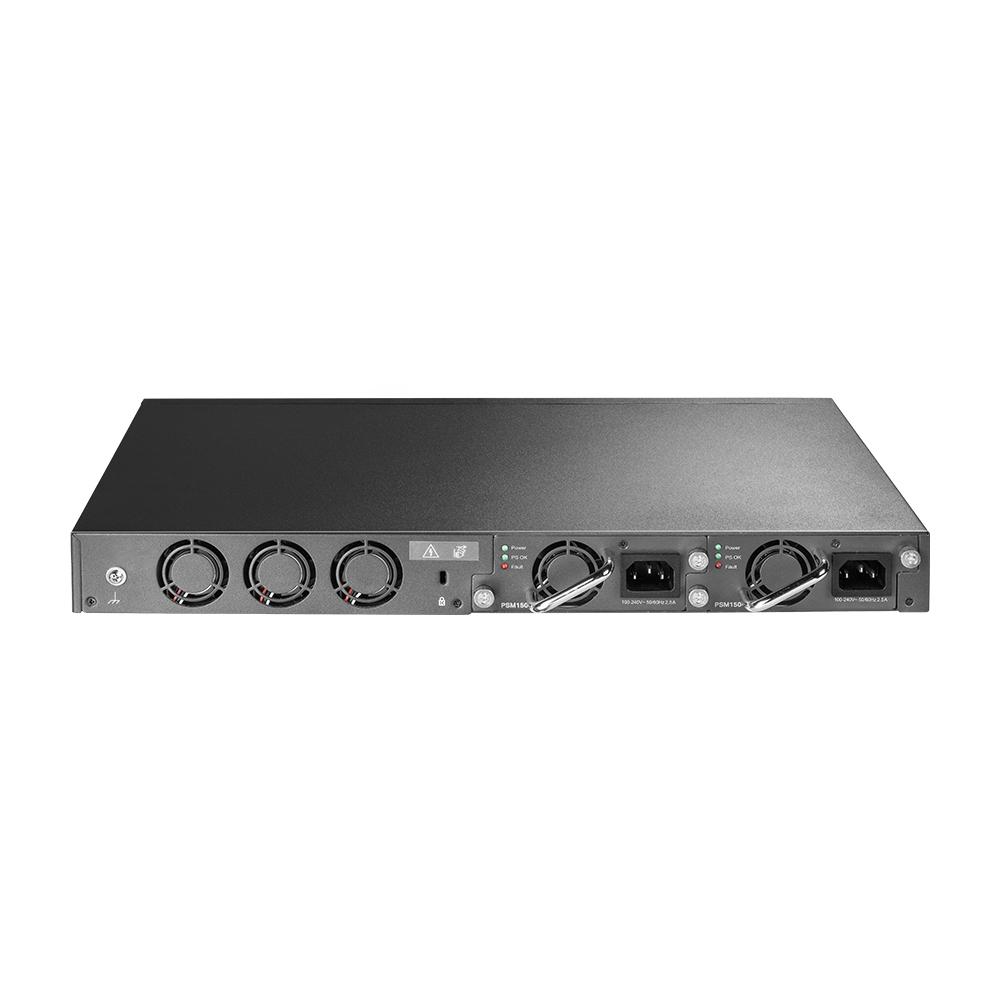

Constant Reliability Through Dual Redundant Power Supplies
Dual redundant power supplies ensures carrier-class reliability. AC, DC and mixed power input supported.
- AC input: 100V~240V 50/60Hz
- DC input: 38.4V~72V
- Hot Swapping
Features:
- 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
- High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port.
- Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies.
- Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
- Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
Specifications
Specifications DS-P7001-08
| HARDWARE FEATURES | |
| Interface | • 8× 2.5G PON Ports |
| Button | Reset Button |
| Power Supply | • Dual Power Supplies: 2 AC, 2 DC or AC+DC, • AC: 100V~240V, 50/60Hz • DC: -38.4V~-72V |
| Power Consumption | Max. 70W |
| Dimensions ( W x D x H ) | 17.3 × 10.2 × 1.7 in (440 × 260 × 44 mm) |
| SOFTWARE FEATURES | |
| Security | • ACL• 802.1x Authentication• ARP Inspection• IP Source Guard |
| DHCP | • DHCP Server• DHCP Relay |
| OMCI | Standard OMCI Management Supported |
| ONU Authentication | ONU Auto Authentication |
| ONU Security | • Rouge ONU Detection and Isolation• Uplink and Downlink Data Encryption |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| QoS | • IEEE 802.1p/DSCP QoS• Voice VLAN• Auto VoIP |
| Routing | Static Routing |
| Mulitcast | • IGMP Snooping• MLD Snooping |
| Centralized Management | • Large-Scale Devices Management |
| GPON PORT ATTRIBUTE | |
| Max. Splitting Ratio | 1:128 |
| Transmission distance | 20 km |
| Data rate | • Downstream: 2.5 Gbps• Upstream: 1.25 Gbps |
| Wavelength | • Tx: 1490 nm• Rx: 1310 nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| Tx power | Class C+ |
| OTHERS | |
| Certification | CE,FCC |
| Environment | • Operating Temperature: 0°C~50°C (32°F~122°F) • Storage Temperature: -40℃~70℃(-40°F ~158°F) |
