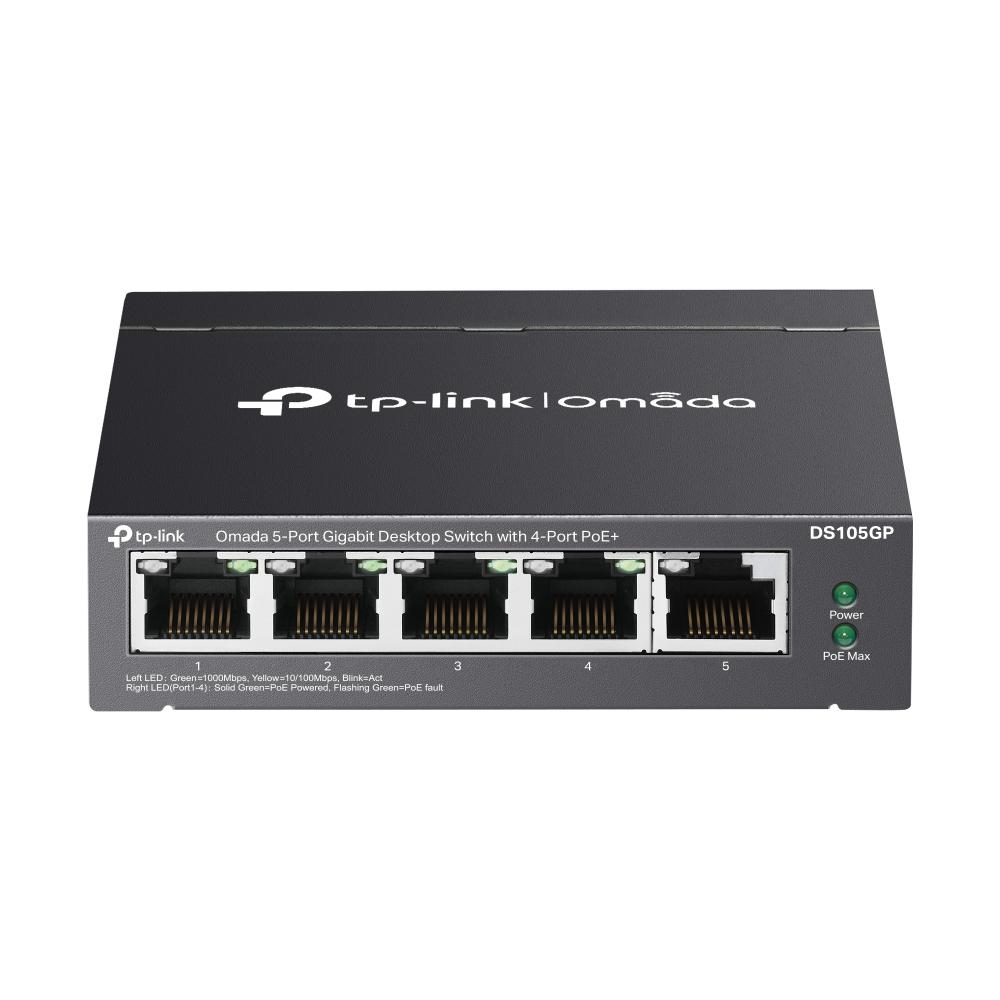

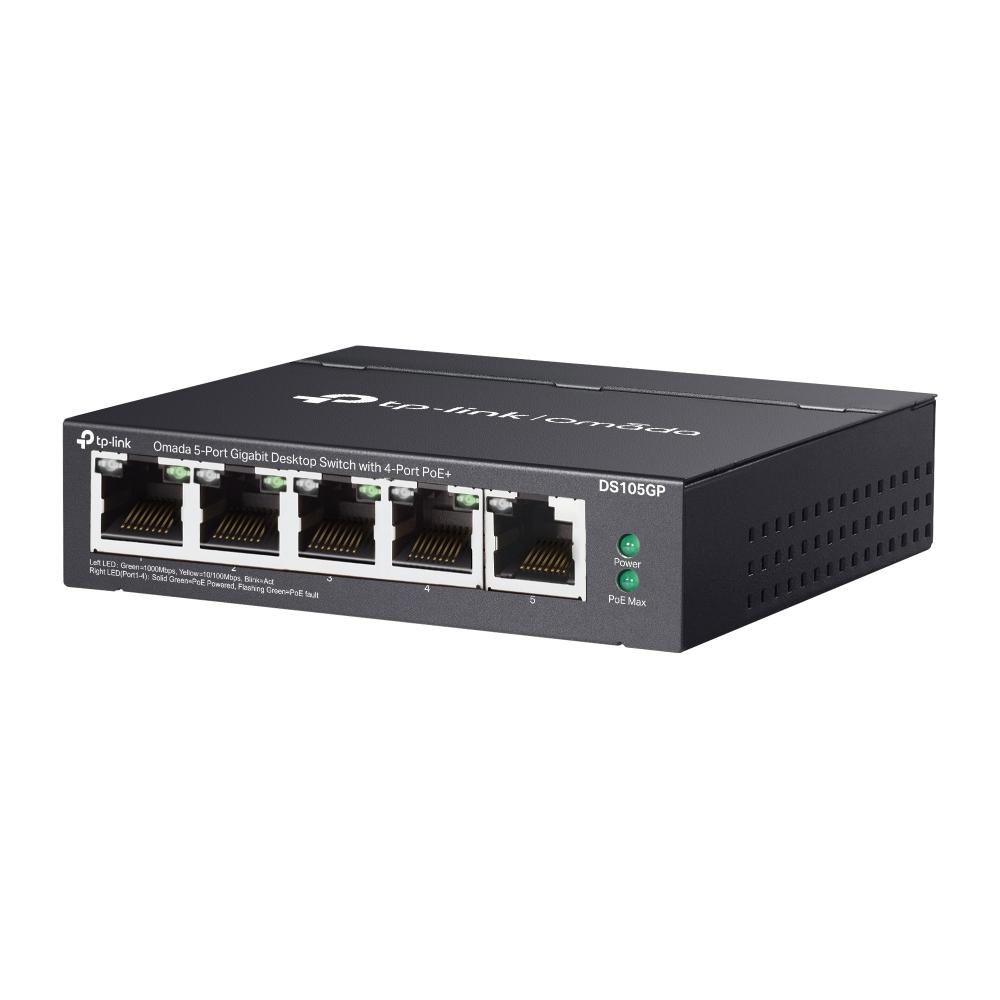

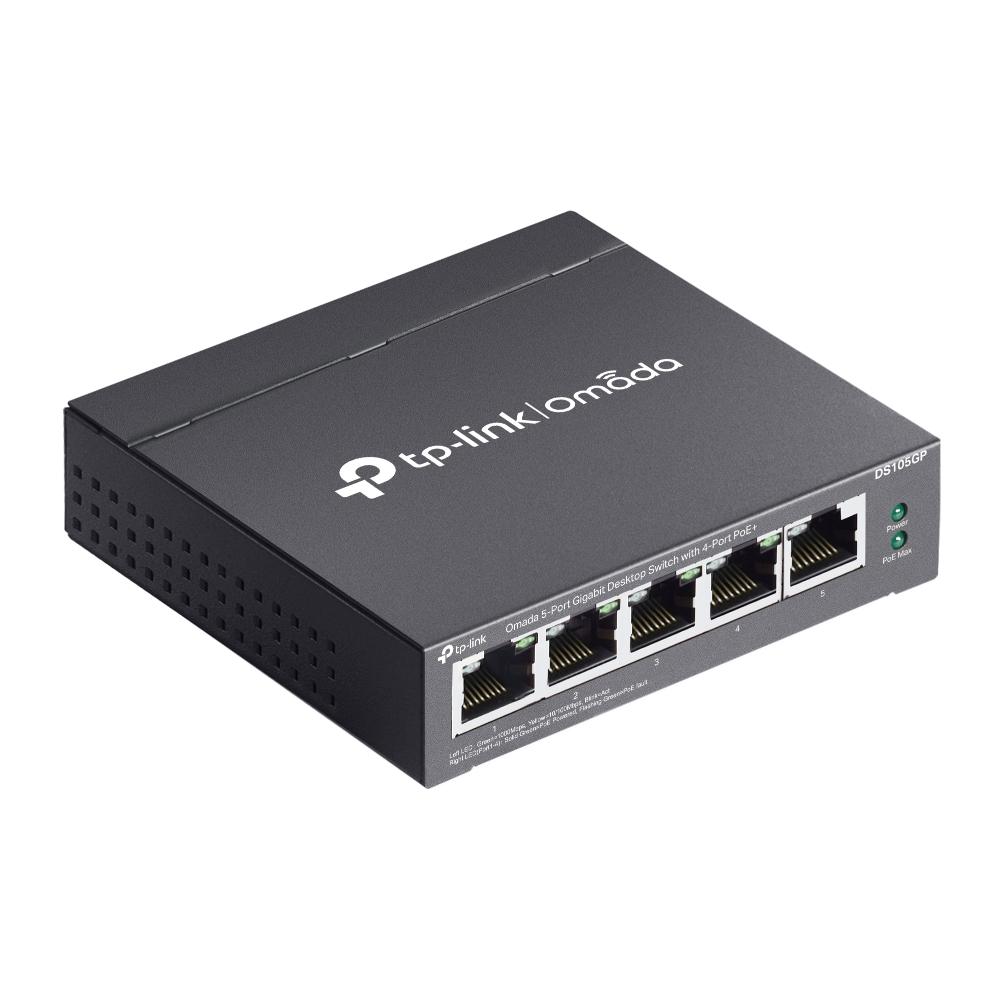

TP-Link Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+
- SKU: DS105GP
$49.99
Product Information
TP-Link DS105GP
Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 65 W with 30 W max per PoE+ port. When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.

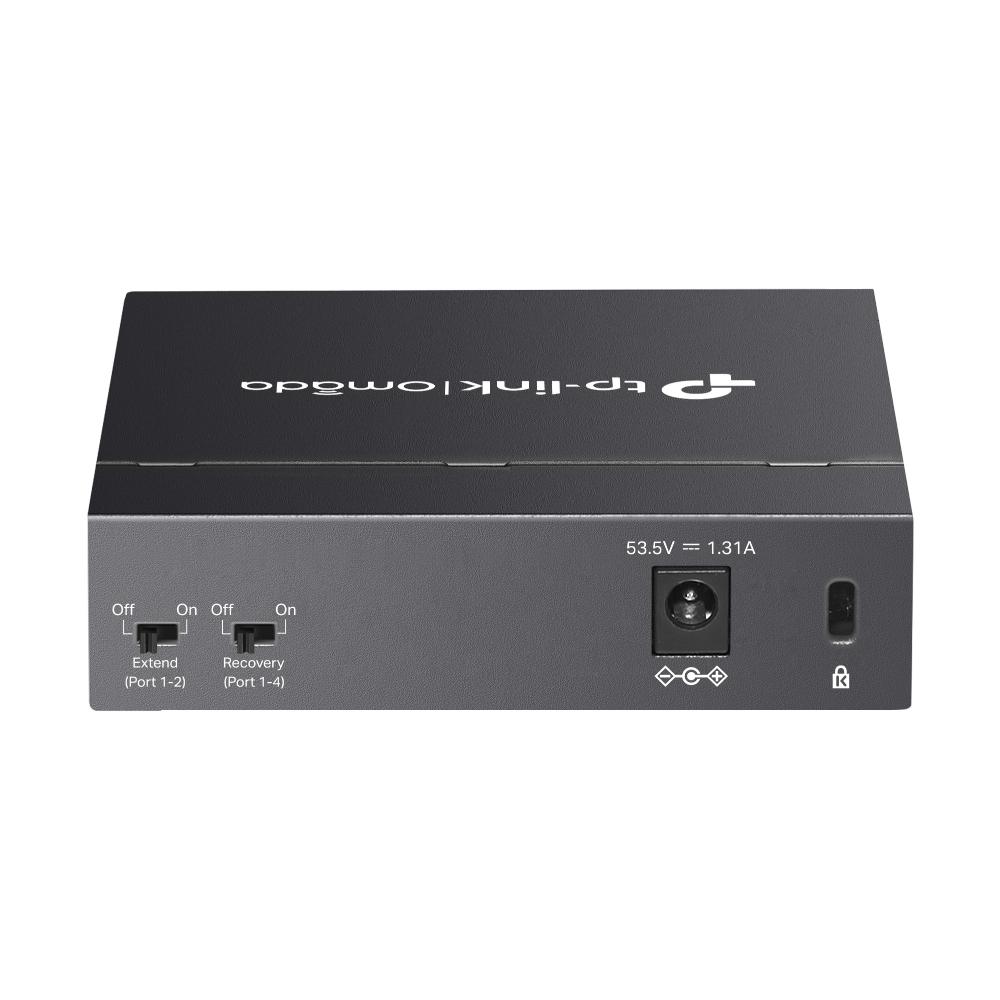

Instantaneous Multi-mode Toggles
Extend Mode: Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.
PoE Auto Recovery
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.
Features:
- 5× 10/100/1000 Mbps RJ45 ports.
- With four PoE+ ports, transfers data and power on one single cable.
- Works with IEEE 802.3af/at compliant PDs.
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
- Supports PoE Power up to 30 W for each PoE port.
- Supports PoE Power up to 65 W for all PoE ports.
- Up to 250m (820ft) data and power transmitting range under Extend Mode.
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD device
- Plug and Play. No configuration or central management required.
Specifications
Specifications DS105GP
| HARDWARE FEATURES | |
| Interface | • 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 7.44 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 10 Gbps |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
| Max Power Consumption | • 3.44 W (220/50 Hz. no PD connected) • 74.49 W (220/50 Hz. with 65 W PD connected) |
| Max Heat Dissipation | • 11.73 BTU/h (no PD connected) • 254.01 BTU/h (with 65 W PD connected) |
| SOFTWARE FEATURES | |
| Advanced Features | • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4) |
| Transfer Method | Store-And-Forward |
| Certification | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
