TP-Link Omada 10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+
- SKU: DS110GMP
$119.99
- Manufacturer: TP-Link
- Installation Guide: Download
Product Information
TP-Link DS110GMP
Omada 10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at/bt PoE standards, the switch supports a total PoE power budget of 123 W with 30 W max per PoE+ port and 60 W max per Poe++ port. When total power consumption exceeds 123 W, the intelligent power managerment will cut the lower priority ports power to protect devices from damage.
Instantaneous Multi-mode Toggles
- Extend Mode - Up to 250m Transmissions: With extend mode, the PoE transmission distance reaches up to 250m** —perfect for IP Camera deployment in large areas.
- Priority Mode - One-click Port Priority: Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports.
- Isolation Mode - Traffic Separation for Security: Isolation Mode easily divides traffic for ports to avoid snooping/tampering and isolates broadcast storm for higher security.
- Recovery Mode - PoE Auto Recovery: Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.
Plug and Play
- 1. Connect to Power
- 2. Connect the Devices
- 3. Enjoy
Features:

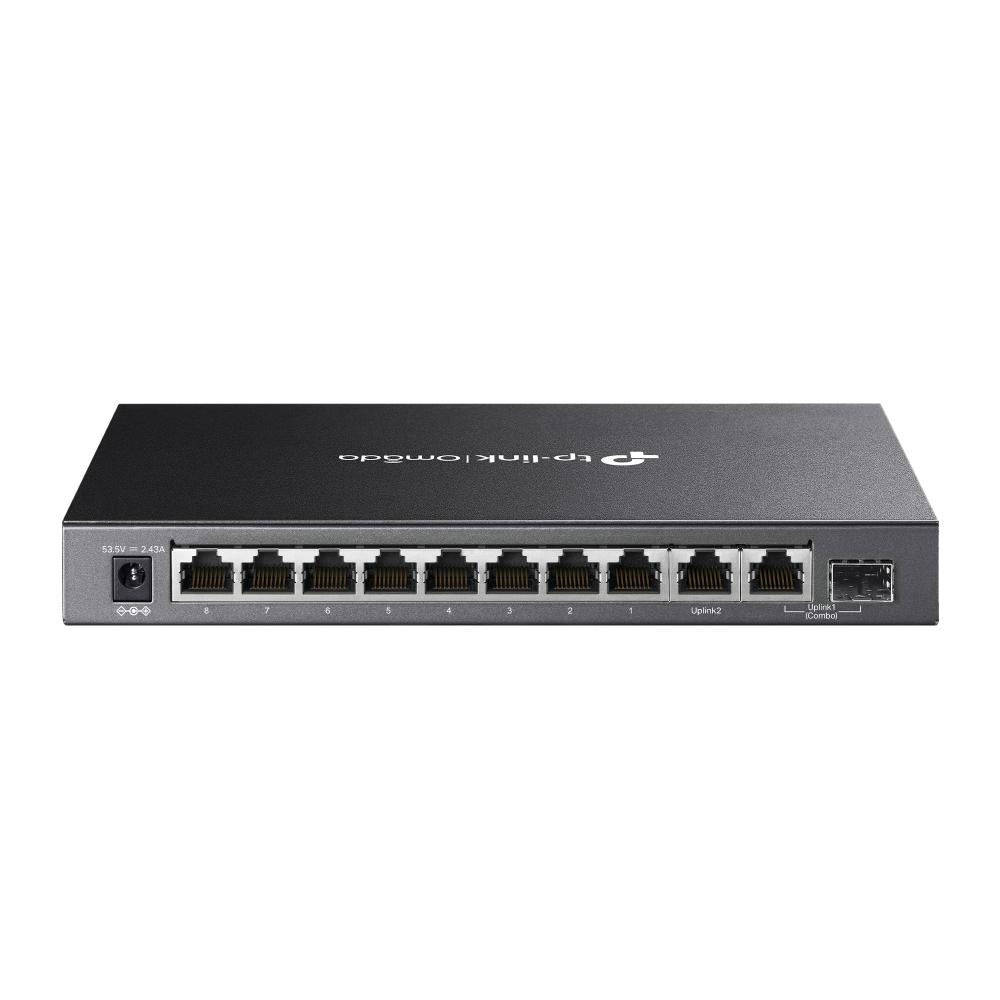

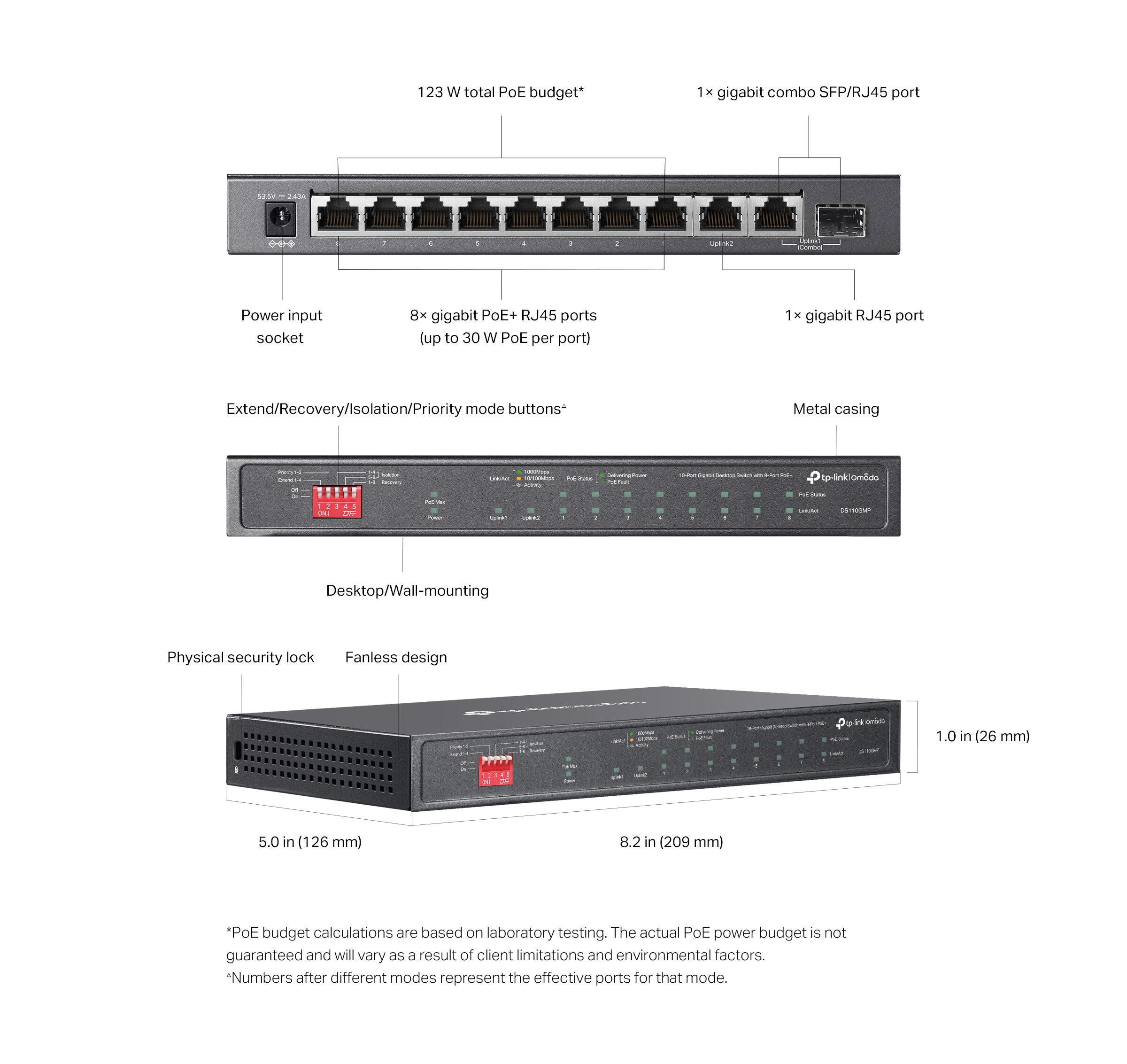

- 9× Gigabit RJ45 ports, and 1× Gigabit combo SFP/RJ45 Port
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m (820ft) data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
- Plug and Play. No configuration or central management required.†
- Fanless design reduces power consumption and works silently in its location
Specifications
Specifications DS110GMP
| HARDWARE FEATURES | |
| Interface | • 9× 10/100/1000 Mbps RJ45 Ports • 1× 1000 Mbps Combo SFP/RJ45 Port • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 123 W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max Power Consumption | • 7.93 W (220V / 50Hz with no PD connected) • 141.40 W (220V / 50Hz with 123 W PD connected) |
| Max Heat Dissipation | • 27.04 BTU/h (220V / 50Hz with no PD connected) • 482.17 BTU/h (220V / 50Hz with 123 W PD connected) |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4 • Priority Mode: Ports 1–2 • Isolation Mode: Ports 1–4/5-8 • PoE Auto Recovery: Ports 1-8 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| Certification | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
