TP-Link 5-Port 10/100/1000Mbps Desktop Switch
- SKU: LS1005G
- Manufacturer: TP-Link
- Installation Guide:Download
Product Information
TP-Link LS1005G
5-Port 10/100/1000Mbps Desktop Switch
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly.

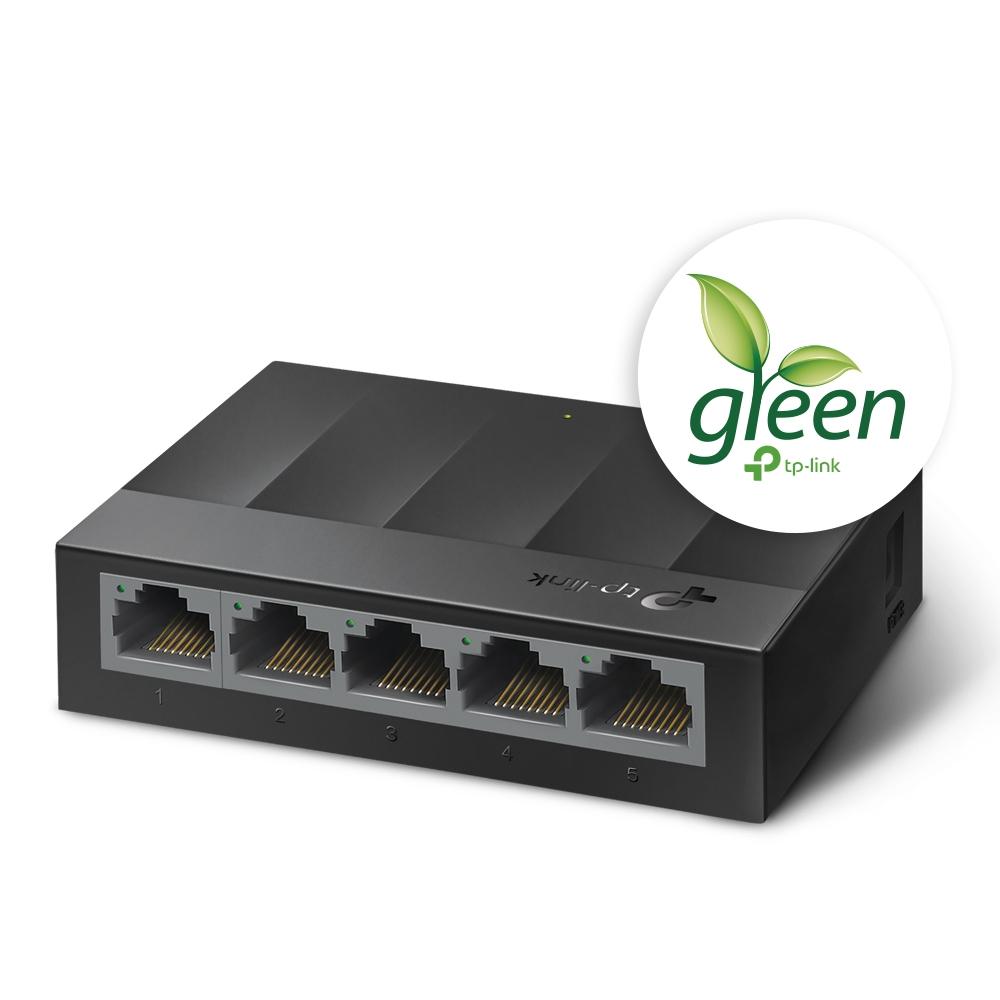

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

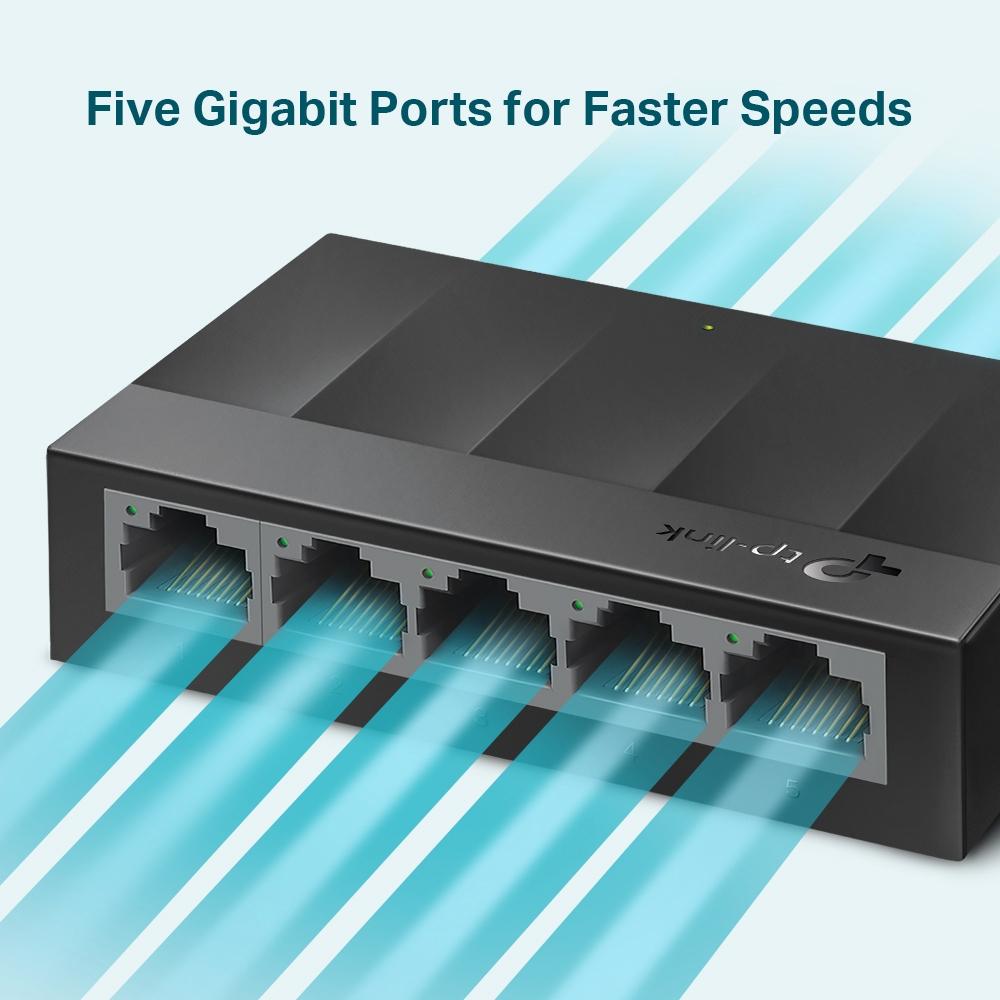

Gigabit Ports For More Reliable Speeds
Increase the reliability of your connected devices with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
Features:
- 5× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing, desktop or wall-mounting design
- Plug and play, no configuration needed

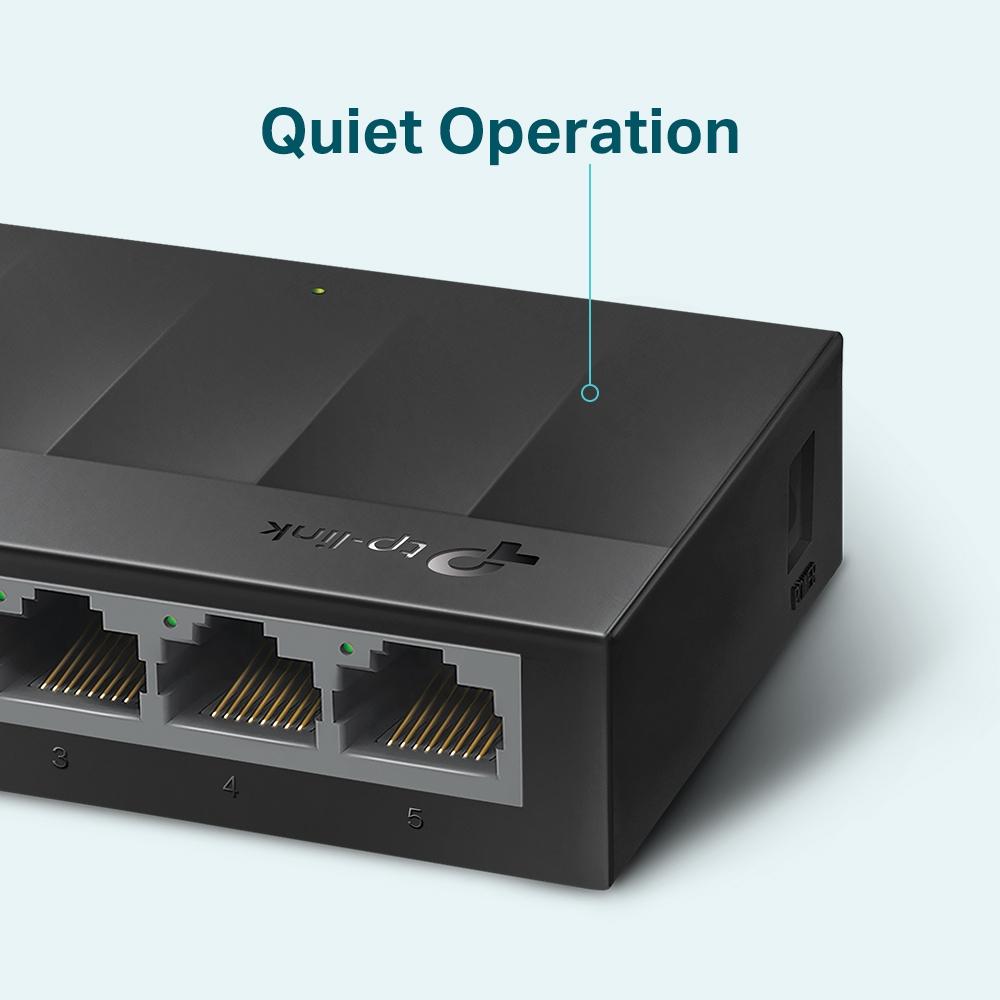

- Fanless design ensures quiet operation
Specifications
Specifications LS1005G
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x |
| Interface | 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5VDC/0.6A) |
| Dimensions ( W x D x H ) | 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm) |
| Max Power Consumption | 3.7W |
| Max Heat Dissipation | 12.6 BTU/h |
| PERFORMANCE | |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
| Advanced Features | Green Technology 802.3X Flow Control Back Pressure |
| Transfer Method | Store and Forward |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | 5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40℃~60℃ (-40℉~140℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
