TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+

(0)No Reviews yet
  • SKU: TL-SG1210MPE
US$‎119.99
7 in stock
College Station
7 In stock

Product Information

TP-Link TL-SG1210MPE

10-Port Gigabit Easy Smart Switch with 8-Port PoE+

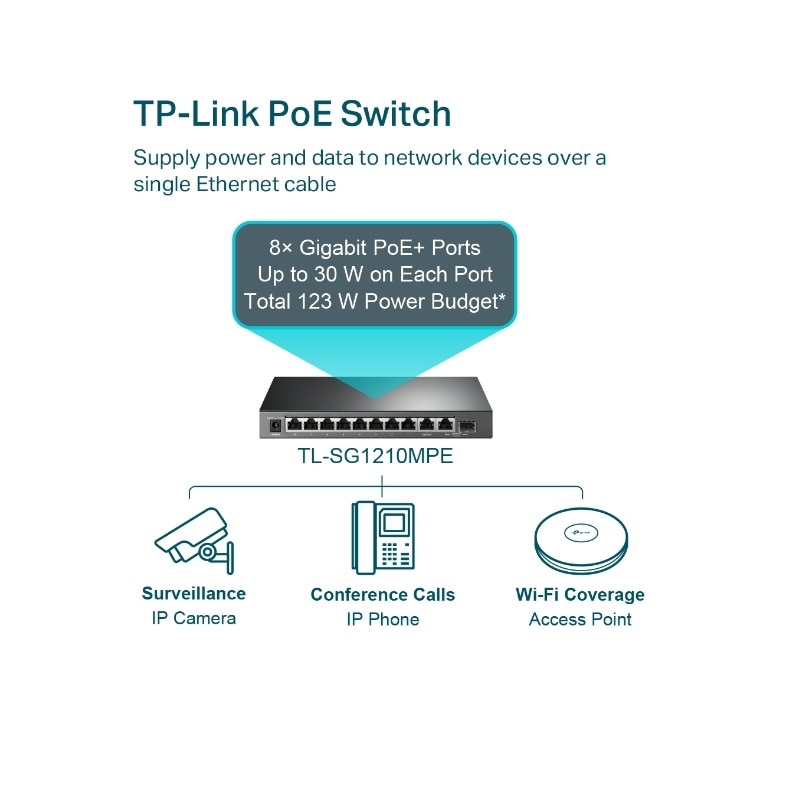

Multiple Application Scenarios

The TL-SG1210MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

Dedicated 8 PoE+ Ports (123 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 123 W PoE power budget* for the 8× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

QoS for a Lag-Free Experience

Ensures smooth traffic for latency-sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization

Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security

Helps to create network with higher security and better overall performance by dividing network into smaller groups

Making Management Easy

TL-SG1210MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1210MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

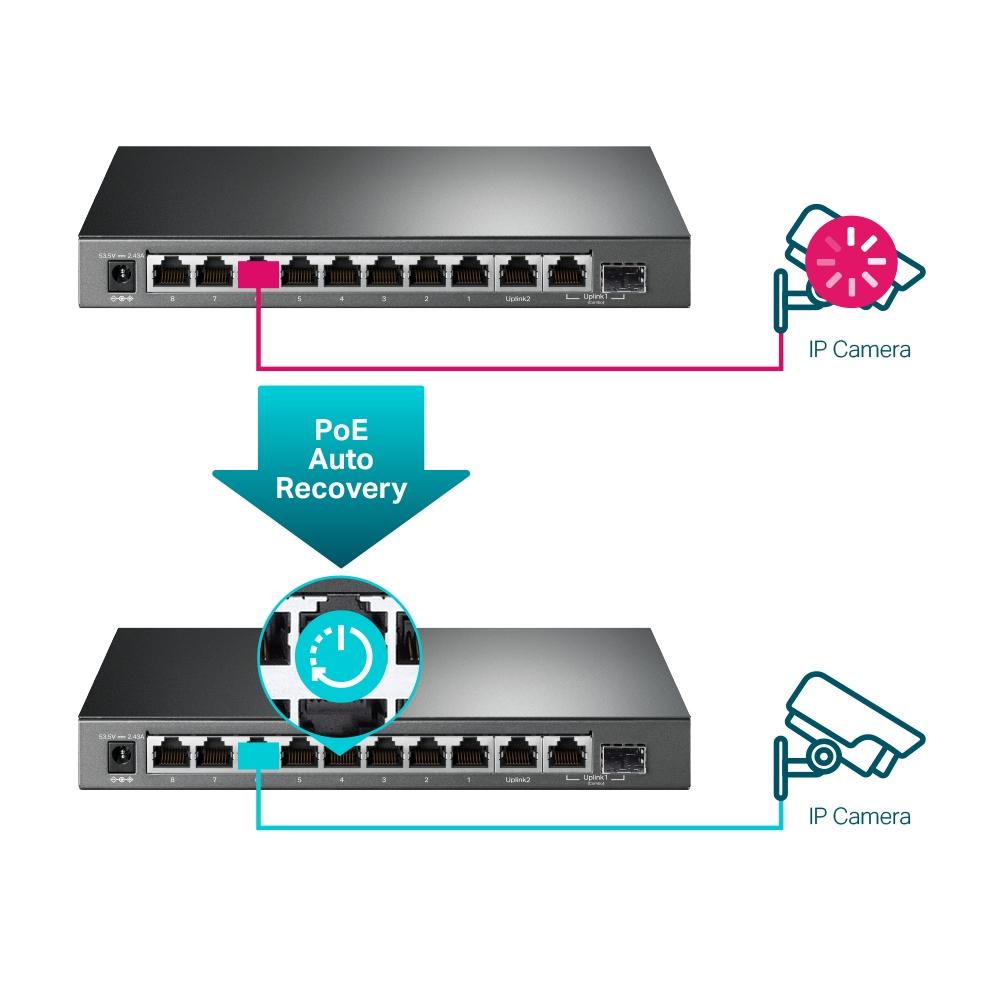

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management to Prevent Power Overload

Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 123 W. This protects the device from power overload operation.

Great Compatibility with PD Detection

Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SG1210MPE are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.


Features:

  • 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
  • Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
  • Supports PoE power up to 123 W for all PoE ports*
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise

Specifications

Specifications TL-SG1210MPE

HARDWARE
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
Interface9× 10/100/1000 Mbps RJ45 Ports
1× 1000 Mbps Combo SFP/RJ45 Port AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
Power SupplyExternal Power Adapter (Output: 53.5 VDC/2.43 A)
PoE Ports (RJ45)Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 W

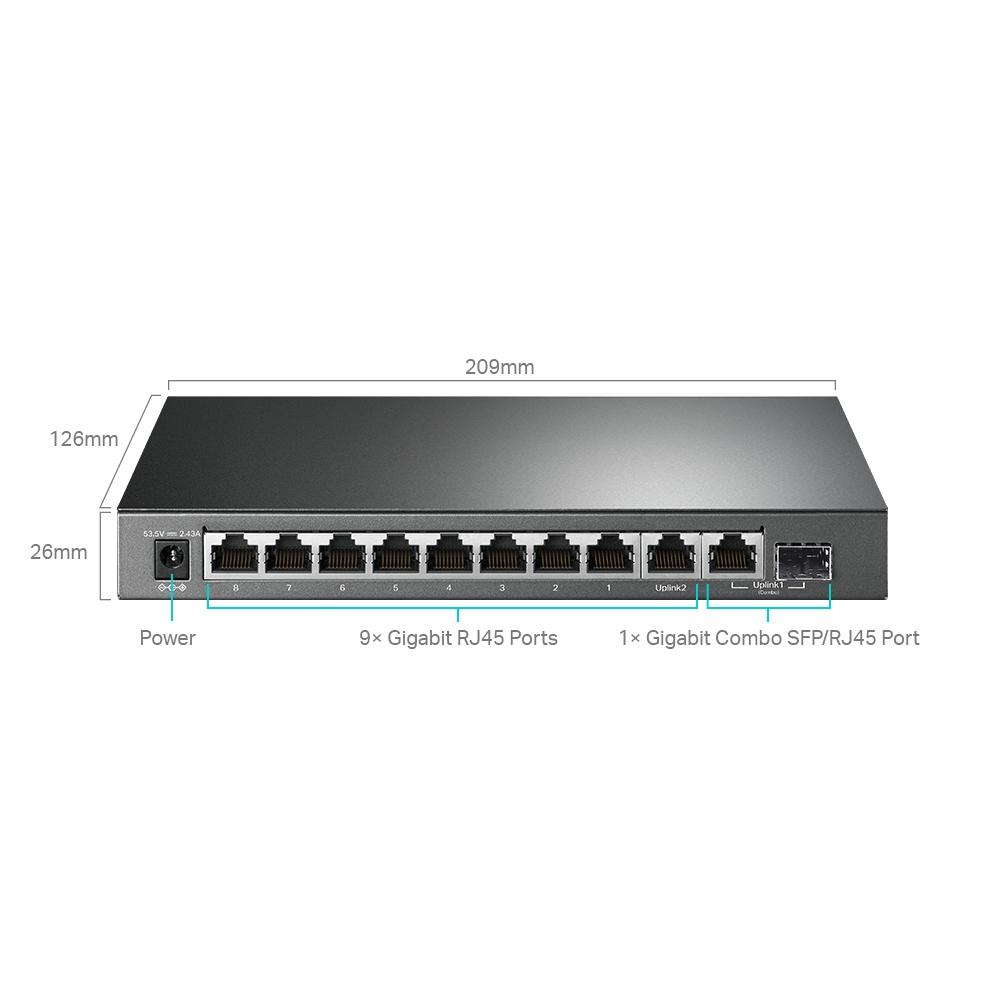

Dimensions ( W x D x H )8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption7.66 W (220V / 50Hz with no PD connected)
141.54 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation26.12 BTU/h (220V / 50Hz with no PD connected)
482.65 BTU/h (220V / 50Hz with 123 W PD connected)
PERFORMANCE
Switching Capacity20 Gbps
Packet Forwarding Rate14.88 Mpps
MAC Address Table4 K
Jumbo Frame16 KB
SOFTWARE
Quality of ServiceSupport Port-Based/802.1p/DSCP priority Support 4 priority queues
Rate Limit
Storm Control
L2 FeaturesIGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLANSupports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
PoEExtend Mode**
PoE Auto Recovery
ManagementWeb-based GUI
Easy Smart Configuration Utility
Transmission MethodStore-And-Forward
OTHERS
CertificationFCC, CE, RoHS
System RequirementsMicrosoft® Windows® for running Utility
Environment
Operating Temperature0℃~40℃ (32℉~104℉)
Storage Temperature-40℃~70℃ (-40℉~158℉)
Operating Humidity10%~90%RH non-condensing
Storage Humidity5%~95%RH non-condensing
