Tripp Lite 45U SmartRack 2-Post Open Frame Rack, 800-lb. Capacity
- SKU: SR2POST
- Manufacturer: Tripp Lite
- Data Sheet: Download
Product Information

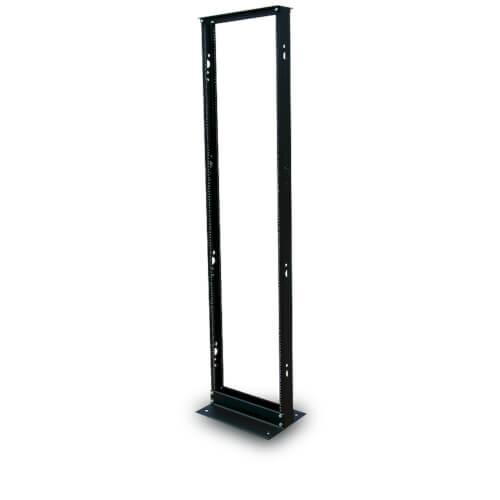

Tripp Lite SR2POST
45U SmartRack 2-Post Open Frame Rack, 800-lb. Capacity - Organize and Secure Network Rack Equipment
Tripp Lite's SR2POST 2-Post SmartRack Open Frame Rack is an economical way to accommodate 45U of rack space for 19-inch rack mount applications where space is at a premium. Its heavy-duty, aluminum construction can safely support 800 lbs (362.9 kgs) of rackmount equipment. The black, textured power coat finish makes it resistant to scratching while giving it a classic, attractive appearance.
The SR2POST is easy to install due to a self-squaring design combined with 12-24 threaded and numbered mounting holes, and bolt down provisions. Only standard hand tools are required for installation (9/16" wrench and 9/16" socket/ratchet). Multiple units can be bolted together side by side for easy expansion or customization when required. The SR2POST 2-Post SmartRack Open Frame Rack has been approved by EIA-310-D, IEC 60297-3-100, and RoHS, and is backed by a 5-year warranty.

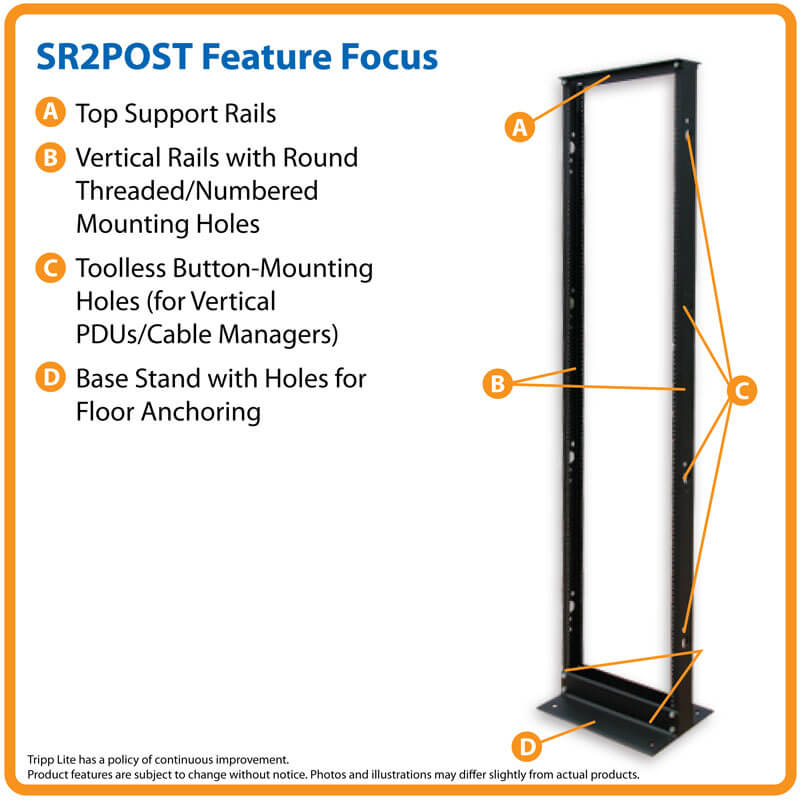

Features:
- Supports 800 lbs (362.9 kgs) of rackmount equipment
- Textured powder coat finish
- Heavy Duty Aluminum construction
- 12-24 threaded and numbered mounting positions
- Bolt down provisions
- Self squaring design
- Black finish
- Toolless button keyhole mounting slots accept PDUs and cable managers
- Easy assembly
Specifications
Specifications SR2POST
Device Compatibility | Patch Panel; Network Switch; UPS; Server |
Rack Type | Open-Frame |
PHYSICAL | |
Color | Black |
EIA Mounting Rails | 12-24 threaded and numbered vertical mounting rails |
Mounting Holes or Slots | Yes |
Maximum Device Depth (cm) | 121.92 |
Maximum Device Depth (in.) | 48 |
Maximum Device Depth (mm) | 1,219 |
Rack Height | 45U |
Shipping Dimensions (hwd / cm) | 12.45 x 16.00 x 223.52 |
Shipping Dimensions (hwd / in.) | 4.90 x 6.30 x 88.00 |
Shipping Weight (kg) | 14.97 |
Shipping Weight (lbs.) | 33.00 |
Unit Dimensions (hwd / in.) | 84 x 20.3 x 4.75 |
Unit Dimensions (hwd / cm) | 213.36 x 51.56 x 12.07 |
Unit Weight (lbs.) | 29 |
Unit Weight (kg) | 13.15 |
Weight Capacity - Stationary (kg) | 363 |
Weight Capacity - Stationary (lbs.) | 800 |
Rack Depth | Extra Deep |
Number of Vertical Mounting Rails | 2 |
STANDARDS & COMPLIANCE | |
Certifications | RoHS; EIA-310 |
Approvals | EIA-310-D, IEC 60297-3-100, RoHS |
Warranty | (Worldwide) 5-year limited warranty |
