Tycon Power Outdoor Gigabit PoE and Ethernet Extender

$‎84.50 $‎88.95
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • Availability: 1 In Stock    (updated live)
$‎84.50 $‎88.95

Specifications POE-EXT-GD-HP

PoE Input802.3af/at 44 to 57V Passive
PoE Input Pinout1,2(-) 3,6(+) or 7,8(-) 4,5(+)
PoE Output802.3af or 802.3at Class 4
PoE Output Pinout1,2 (+) 3,6 (-) Up to 25W
Data Speeds10/100/100Mbps
Self Consumption Power2.0W Typ
Operating Temperature-13 to 131°F (-25 to 55°:C)
Operating Humidity0 to 100% RH
Size7.3 x 1.8 x 1.8" (185 x 45 x 45mm)
Weight8.5oz (240g)

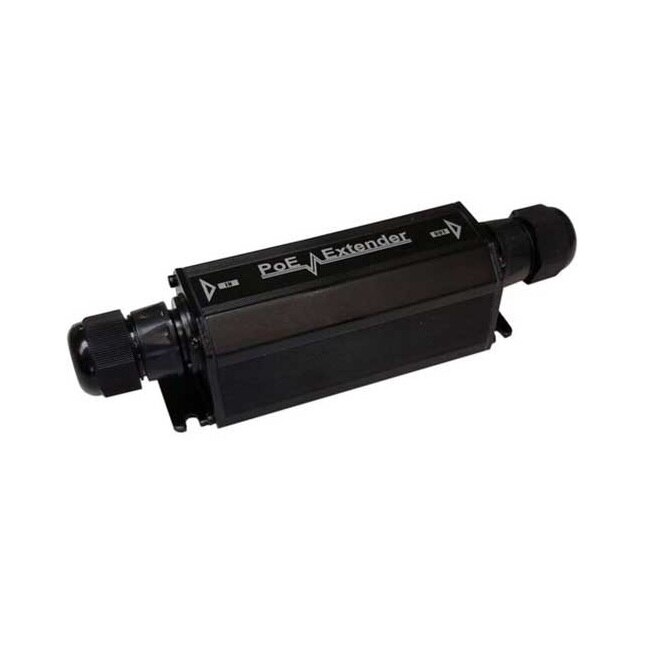

Tycon Power POE-EXT-GD-HP

Outdoor Gigabit PoE and Ethernet Extender

802.3at in/out, extends ethernet and PoE an extra 100M, 2 pair or 4 pair passive or active PoE input.

The POE-EXT-GD-HP is a high quality, high power, shielded Gigabit Ethernet and PoE extender to be able to extend Ethernet beyond the standard 100m limit. By using multiple units, Ethernet and PoE can be extended up to 300m over CAT5/CAT6 cables. The units are powered by PoE so no additional power source is required. Units can accept Mode A (Pins 1,2,3,6) or Mode B (Pins 4,5,7,8) PoE: 802.3af, 802.3at or 48V Passive PoE.

The rugged outdoor weatherproof enclosures are powder coated aluminum and are rated to IP66. The units meet outdoor temperature ratings of -25C to +55C.


  • 802.3af / 802.3at Compatible
  • 10/100/1000Mb Compatible
  • Weatherproof – Outdoor rated
  • Easy Plug and Play Operation
  • Extends PoE an additional 100m
  • Auto Link Speed, Duplex and Crossover
