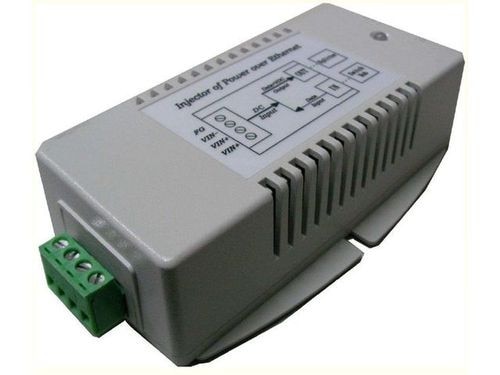

Tycon Power 10-15V DC In 56V DC Out 35W Hi Power DC to DC Converter and POE inserter

(0) No Reviews yet
  • SKU: TP-DCDC-1248G-HP
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$54.95

Specifications TP-DCDC-1248G-HP

DC Input Voltage10VDC - 15VDC
DC Output Voltage56V (Passive)
Data in & Data/POE Output ConnectorRJ45 (shielded)
Output Current (max)0.9A
Output Power (max)35W
Self Consumption Power1W
Efficiency (min)75%
Operating Temp-30 to +60deg C (-22 to +140deg F)
Operating Humidity5% - 90%
Dimensions125 x 75 x 38 mm (4.9 x 3 x 1.5 in)
Weight300g (10.6oz)

Tycon Power TP-DCDC-1248G-HP

10-15V DC IN 56V DC OUT 35W Hi Power DC to DC Converter and POE inserter

The TP-DCDC-1248G-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 48VDC Power Over Ethernet voltage from a +/-12V battery system.

The PoE inserters are Passive.

They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.

They work by supplying power on the Ethernet pins 4,5(V+) and 7,8(V-).

They have various protections for surge, short circuit and overload. The units have power output of 35W.

Applications:

  • 12V / 24V / 48C Battery Systems, Vehicle Applications
  • Wireless Access Points and Client Devices
  • IP Phone and Security Camera Systems
