Tycon Power 320W Solar Panel Kit, Pole M, Controller-cable Support 80W

(0)No Reviews yet
  • SKU: TPSK12/24-320W
US$‎959.45 US$‎1,009.95
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
8 in stock
College Station
8 In stock

Product Information

Tycon Power TPSK12/24-320W

320W Solar Panel Kit, Pole M, Controller-cable Support 80W

The TPSK series of solar panel kits come complete with high efficiency multicrystalline solar panel, side of pole/wall mounts, PWM Charge Controller and outdoor rated 12AWG cable. They are ready for quick connection to Tycon Power Systems outdoor UPSPro™ Systems or any other application requiring solar power. The panels provide excellent low light performance and long life (25years). The rugged aluminum frame and high transparency, low iron, tempered glass withstands high wind, hail and snow loading. The mounts are heavy duty aluminum with stainless steel hardware. They are a simplified design that makes them easy to install, saving precious installer time. The mounts are designed for pole mounting but can also be wall mounted. They provide quick tilt adjustment for positioning the panel to proper sun angles for summer and winter sun.

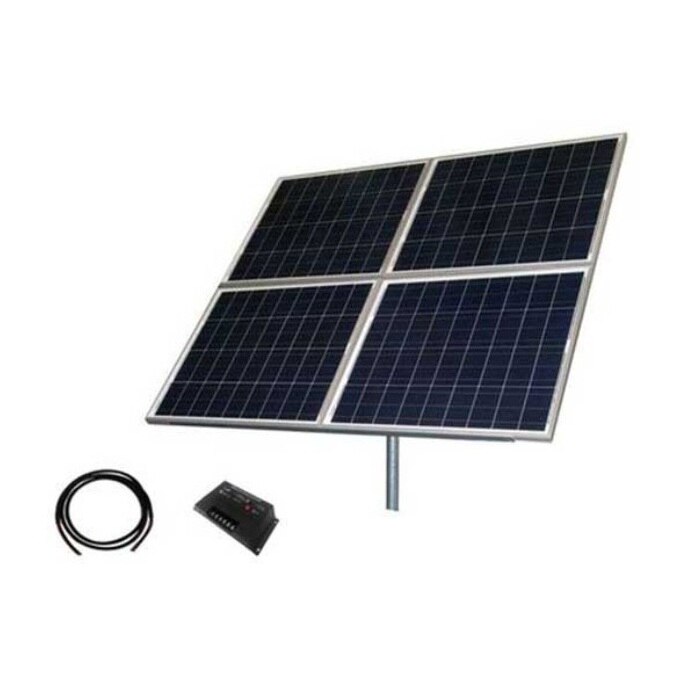

The 320W kit comes with four 80W Solar Panels which can be wired in a 12V or 24V configuration.

The 20A controller can handle the most demanding loads such as pumps, gate motors, surveillance cameras, etc.

The pole mounts can be mounted to poles up to 6" diameter or mounted to a wooden post or wall using lag bolts.


  • Complete Kit – Solar Panel, Pole/Wall Mount, Outdoor 12AWG Cable, Battery Charge Controller
  • Accommodates 2" to 4.5" dia. Pole or Wall Mount
  • Quick tilt adjustment (15° to 65°)
  • Certified for up to 110MPH Winds


Specifications TPSK12-24-320W

Solar Panel Voltage / Capacity12/24V 320W)
Solar Panel Max Current17.72A)
Solar Panel Size52 x 68")
Solar Panel Model(4) TPS-12-80W)
Pole Diameter2" to 4.5")
Pole Mount ModeTPSM-80x4-UNI)
Wind Speed Rating90mph)
Charge Controller ModelTP-SC24-20)
Cable - 2 Cond - Outdoor12AWG x 20')
Operating Temperature-40 to 85°C)
Shipping Weight36kg (79lbs))
Continuous Power with 6 Hours Peak Sun80W)
Continuous Power with 3 Hours Peak Sun40W)
