Tycon Power UPAL48-14-900

UPSPro 200W 17280VA, 24/48VDC Out, 7 GigE 802.3at/24V Pasv PoE Ports, 24/48V 2.25A Aux, 120/240VAC Input, Alum. Encl, 48V 1.4KAh Battery

The Tycon Solar UPSPro UPAL48-14-900 outdoor backup power system is designed for applications that require a flexible backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready (requires blocking diode with most panels) so a solar panel can be added as an alternate power source or to extend backup time.

Features include 24V/48VDC configurable output, an advanced 60A MPPT battery charge controller to protect against over-charging or overdischarging of the valve regulated sealed lead acid pure lead carbon AGM batteries. The ground mount aluminum enclosure has multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They have thermostatically controlled power ventilation which turns on automatically when inside temperature exceeds 45°C.

There is generous space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There are mounting struts incorporated inside the enclosure to be able to mount DIN Rails or a flat metal or plywood plate. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.


Features:

  • 7 Gigabit 802.3at/ 24V Passive PoE Input
  • Weatherproof, UV resistant, outdoor enclosure
  • Powered from AC mains power and/or Solar
  • Interior space for customer electronics
  • Ground Mounting
  • Isolates Customer Equipment from Power Line Surges
  • vHigh Quality GEL Sealed Lead Acid Batteries
  • Advanced battery charge controller protects against overcharge and over discharge

Applications:

  • Wireless Base Stations and Clients
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Remote Sensors
  • Mission critical outdoor power
  • Backup Power Systems

Specifications

Specifications UPAL48-14-900

Battery Voltage (DC)48VDC
Input Voltage (AC)120/240VAC, 50/60Hz, 5A Max.
Capacities (Amp Hour)1440Ah
Avail. Storage Capacity (Watt Hour)17,7280Whr
Max. Output Power900W
Suggested Maximum Load750W
Maximum Instantaneous Load30A 500msec

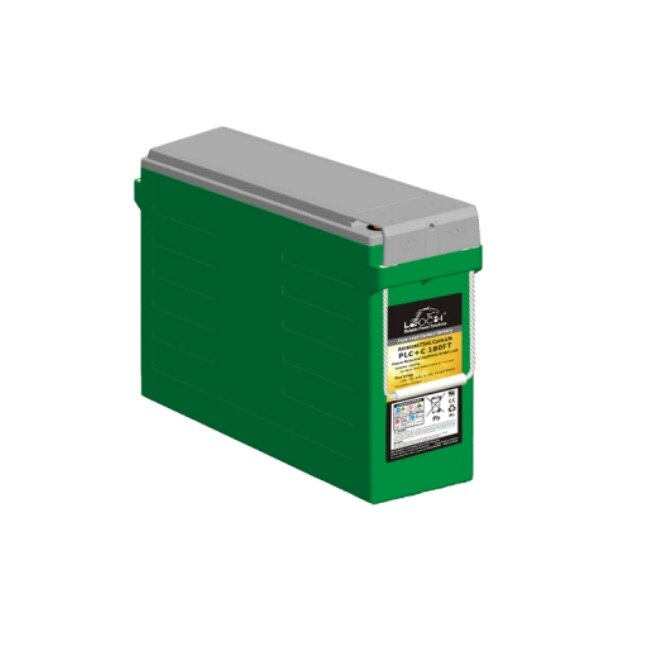

Battery TypeValve Regulated Sealed Lead Acid / GEL
Battery Life5+ years
Battery Cable Fuse40A 250V Blade Fuse

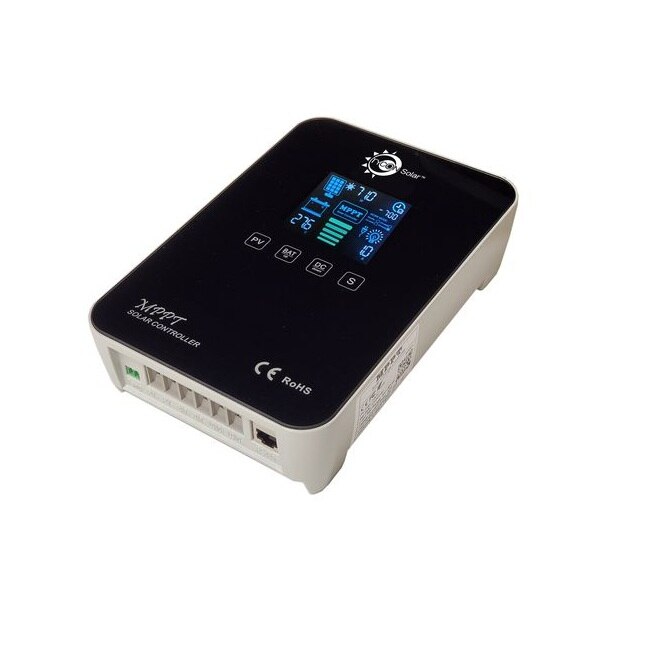

Controller Type60A MPPT Solar Controller with Status Display and 30A Load with on/off switch
Maximum Solar Panel Size1560W @ 24V Battery Config, 3120W @ 48V Battery Config
Controller Display StatusBattery Voltage, Charging Voltage, Charging Current, Load Current, Temperature
Bulk Charge28.8V / 57.6V
Float Charge27.5V / 55.2V
Over-discharge protection22V / 44V
Over-discharge recovery voltage25.2V / 50.4V
Controller Self Consumption<1W

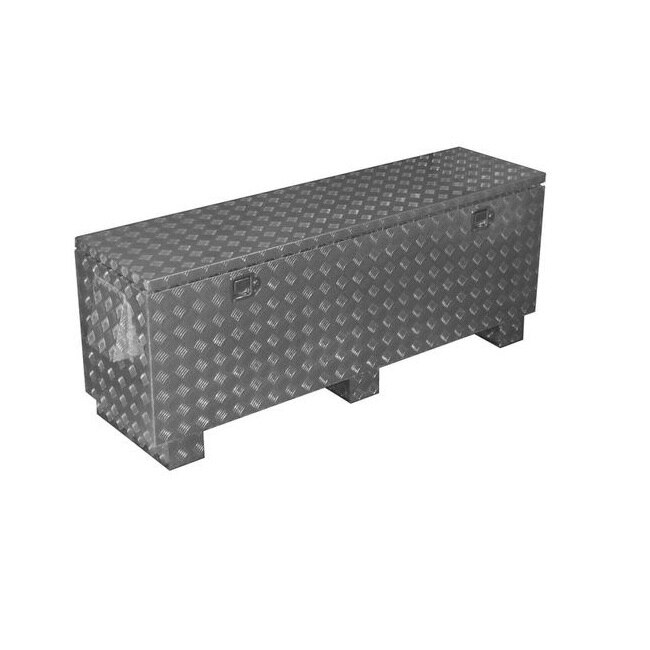

Enclosure TypeGround Mount, Key Lock, Aluminum Diamond Plate
Enclosure Size65” x 28” x 18” (1651 x 711 x 457mm)
Operating Temperature-40°C to +65°C (-40°F to 149°F)
System Weight (without batteries)85lbs (35kg)
Battery Weight8 x 127lbs (58kg)
CertificationsIndividual components used have CE Certifications.
Warranty3 Years
