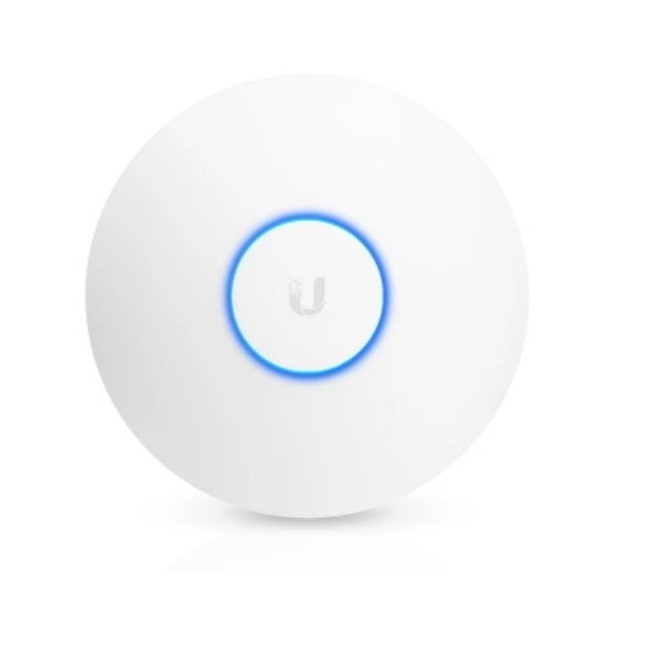

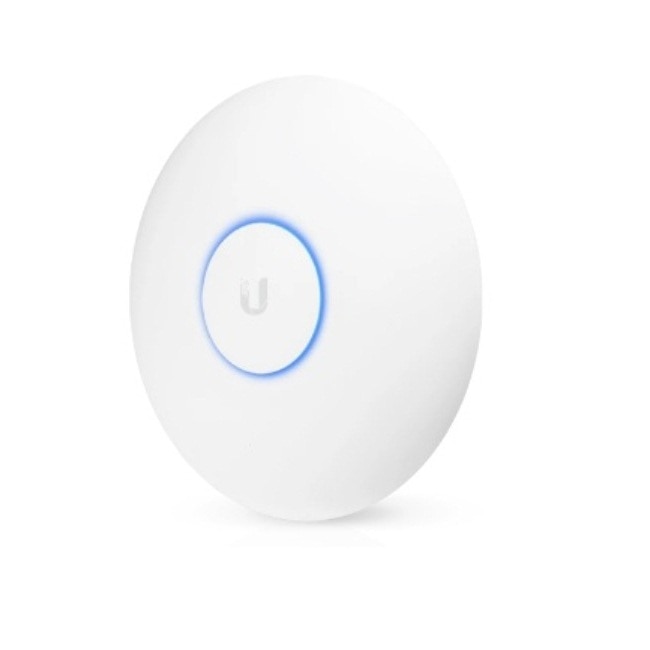

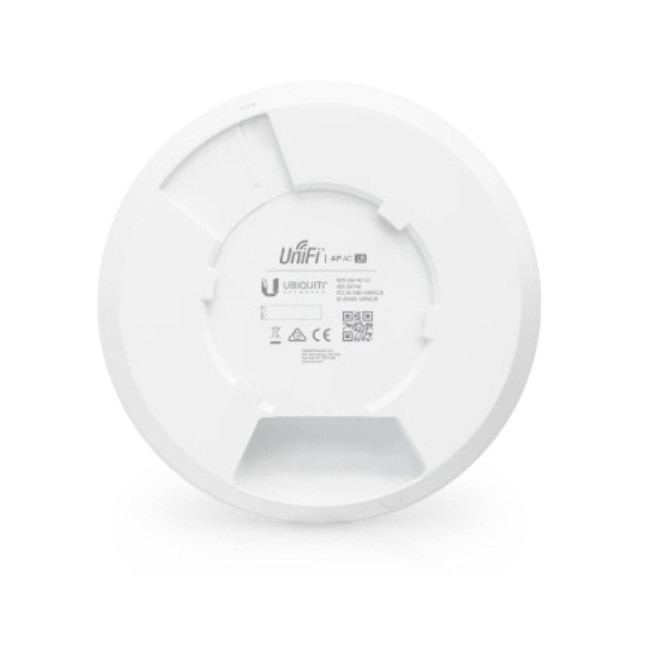

Ubiquiti UniFi AC 802.11ac Long Range Access Point

(0) No Reviews yet
  • SKU: UAP-AC-LR-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: 4 In Stock (updated live)
$96.35 $109.00

(click to select)

Open Box Items

Dimensions175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70")
Weight
With Mounting Kits
240 g (8.5 oz)
315 g (11.1 oz)
Networking Interface(1) 10/100/1000 Ethernet Port
ButtonsReset
Port(1) USB 2.0 Port
Antenna(1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi
Wi-Fi Standards802.11 a/b/g/n/ac
Power MethodPassive Power over Ethernet (24V),
(Pairs 4, 5+; 7, 8 Return)
Power Supply24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption6.5W
Maximum TX Power
2.4GHz
5GHz

24 dBm
22 dBm
BSSIDUp to Four per Radio
Power SaveSupported
Wireless SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
CertificationsCE, FCC, IC

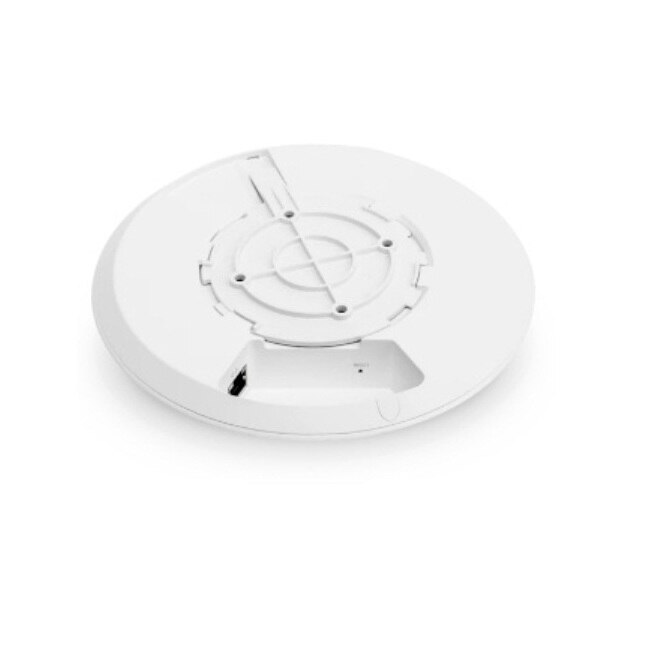

MountingWall/Ceiling (Kits Included)
Operating Temperature-10 to 70° C (14 to 158° F)
Operating Humidity5 to 95% Noncondensing

VLAN802.1Q
Advanced QoSPer-User Rate Limiting
Guest Traffic IsolationSupported
WMMVoice, Video, Best Effort, and Background
Concurrent Clients200+

StandardData Rates
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps

UAP-AC-LR UniFi AC 802.11ac Long Range Access Point

The UniFi AC LR AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for long-range deployment of high‑performance wireless networks.

Innovative Antenna Design

The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.

Designed for Optimal RF Performance

The newly redesigned UniFi Controller optimizes RF performance:

Scalable Enterprise Wi-Fi Management

The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
