Ubiquiti Airmax 4.9-5.9GHZ Mid-Gain Base Station 17dBi Antenna, Dual-Pol 90-Degree 17DBI

(0)No Reviews yet
  • SKU: AM-5G17-90
  • Manufacturer: Ubiquiti Networks
  • Datasheet: Download
  • Quick Start Guide:Download

Out of Stock

5 in stock
Mississippi
5 In stock

Product Information

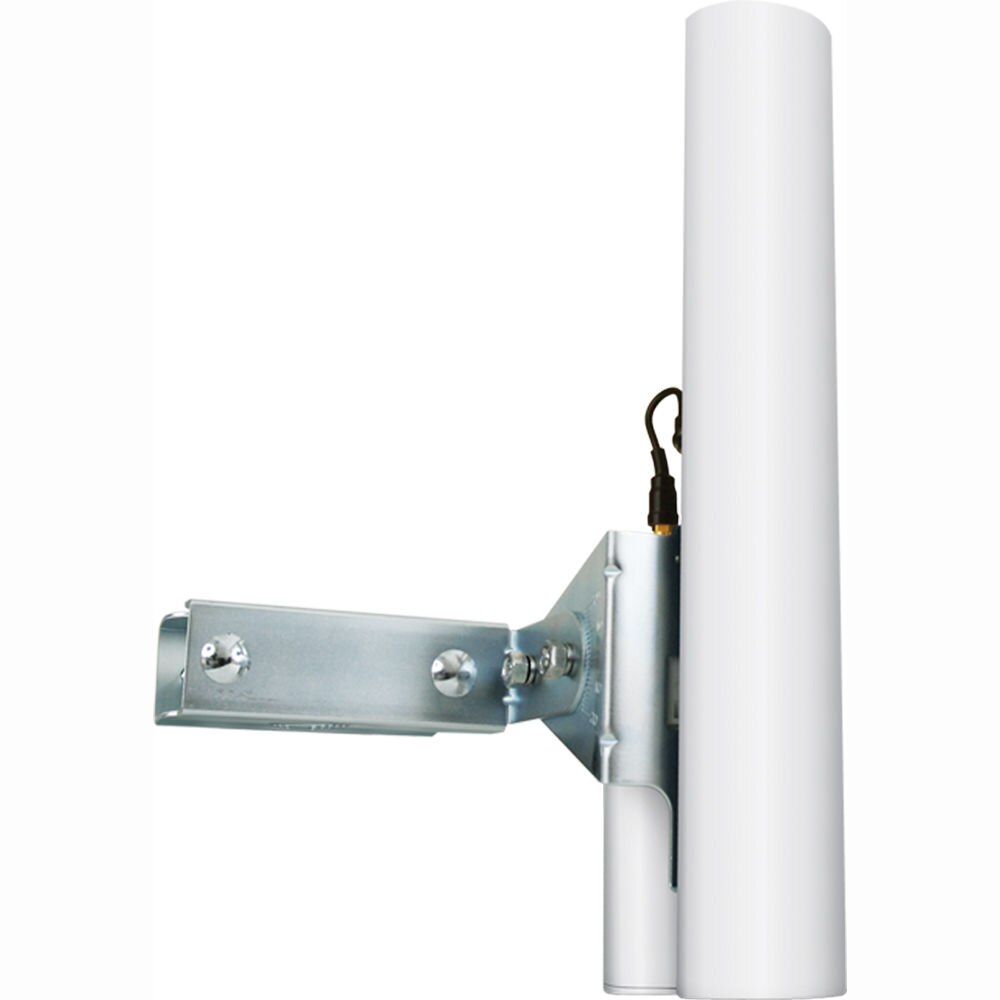

Ubiquiti Networks AM-5G17-90

Ubiquiti Airmax 4.9-5.9GHZ Mid-Gain Base Station 17dBi Antenna, Dual-Pol 90-Degree 17DBI

AirMax BaseStation 5GHz Sector World Class Antenna Designs Patent-pending next-generation technology achieves gain, cross-pol isolation, and beam-shaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

Rocket M Seamlessly Integrates with AirMax BaseStation Sectors Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Specifications

Specifications AM-5G17-90

Frequency Range4.90-5.90 GHz
Gain16.1-17.1dBi
PolarizationDual Linear
Cross-pol Isolation22dB min
Max VSWR1.5:1
Hpol Beamwidth (6dB)72 deg.
Vpol Beamwidth (6dB)93 deg.
Elevation Beamwidth8 deg.
Electrical Downtilt4 deg.
