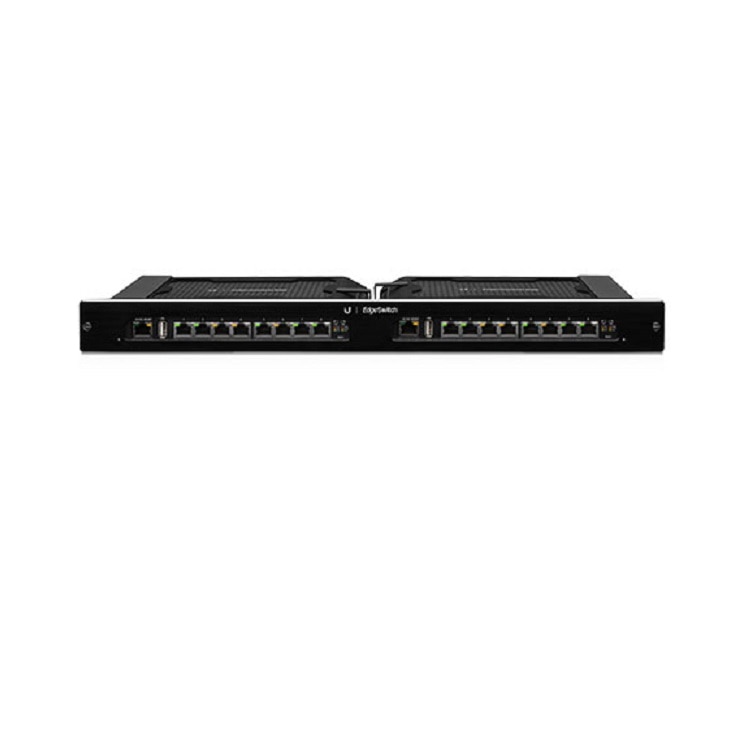

Ubiquiti ES-16XP

EdgeMAX EdgeSwitch 16XP, Rack-Mount PoE

The Ubiquiti EdgeMAX EdgeSwitch 16XP, Rack-Mount PoE is an advanced gigabit PoE managed switch. Ubiquiti introduces the Advanced Power over Ethernet Switches, EdgeSwitch XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-to use EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non‑PoE devices can be connected.EdgeSwitch XP is available in multiple versions to meet your deployment needs.


  • 16 Gigabit PoE Ports
  • 24V/48V Configurable Passive PoE
  • 300 W Power
  • EdgeSwitch XP Configuration Interface
  • 1U Rack-Mount Form Factor


Specifications ES-16XP

Dimensions480 x 44.5 x 186 mm
Weight3.95 kg
MountingIntegrated 1U Rack-Mount
Power Input110-120VAC / 210-230VAC
Max. Power Consumption150 W
PoE Out Voltage Range45-48VDC / 22-24VDC
Max. PoE Wattage Per Data Port11.5 W (24 V), 23 W (48V)
ESD Rating24 kV Air / 24 kV Contact
PoE MethodPassive
USB Port2.0 Type A (Reserved for Future Use)
ProcessorMIPS 24K, 400 MHz
System Memory64 MB
Code Storage8 MB
CertificationsCE, FCC, IC
Operating Temperature-25 to 55°C (-13 to 131° F)
Operating Humidity90% Non-Condensing
Management Port N/A
Data Ports Off/24V/48V
Management Port Power/Link/Activity
Data Ports PoE, Speed/Link/Activity
Management Port (1) 10/100 Ethernet Port
Data Ports (8) 10/100/1000 Ethernet Ports
