Ubiquiti Edgemax Edgeswitch 5XP, PoE

(0) No Reviews yet
  • SKU: ES-5XP
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • User Guide: Download
  • Availability: 3 In Stock (updated live)
$105.00

Specifications ES-5XP

Dimensions 197 x 87.5 x 27.3 mm
Weight 250 g
Power Input 24VDC, 2.5A Power Adapter (Included)
Max. Power Consumption 60 W
PoE Out Voltage Range 22-24VDC
Max. PoE Wattage Per Data Port 11.5 W
ESD Rating 24 kV Air / 24 kV Contact
PoE Method Passive
Button Reset
USB Port 2.0 Type A (Reserved for Future Use)
Processor MIPS 24K, 400 MHz
System Memory 64 MB
Code Storage 8 MB
Certifications CE, FCC, IC
Wall-Mount Yes
Operating Temperature -25 to 55°C (-13 to 131° F)
Operating Humidity 90% Non-Condensing
PoE Configurable Per Port
Management Port N/A
Data Ports Off/24V
LEDs Per Port
Management Port Power /Link/Activity
Data Ports PoE, Speed/Link/Activity
Networking Interfaces
Management Port (1) 10/100 Ethernet Port
Data Ports (5) 10/100/1000 Ethernet Ports

Ubiquiti ES-5XP

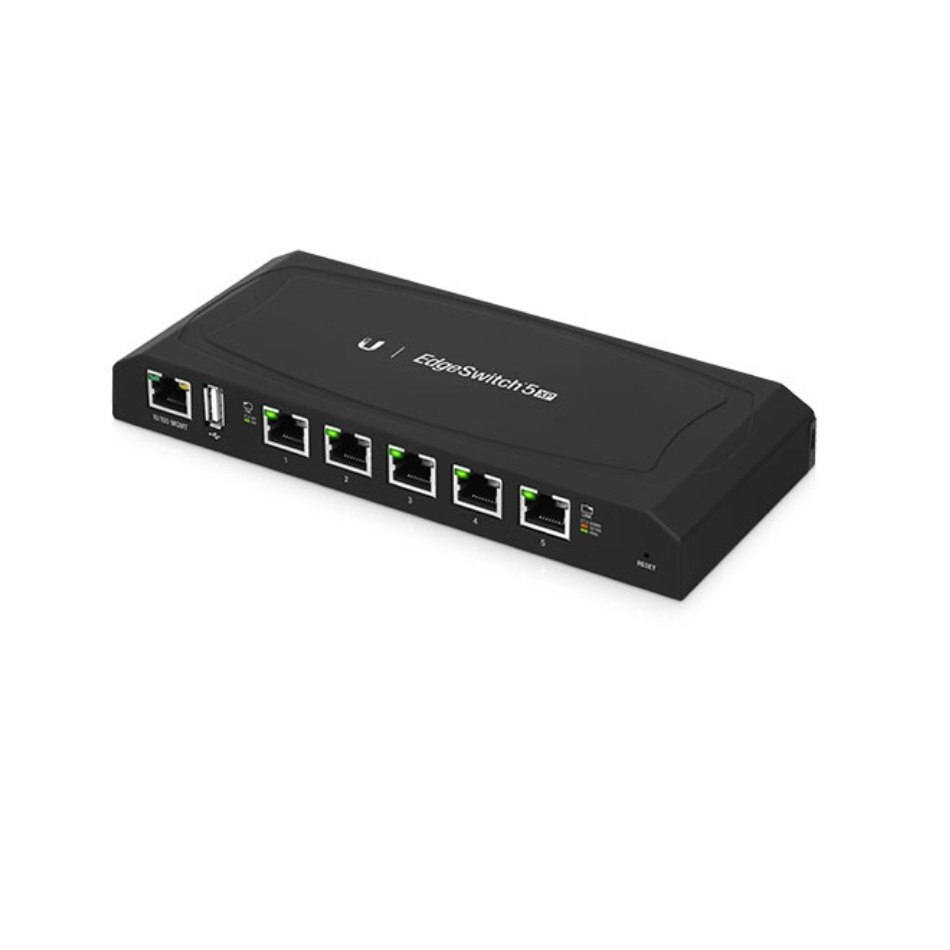

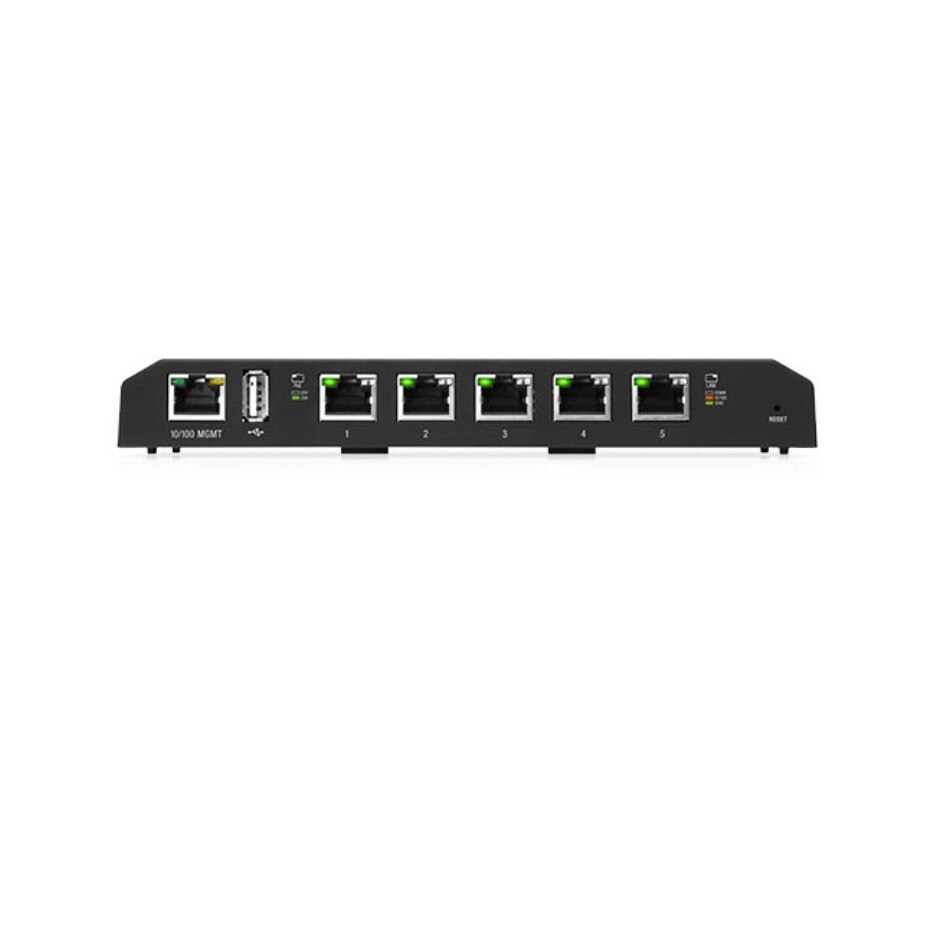

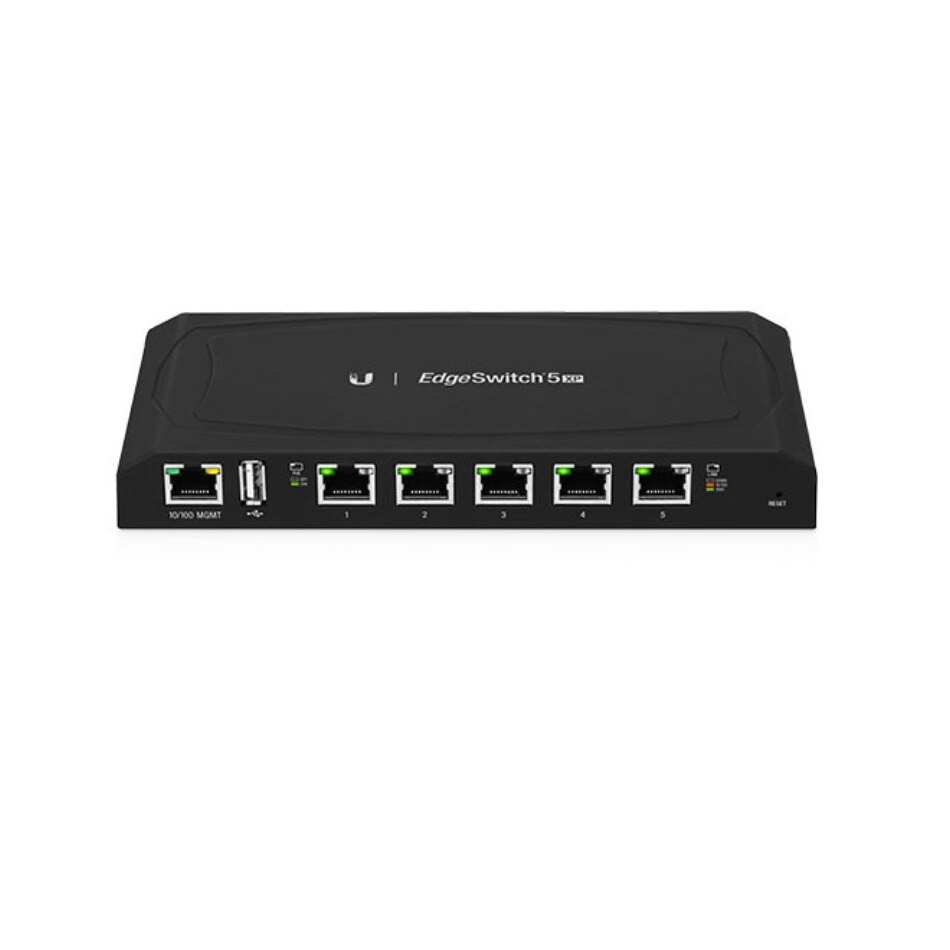

Ubiquiti Edgemax Edgeswitch 5XP, PoE

The Ubiquiti EdgeMAX EdgeSwitch 5XP, PoE is an advanced gigabit PoE managed switch. Ubiquiti introduces the Advanced Power over Ethernet Switches, EdgeSwitch XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-to use EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non‑PoE devices can be connected.EdgeSwitch XP is available in multiple versions to meet your deployment needs.

EdgeSwitch 5XP is a cost‑effective, 5-port Gigabit switch with 24V PoE support.


Features:

  • 5 Gigabit PoE Ports
  • 24V Configurable Passive PoE
  • EdgeSwitch XP Configuration Interface
  • Wall-Mountable
