Ubiquiti Networks Camera Junction Box
- SKU: Camera Junction Box
$49.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

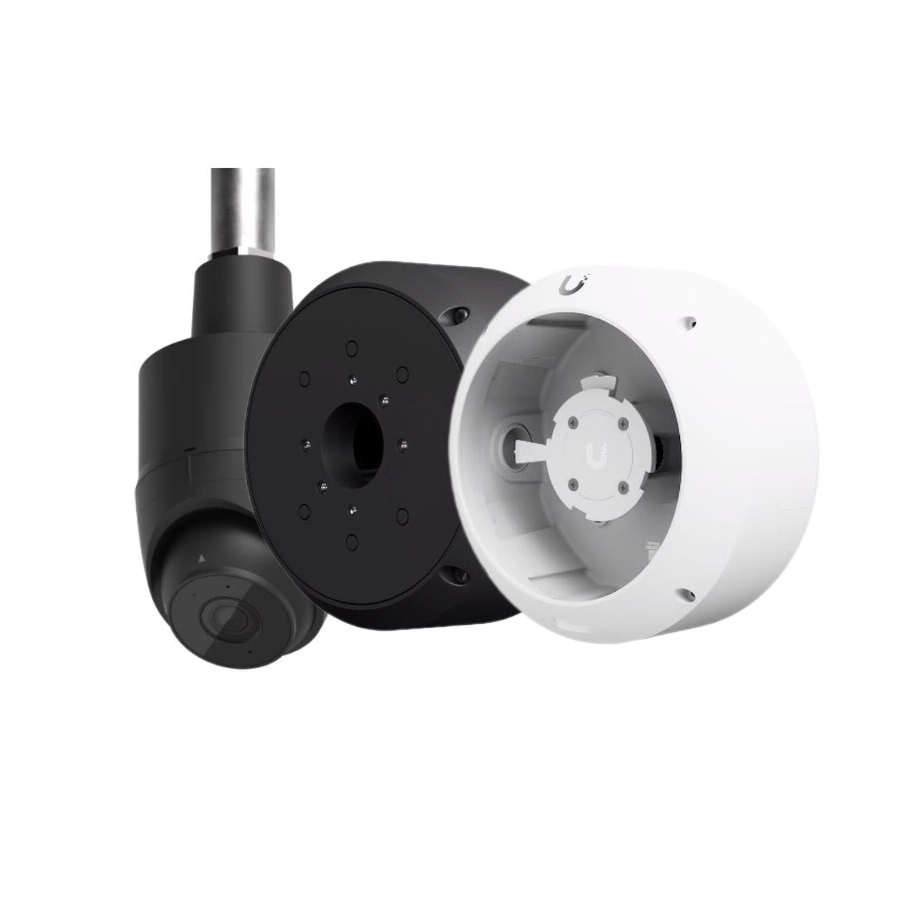

Ubiquiti Networks Camera Compact Junction Box
Tamper-resistant junction box for compact UniFi Dome and Turret cameras that enhances mounting durability, aesthetics, and ease of maintenance.
Features:
- Supports flat surface, pole and pendant mounting
- Includes side and rear 3/4" conduit entrances
- Compatibility: UVC-AI-DSLR, UVC-AI-Pro, UVC-G4-PRO, UVC-AI-Bullet, UVC-G5-Pro, UVC-G5-Bullet, UVC-G5-Dome, UVC-G5-Dome-Ultra, UVC-G5-Turret-Ultra, UVC-G4-BULLET, UVC-G4-DOME

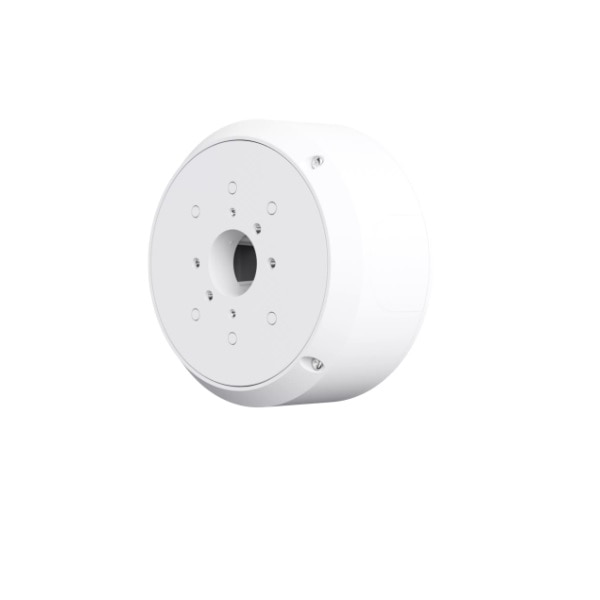

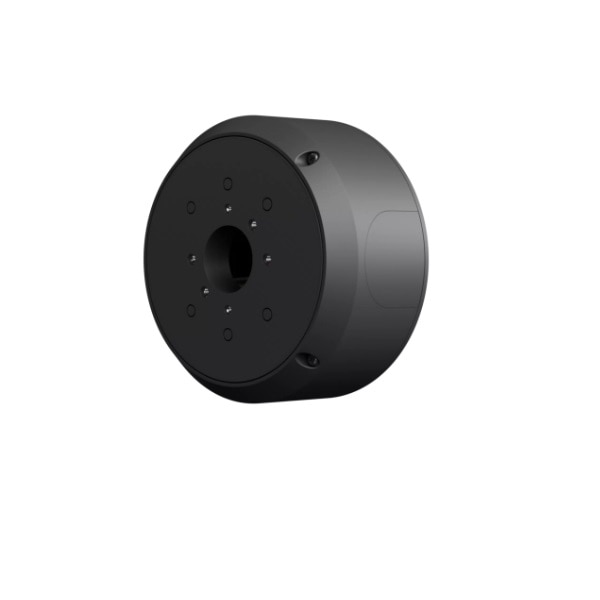

Ubiquiti Networks Camera Junction Box
Tamper-resistant junction box for UniFi Bullet, Dome, and Turret cameras that enhances mounting durability, aesthetics, and ease of maintenance.
Features:
- Supports flat surface, pole and pendant mounting
- Includes side and rear 3/4" conduit entrances
- Compatibility: UVC-G5-Dome-Ultra, UVC-G5-Turret-Ultra

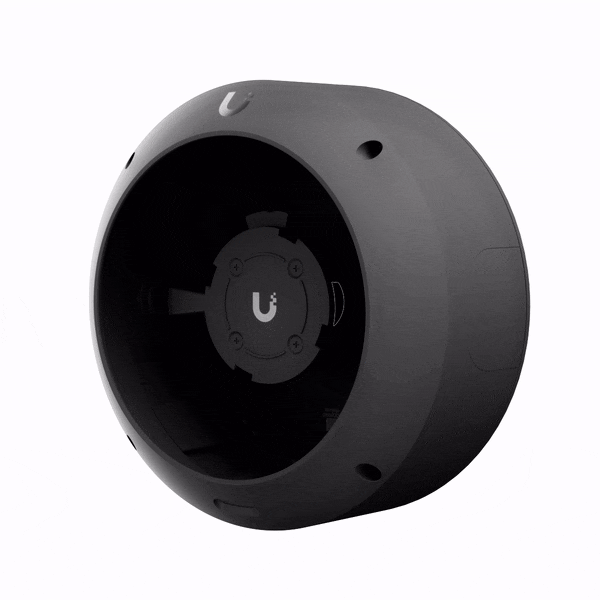

Ubiquiti Networks AI 360 Junction Box
Tamper-resistant junction box for AI 360 that enhances mounting durability, aesthetics, and ease of maintenance.
Features:
- Supports flat surface, pole and pendant mounting
- Includes side and rear 3/4" conduit entrances
- Compatibility: UVC-AI-360
Specifications
Specifications Camera Compact Junction Box
| Mechanical | |
| Dimensions | Longer holder: 87 x 147 x 49 mm (3.4 x 5.8 x 1.9") Shorter cap: 87 x 110 x 49 mm (3.4 x 4.3 x 1.9") |
| Weight | Box: 270 g (9.5 oz) Longer holder: 125 g (4.4 oz) Shorter cap: 80 g (2.8 oz) |
| Enclosure materials | Aluminum alloy, polycarbonate |
| Mounting material | Aluminum alloy |
| Pole Mount Diameter(Torque:Nm) | F1.5"~2" (metal strap torgue: 6Nm) |
| Compatibility | UVC-G5-Dome-Ultra UVC-G5-Turret-Ultra |
Specifications Camera Junction Box
| Dimensions | Ø140.4 x 59.7 mm (Ø5.5 x 2.4") |
| Weight | Junction box: 470 g (1.03 lbs) |
| Mount Holder | 66 g (0.14 lbs) |
| Deco ring | 17g (0.037 lbs) |
| Pole mount | 62 g (0.13 lbs) |
| Enclosure materials | Aluminum alloy, polycarbonate |
| Mounting material | Aluminum alloy |
| Pole mount diameter | 1.5"~2" (metal strap torgue: 6Nm) |
| Threaded outlets | G3/4" |
| Compatibility | UVC-G4-Dome |
Specifications AI 360 Junction Box
| Dimensions | Ø173.2 x 76 mm (Ø6.8 x 3") |
| Weight | 720 g (1.6 lb) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mount material | Aluminum alloy |
| Threaded outlets | 3/4" |
| Compatibility | UVC-AI-360 |
| Resistance | IK08 |
| Weatherproofing | IPX6 |
