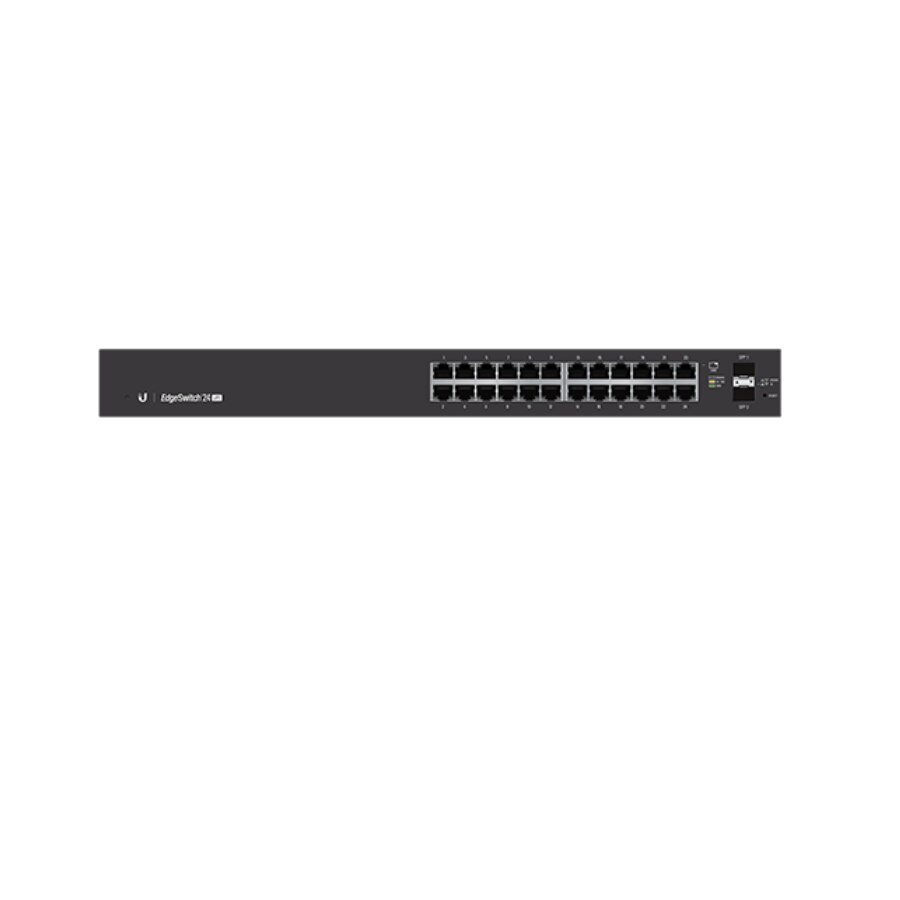

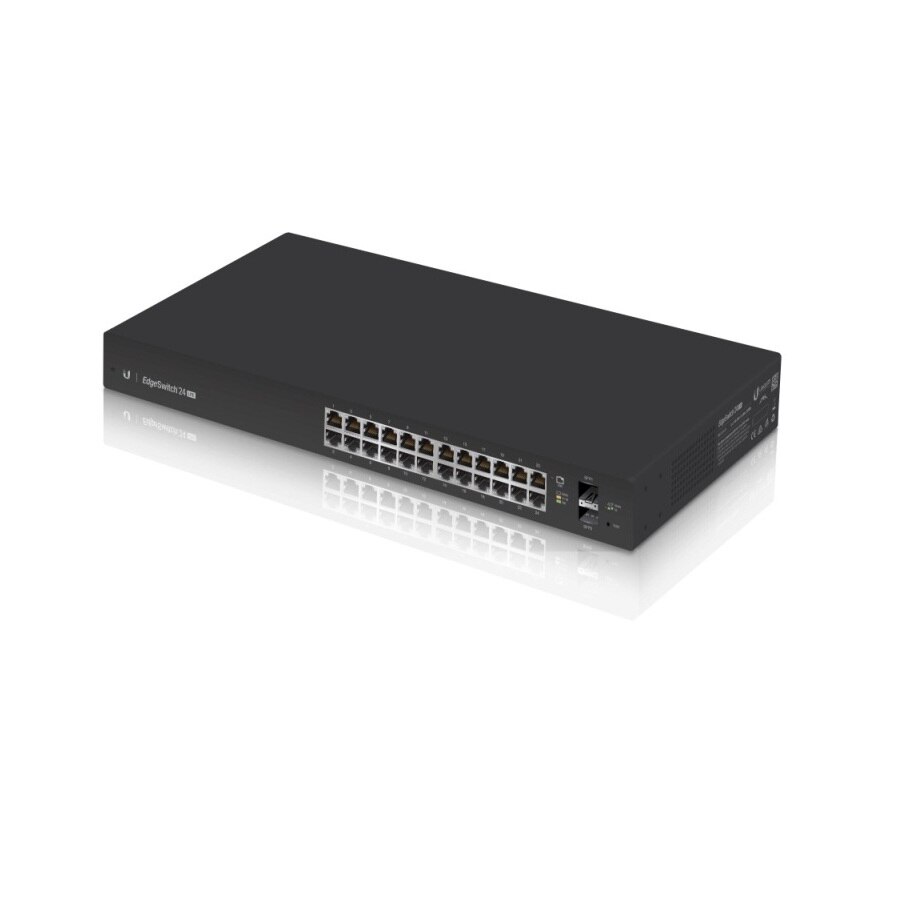

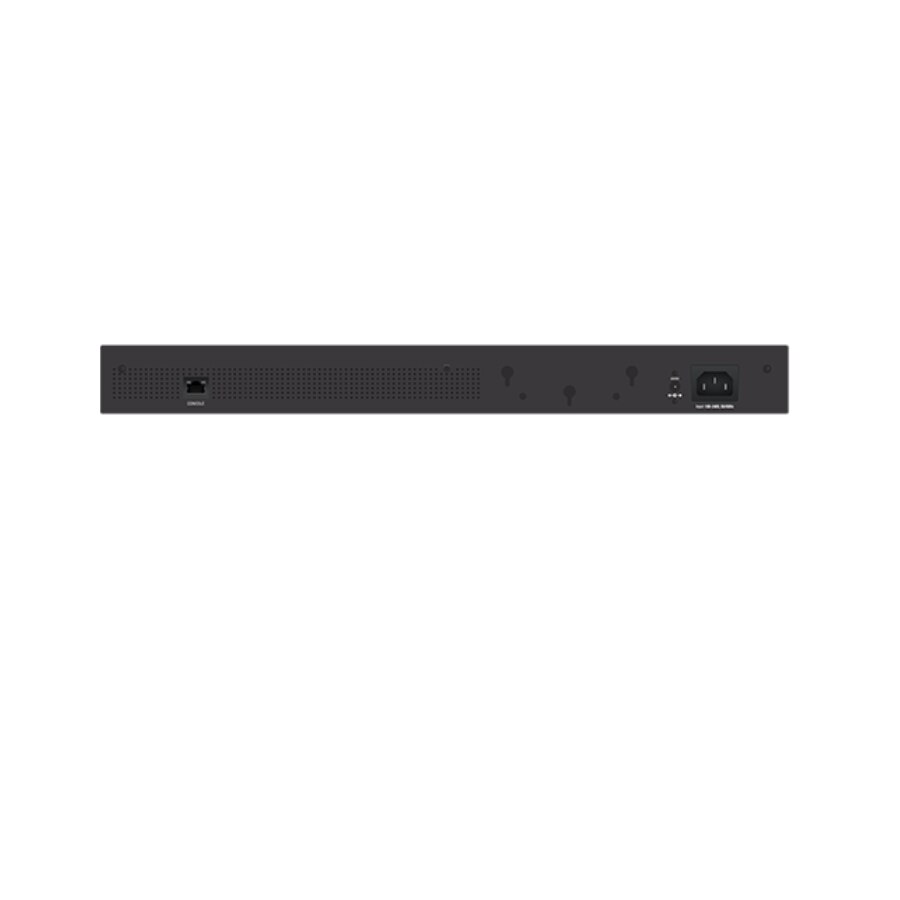

Ubiquiti EdgeSwitch 24 Lite 24-Port Managed Gigabit Switch with SFP

(0) No Reviews yet
  • SKU: ES-24-LITE
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick Start Guide: Download
  • Availability: 3 In Stock (updated live)
$240.00

Specifications ES-24-LITE

Dimensions443 x 43 x 286 mm (17.44 x 1.69 x 8.70")
Weight
Rack-Mount Brackets Included
Rack-Mount Brackets Excluded
2.6 kg (5.7 lb)
2.51 kg (5.53 lb)
Total Non-Blocking Throughput26 Gbps
Switching Capacity 140 Gbps52 Gbps
Forwarding Rate38.69 Mpps
Max. AC Power Consumption25W
Power Method
AC
DC

100-240VAC/50-60 Hz, Universal Input
DC 25W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power SupplyAC/DC, Internal, 25W DC
LEDs Per Port
Serial Console Port
RJ45 Data Ports
SFP+/SFP Data Ports

N/A
Speed/Link/Activity
Speed/Link/Activity
Networking Interfaces(24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface(1) RJ45 Serial Port, Ethernet In/Out Band
CertificationsCE, FCC, IC
RackmountYes, 1U High
ESD/EMP ProtectionAir: ±24 kV, Contact: ±24 kV
Operating Temperature-5 to 40° C (23 to 104° F)
Operating Humidity5 to 95% Noncondensing
Shock and VibrationETSI300-019-1.4 Standard

Ubiquiti Networks ES-24-LITE

EdgeSwitch 24 Lite 24-Port Managed Gigabit Switch with SFP

Powerful Enterprise Switch Models

The EdgeSwitch™ Lite simultaneously processes traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for the fanless, 24-port models and up to 70 Gbps for the 48-port models.

Enterprise-Class Features

The EdgeSwitch™ Lite supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Optical Fiber Backhaul

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
