Ubiquiti Managed PoE+ Gigabit Switch with SFP
- SKU: ES-8-150W
Product Information
Ubiquiti Networks ES‑8‑150W
Managed PoE+ Gigabit Switch with SFP

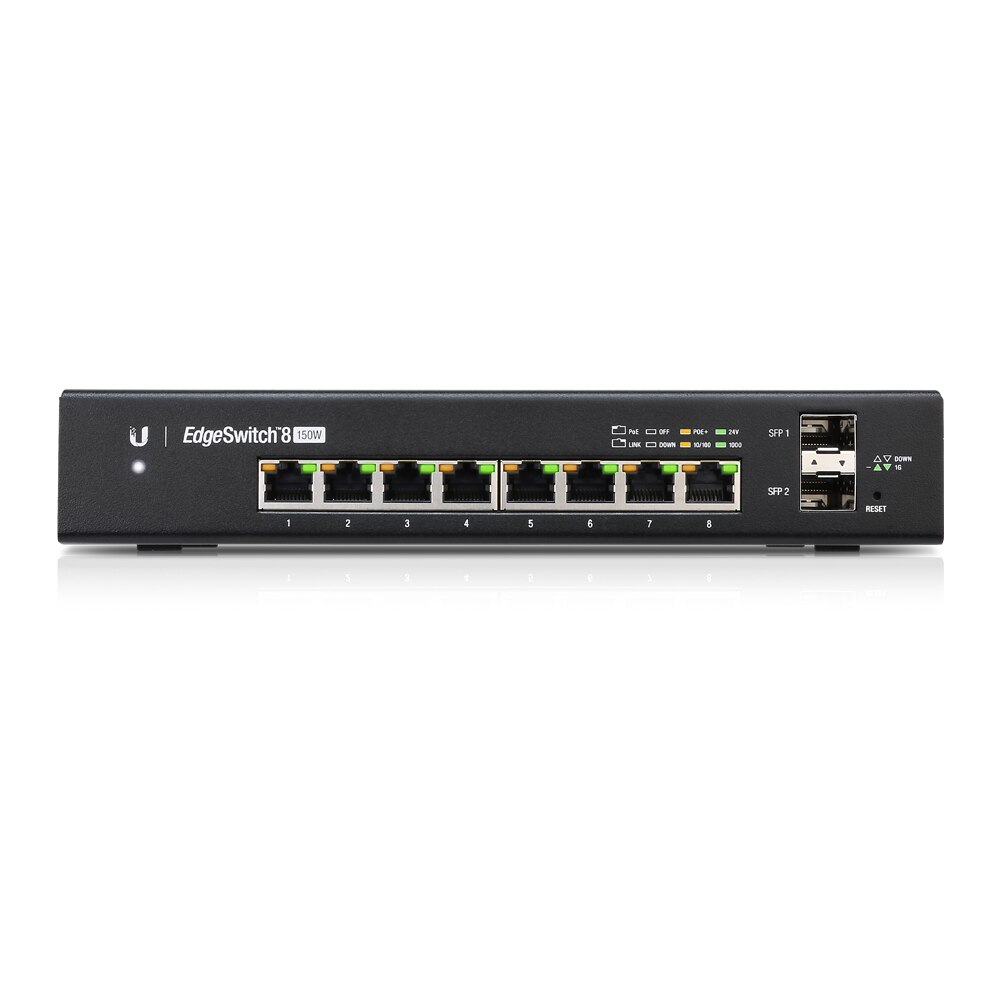

The fanless EdgeSwitch™ 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.
Gigabit Connectivity

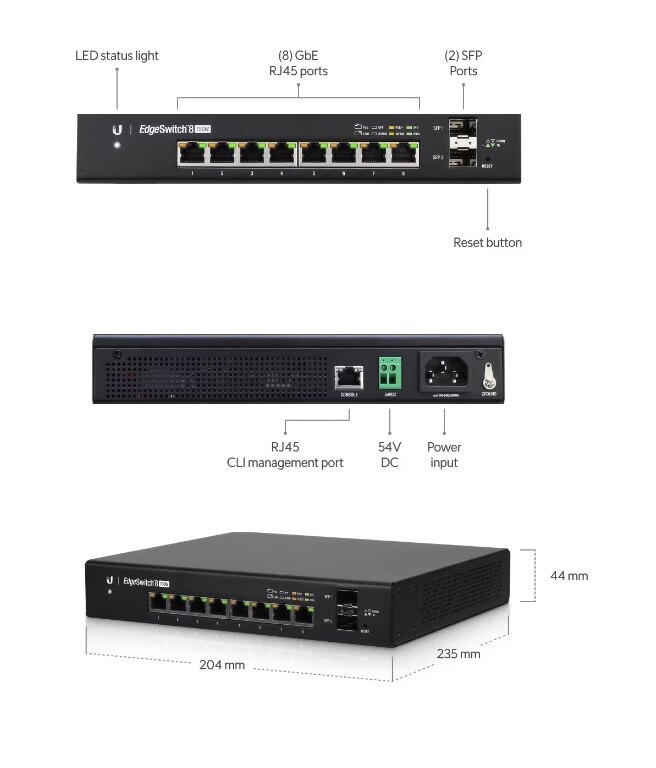

The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.
Convenient PoE+ Support
Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.
Optical Fiber Backhaul
The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.
Powerful Performance
The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.
Switching Capacity
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Specifications
Specifications ES-8-150W
| Dimensions | 204 x 43 x 235 mm (8.03 x 1.69 x 9.25") |
| Weight | Without Mount Brackets 1.72 kg (3.79 lb), With Mount Brackets 1.8 kg (3.96 lb) |
| Total Non-Blocking Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Max. Power Consumption | Includes PoE Output 150W, Excludes PoE Output 20W |
| Power Method AC | 100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input |
| Power Method DC | 42 to 56VDC External, (Self-Correcting Polarity Protection) Terminal Block Input |
| Power Supply | AC/DC, Internal, 150W DC |
| LEDs Per Port | RJ45 Data Ports PoE, Speed/Link/Activity |
| SFP Data Ports | Speed/Link/Activity |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Certifications | CE, FCC, IC |
| Wall-Mount | Yes |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature Internal AC/DC | @ 150W -25 to 45° C (-13 to 113° F) |
| Operating Temperature Internal AC/DC | @ 100W -25 to 55° C (-13 to 131° F) |
| Operating Temperature External DC | -25 to 60° C (-13 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
