Ubiquiti 5 GHz UISP LTU Instant (5-pack)
- SKU: LTU-Instant-5-US
$329.00
Product Information

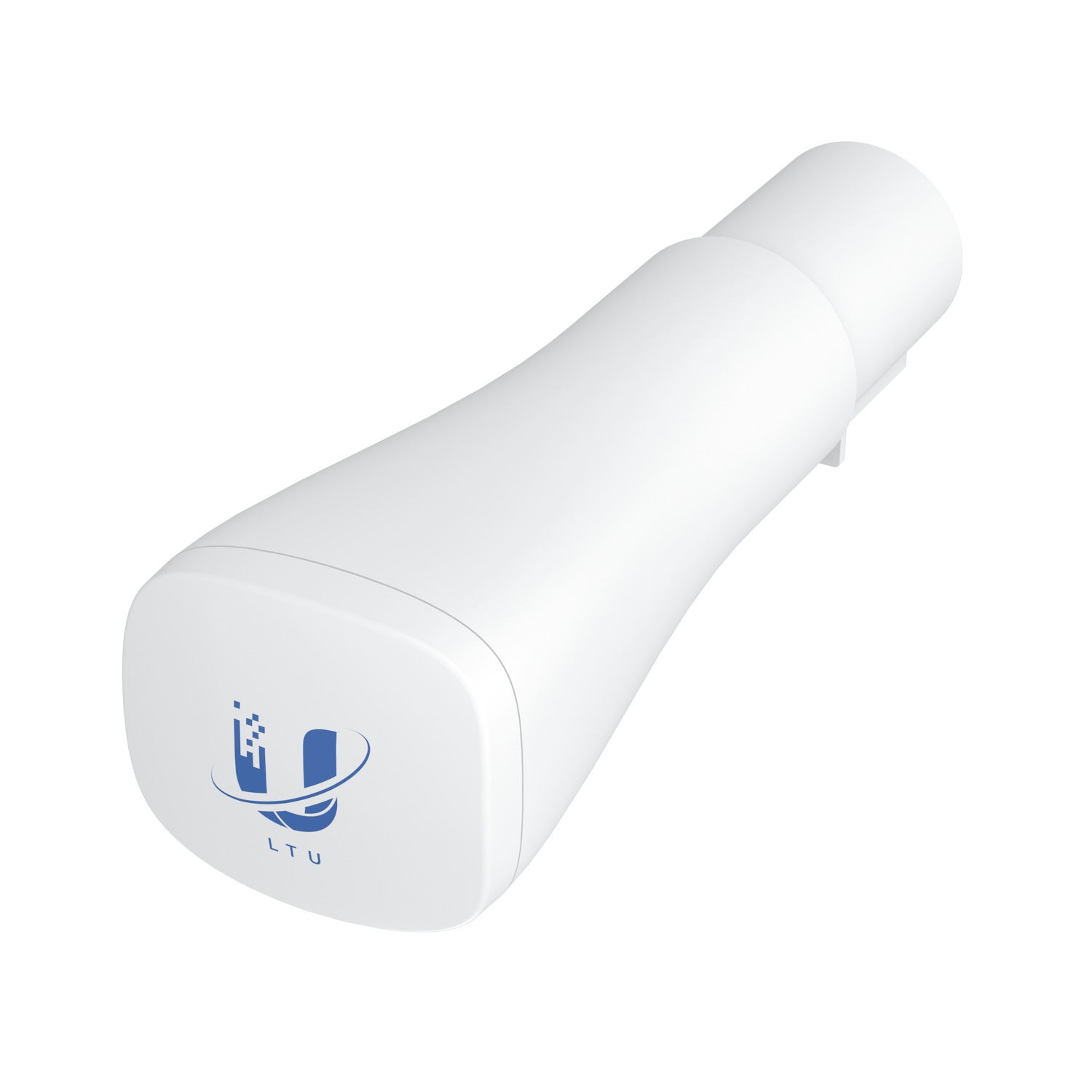

Ubiquiti Networks LTU-Instant-5-US
5 GHz UISP LTU Instant (5-pack)
5 GHz LTU client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station.
The LTU Instant is a 5 GHz LTU client that serves as a plug-and-play conversion module for existing LiteBeam® (LBE 5AC Gen 2) deployments. Designed to function in a PtMP environment with an LTU Rocket serving as its base station, the LTU Instant delivers up to 900+ Mbps* of real TCP/IP throughput with its 22 dBi high-gain antenna. It also offers a robust feature set including frequency splitting, router mode support, accommodating bandwidth options, and configuration management from the AP side. The LTU Instant can be set up in minutes and fully managed with the UISP® web application or mobile app.
Features:
- 900+ Mbps throughput*
- 22 dBi high-gain antenna with InnerFeed® technology
- Easily integrates with LBE 5AC Gen 2 deployments
- Proprietary Ubiquiti LTU core processor
- Channel width flexibility (10/20/30/40/50/60/80/100 MHz* bandwidth)
- Configuration management from the AP side
- Router mode support
- Frequency splitting
- Quick, Bluetooth-powered setup via the UISP Mobile app
- Includes (5) feeds and (5) PoE adapters
Specifications
Specifications LTU-Instant-5-US
| Mechanical | |
| Dimensions | Feed: 201.5 x 64.2 x 56.2 mm (7.9 x 2.5 x 2.2") Antenna: 358 x 271.9 x 288.5 mm (14.1 x 10.7x 11.4") |
| Weight | Feed: 215 g (7.6 oz) Antenna: 890 g (2 lb) Antenna with mount: 1.1 kg (2.4 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Wind loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Supported voltage range | 22—27V DC |
| Max. power consumption | 9W |
| RF connections | Internal |
| LEDs | Power/Ethernet |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Modes | PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware. |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is available in PtMP CPE mode only. |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* | 5.15 to 5.95 GHz *Depends on regulatory region. |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 22 dBi |
| Isolation | 20 dB |
