Ubiquiti Networks UISP Fiber Coexistence WDM Filter
- SKU: UACC-UF-WDM-XGS
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

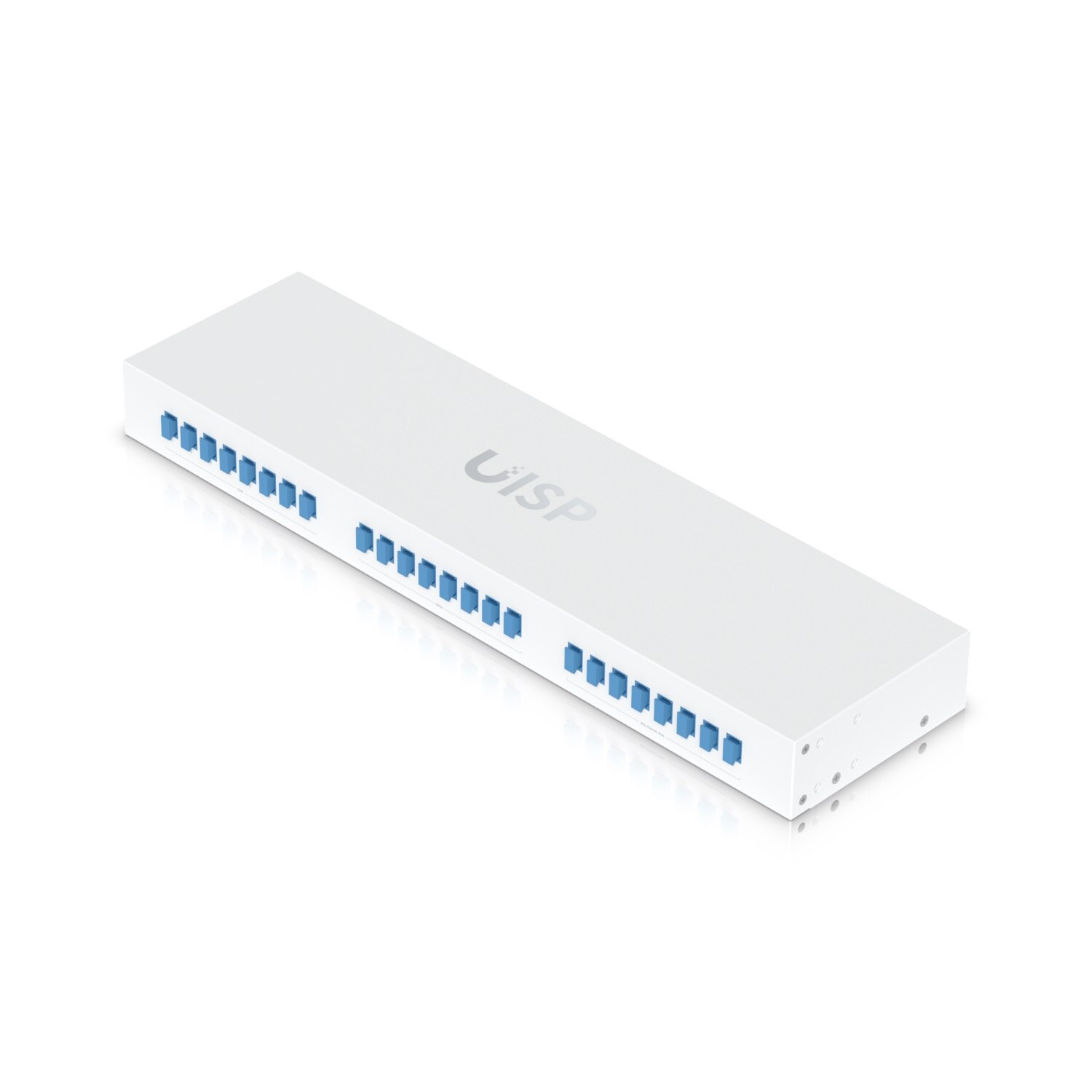

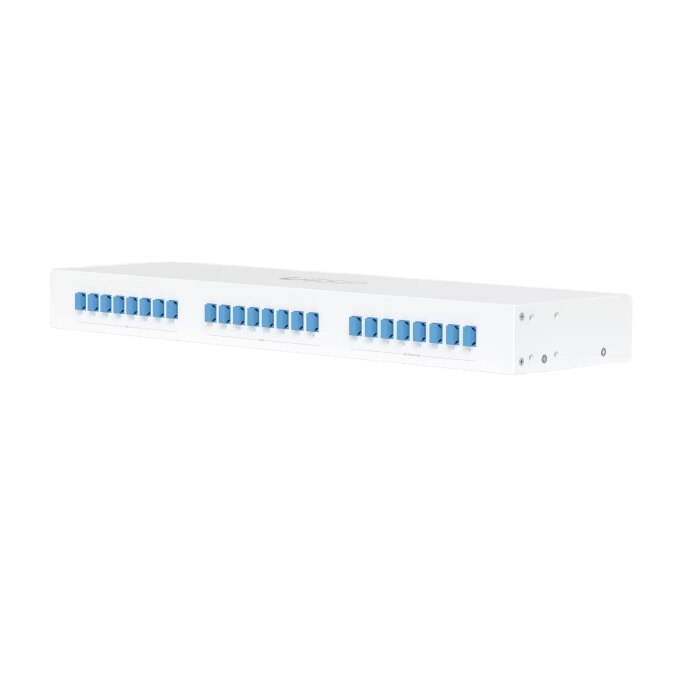

Ubiquiti Networks UACC-UF-WDM-XGS
UISP Fiber Coexistence WDM Filter
Wavelength Division Multiplexing module that combines XGS/XG-PON and GPON services into a single fiber distribution system.
Features:

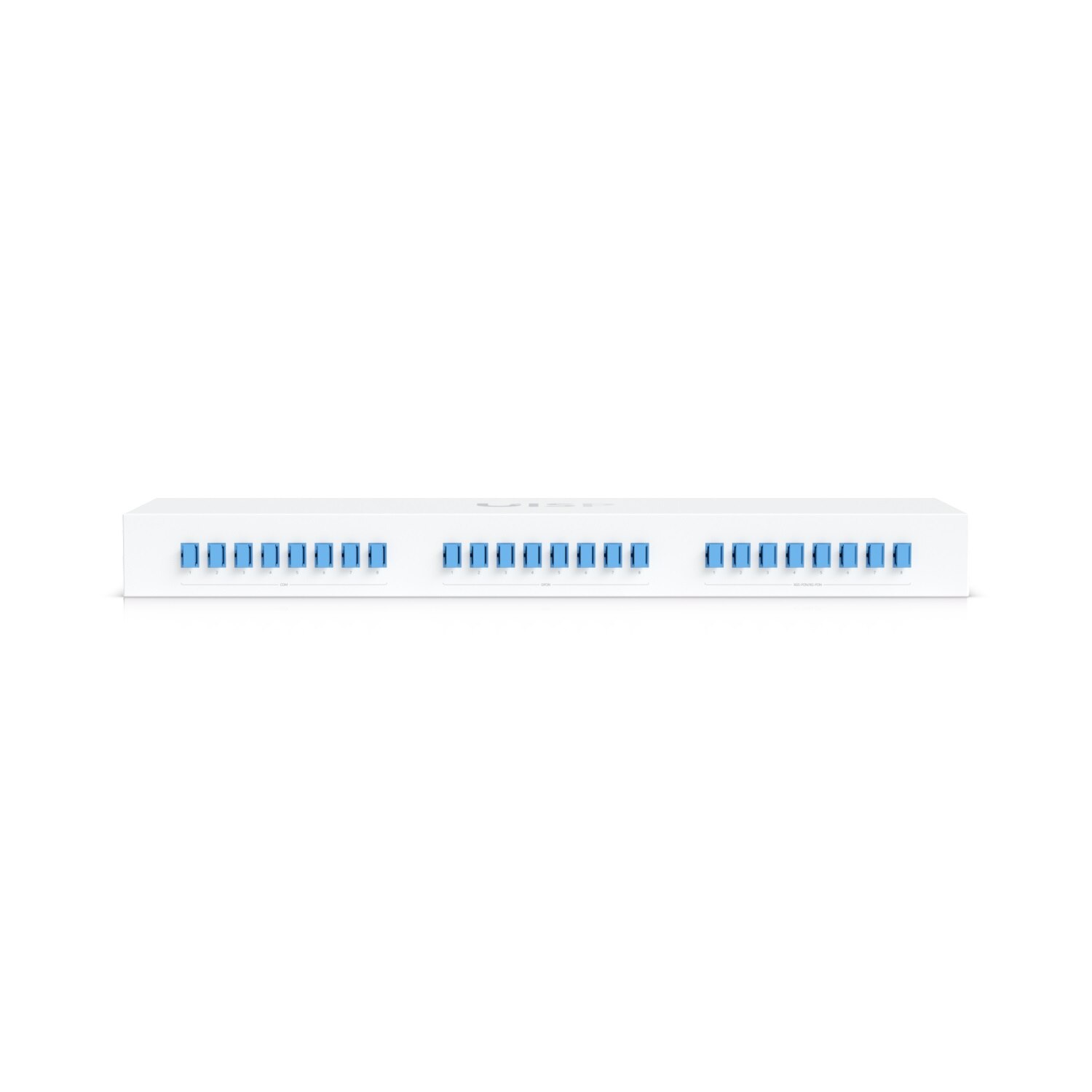

- (24) Connectors
- 1U Rack mount
Specifications
Specifications UACC-UF-WDM-XGS
| Dimensions | 442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7") |
| Weight | 1.8 kg (3.97 lb) |
| Enclosure material | Metal |
| Connector type | (8) COM (SC/UPC) (8) GPON (SC/UPC) (8) XGS/XG-PON (SC/UPC) |
| Hardware | |
| GPON - COM port | |
| Wavelength range | 1290—1330 nm 1480—1500 nm |
| Max. insertion loss | 1 dB |
| Min. isolation | 25 dB |
| XGS-PON - COM port | |
| Wavelength range | 1260—1280 nm 1575—1580 nm |
| Max. insertion loss | 1 dB |
| Min. isolation | 25 dB |
| Min. return loss | 50 dB |
| Max. polarization dependentloss | 0.1 dB |
| Fiber type | ITU-T G.657.A1 Single Model Fiber |
