Product Information

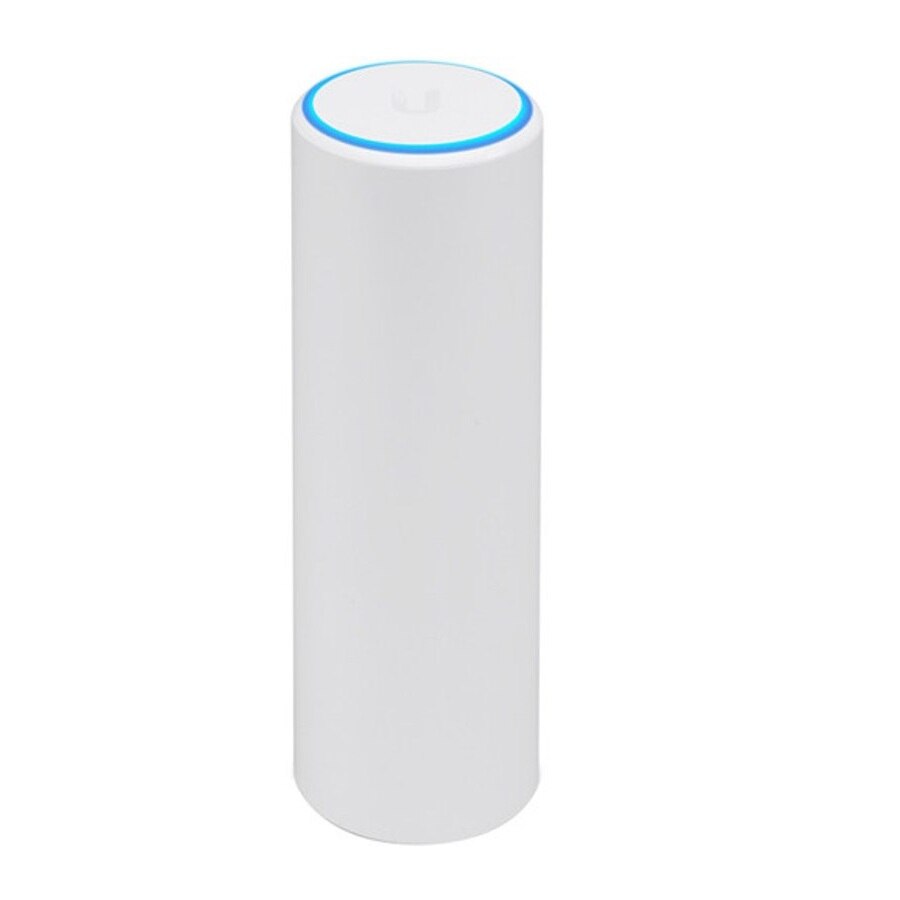

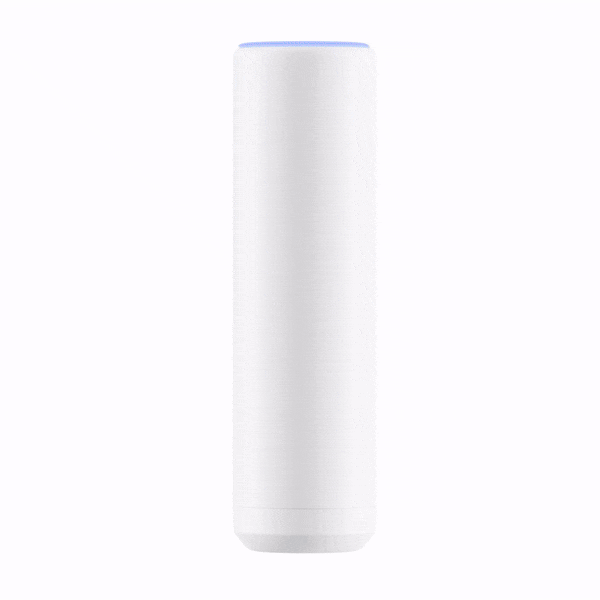

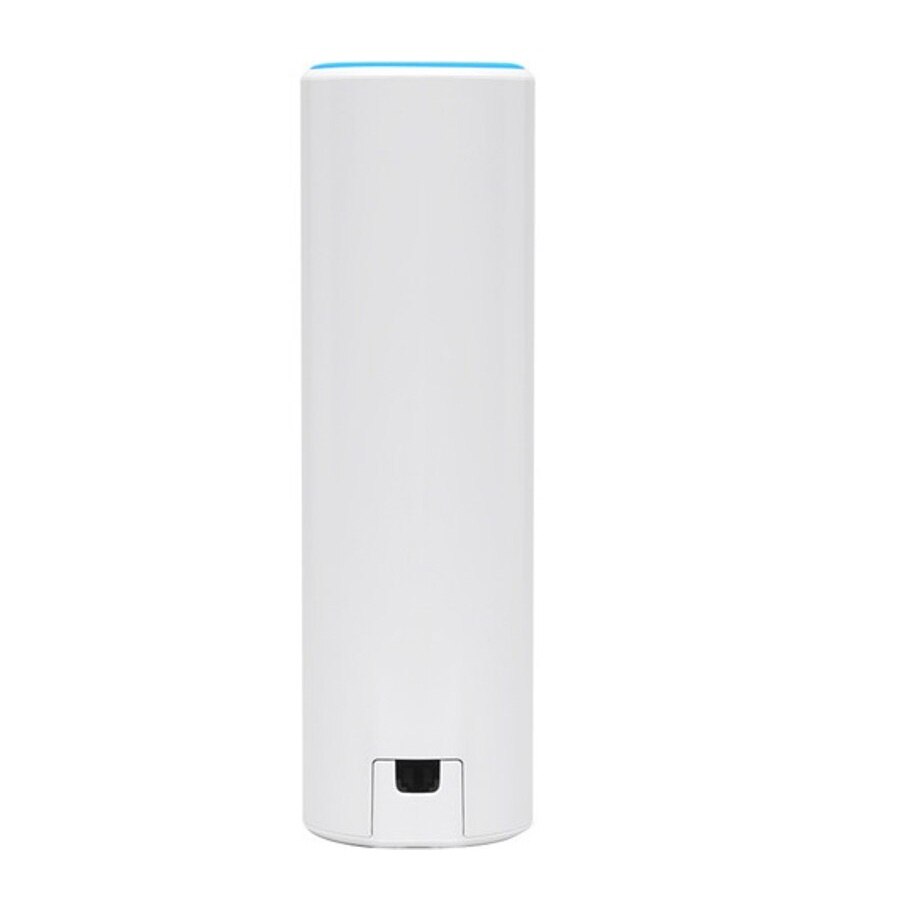

Ubiquiti Networks UAP-FlexHD
802.11ac Wave 2 Indoor/Outdoor Enterprise Wi-Fi Access Point
Small and sleek, yet powerful, the 802.11ac 4x4 AP is ideal for enterprises, businesses, and homes. The modern yet discreet design allows placement near users for optimal performance.
Features:
- 802.11ac Wave 2 Technology
- 5 GHz Radio: 802.11ac Wave 2, 4x4 MU-MIMO with Radio Rate of 1.733 Gbps
- 2.4 GHz Radio 802.11n: 2x2 MIMO with Radio Rate of 300 Mbps
- Indoor and Outdoor Use

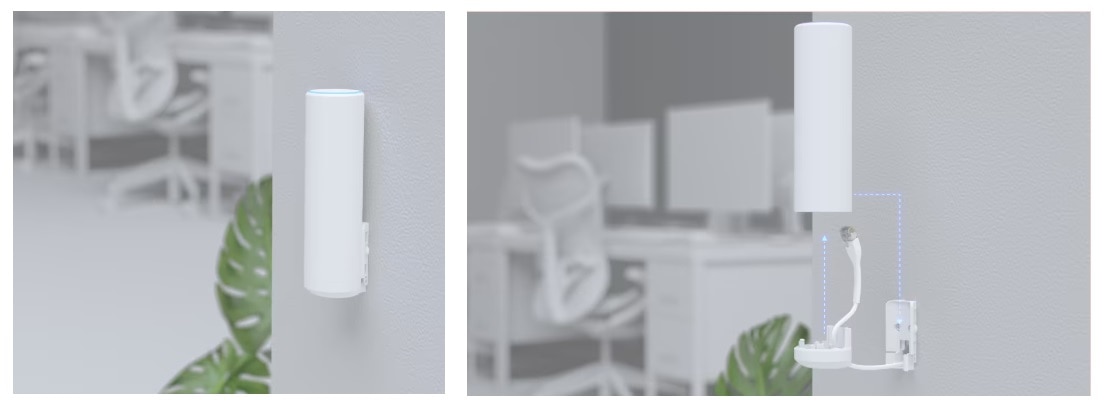

- Tabletop, Wall, and Pole Mounting Brackets Included
- Seamless Integration and Management with UniFi Network Solution
Works with UniFi Network Controller:
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Specifications
Specifications UAP-FlexHD

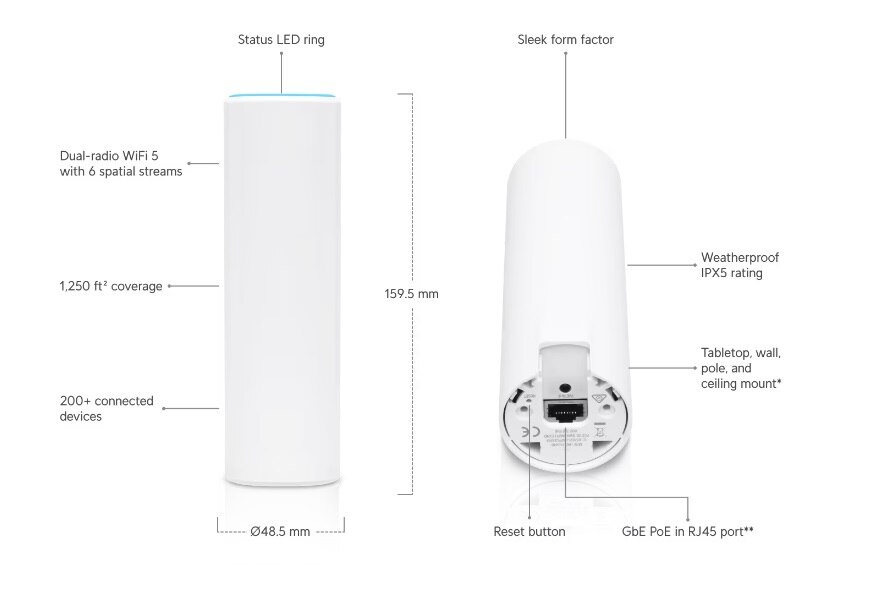

| Dimensions | Ø 48.50 x 159.49 mm (1.90 x 6.28") |
| Weight | 315 g (0.69 lb) |

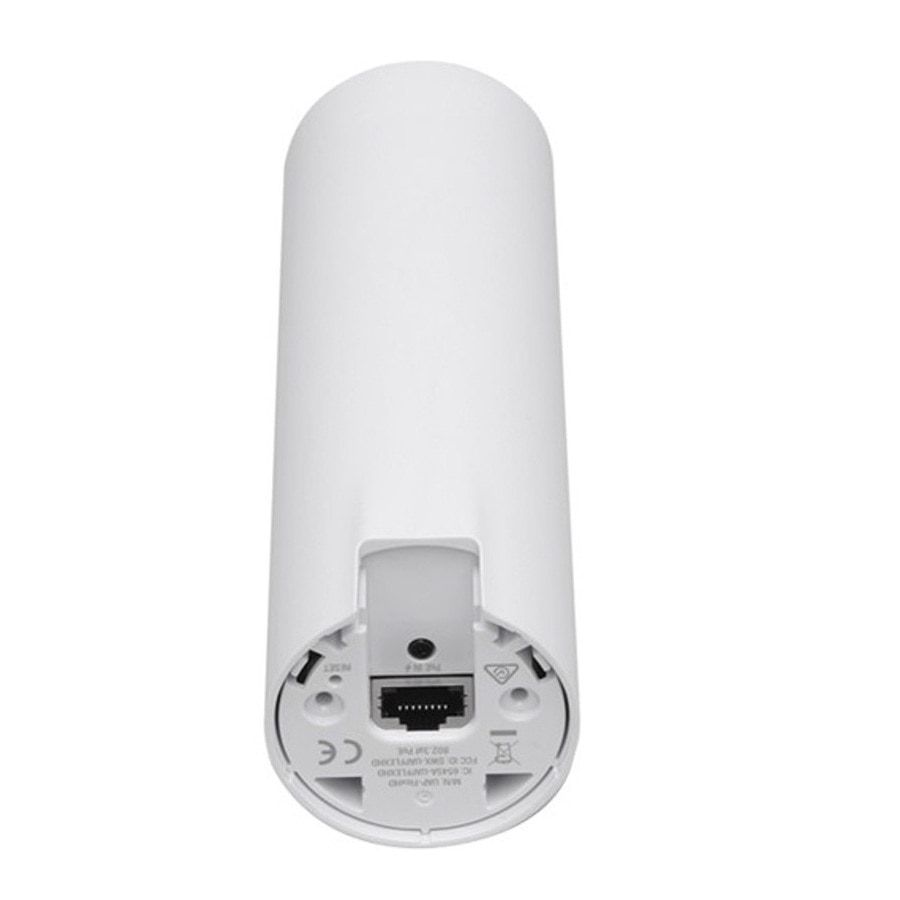

| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Button | Reset |
| LED | System / Status |
| Power Method | 802.3af |
| Power Supply | 802.3af 48V, 0.32A Gigabit PoE Adapter |
| Max Power Consumption | 10.5W |
| Voltage Range | 44 - 57VDC |
| Operating Frequency | 2.4 GHz 5 GHz |
| Max TX Power EIRP | 2.4 GHz: 23 dBm 5 GHz: 26 dBm |
| Throughput | 2.4 GHz: 300 Mbps 5 GHz: 1733 Mbps |
| Antenna Gain | 2.4 GHz: 1.6 dBi 5 GHz: 4 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Mounting | Ceiling / Pole / Tabletop / Wall |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
