Ubiquiti Networks UFiber Splitter 1:16
- SKU: UF-SPLITTER-16
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

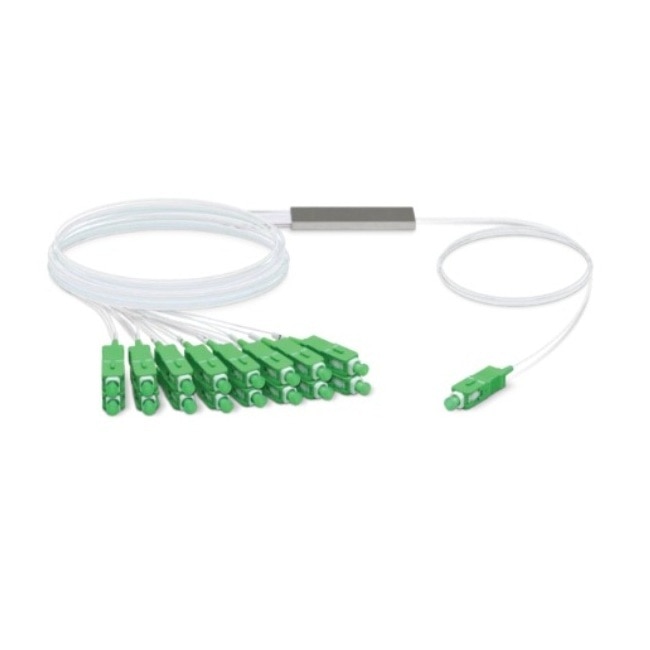

Ubiquiti Networks UF-SPLITTER-16
UFiber Splitter 1:16
The UFiber splitter carries data from a UFiber OLT’s long-haul cable and shares it with multiple UFiber ONUs. Available with 4, 8, 16, or 32 outputs.
Features:
- Mini-module type, steel tube
- G.657A1 fiber
- Input/output 0.9mm
- 1.5 meter cable length
- Terminated with SC/APC connector
Specifications
Specifications UF-SPLITTER-16
| Input | (1) SC/APC |
| Outputs | (16) SC/APC |
| Insertion Loss with Connectors | 13.7 dB |
| Uniformity Loss | 1.2 dB |
| Polarization Dependent Loss | 0.3 dB |
| Wavelength Bandwidth | 1260-1650 nm |
| Return Loss (All Ports) | 50 dB |
| Directivity | 55 dB |
| Fiber Type | G657A1 |
| Operating Temperature | -40 to 85° C (-40 to 185° F) |
| Total Length | 4.06 m (13.32') |
| Weight | 110 g (3.9 oz) |
