Ubiquiti Networks UFiber Splitter 1:32

  • SKU: UF-SPLITTER-32
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
US$‎43.00

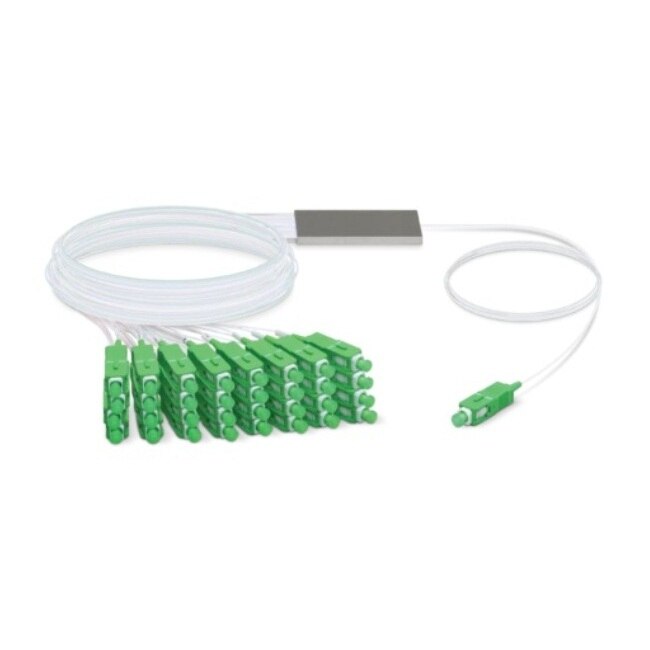

Ubiquiti Networks UF-SPLITTER-32

UFiber Splitter 1:32

The UFiber splitter carries data from a UFiber OLT’s long-haul cable and shares it with multiple UFiber ONUs. Available with 4, 8, 16, or 32 outputs.


Features:

  • Mini-module type, steel tube
  • G.657A1 fiber
  • Input/output 0.9mm
  • 1.5 meter cable length
  • Terminated with SC/APC connector

Specifications UF-SPLITTER-32

Input (1) SC/APC
Outputs (2) SC/APC
Insertion Loss with Connectors17.0 dB
Uniformity Loss1.5 dB
Polarization Dependent Loss 0.3 dB
Wavelength Bandwidth 1260-1650 nm
Return Loss (All Ports)50 dB
Directivity 55 dB
Fiber Type G657A1
Operating Temperature -40 to 85° C (-40 to 185° F)
Total Length 4.06 m (13.32')
Weight 160 g (5.6 oz)
