Ubiquiti airMAX 5GHz, 45deg, 15dBi Isolation Horn Antenna

(0)No Reviews yet
  • SKU: HORN-5-45
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick Start Guide:Download
1 in stock
College Station
1 In stock

Product Information

Ubiquiti PrismAP-5-45

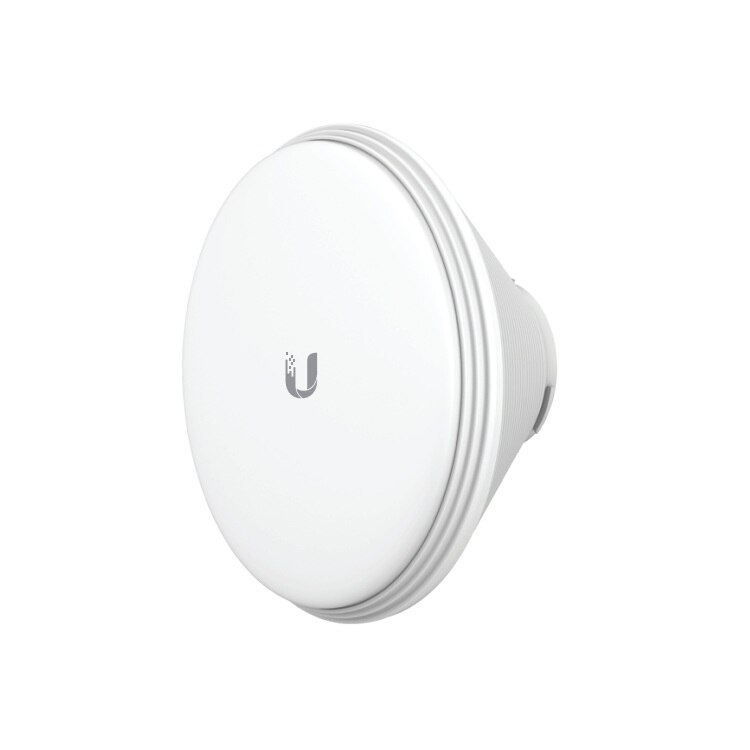

Ubiquiti airMAX 5GHz, 45deg, 15dBi Isolation Horn Antenna

Ubiquiti Networks launches a new family of beamwidth isolation horn antennas.

Modular Design

With flexible sectorization for optional antenna beamwidths, the horn antennas are interchangeable and improve beam‑shaping for specific deployment and environment needs. Sector horn antennas are designed to increase co‑location performance without sacrificing gain.


There are two symmetrical horn antennas:

• Horn-5-30: 30° beamwidth
• Horn-5-45: 45° beamwidth

These models offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.


The horn antennas can be used with the following radios:

• airFiber LTU™ AF-LTU
• IsoStation IS-5AC
• IsoStation IS-M5
• PrismStation PS-5AC


  • Isolation Antenna Horns for airFiber® LTU and airMAX®
  • Designed for Increased Co-Location Performance
  • 45° beamwidth
  • Dual-Linear Polarization
  • Single button release for ease of changing antennas
  • Newly designed horn for improved beam shaping


Specifications PrismAP-5-45

DimensionsØ 175 x 96 mm (6.9 x 3.78")
Weight 1.34 kg (47.23 oz)
Supported Frequency Range 5.15 - 5.85 GHz
Gain 15.5 dBi
HPOL Beamwidth 45°
VPOL Beamwidth 45°
Elevation Beamwidth 45°
Maximum VSWR 1.7:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Pol Isolation 17 dB
