• Home
  • Ubiquiti UniFi AP, AC, In Wall Access Point (5-Pack)

Ubiquiti UniFi AP, AC, In Wall Access Point (5-Pack)

(0) No Reviews yet
  • SKU: UAP-AC-IW-5-US
  • Manufacturer: Ubiquiti Networks
  • Spec Sheet: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$425.00 $480.00

Specifications Ubiquiti UAP-AC-IW-5

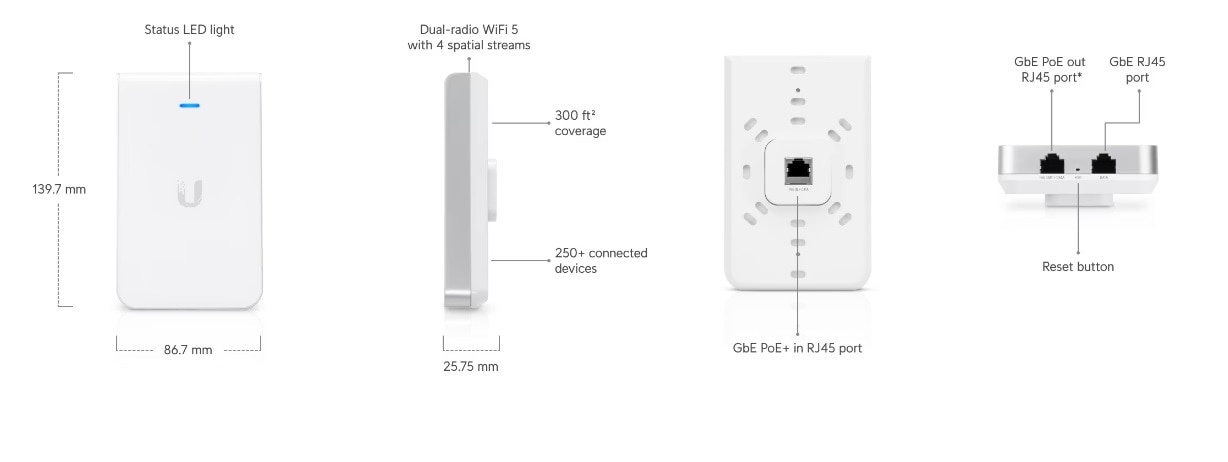

Dimensions139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
Weight200 g (6.43 oz)
Networking Interface(3) 10/100/1000 Ethernet Ports
ButtonsReset
Power MethodPassive Power over Ethernet (48V), 803.2at Supported (Supported Voltage Range: 44 to 57VDC)
Power SupplyUniFi Switch (PoE)
Power SaveSupported
PoE Out48V Pass-Through (Pins 1, 2+; 3, 6-)
Maximum Power Consumption7W
Maximum TX Power2.4 GHz: 20dBm, 5 GHz: 20dBm
Antennas(1) Dual-Band Antenna, Single-Polarity 2.4GHz: 1dBi 5GHz: 2 dBi
Wi-Fi Standards802.11 a/b/g/n/ac
Wireless SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSIDUp to Four per Radio

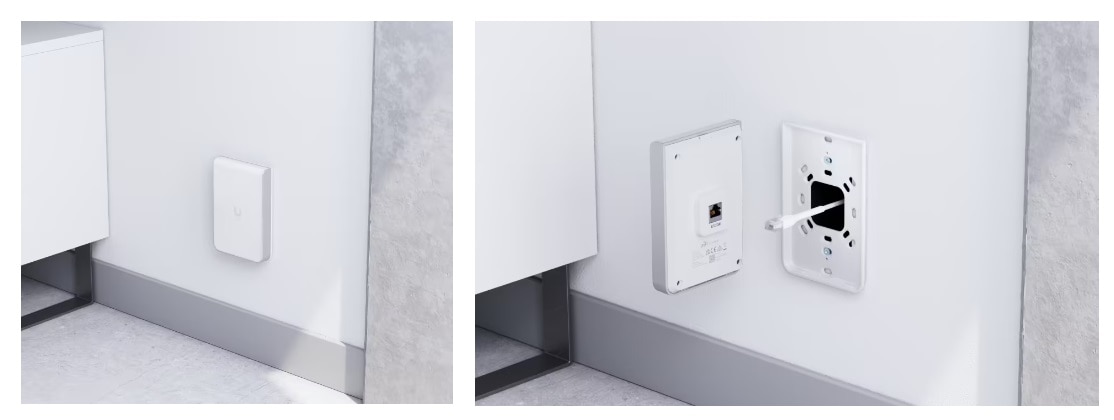

Mounting1-Gang Electrical Wall Box (Not Included)
Operating Temperature-10 to 50° C (14 to 122° F)
Operating Humidity5 to 95% Noncondensing
CertificationsCE, FCC, IC

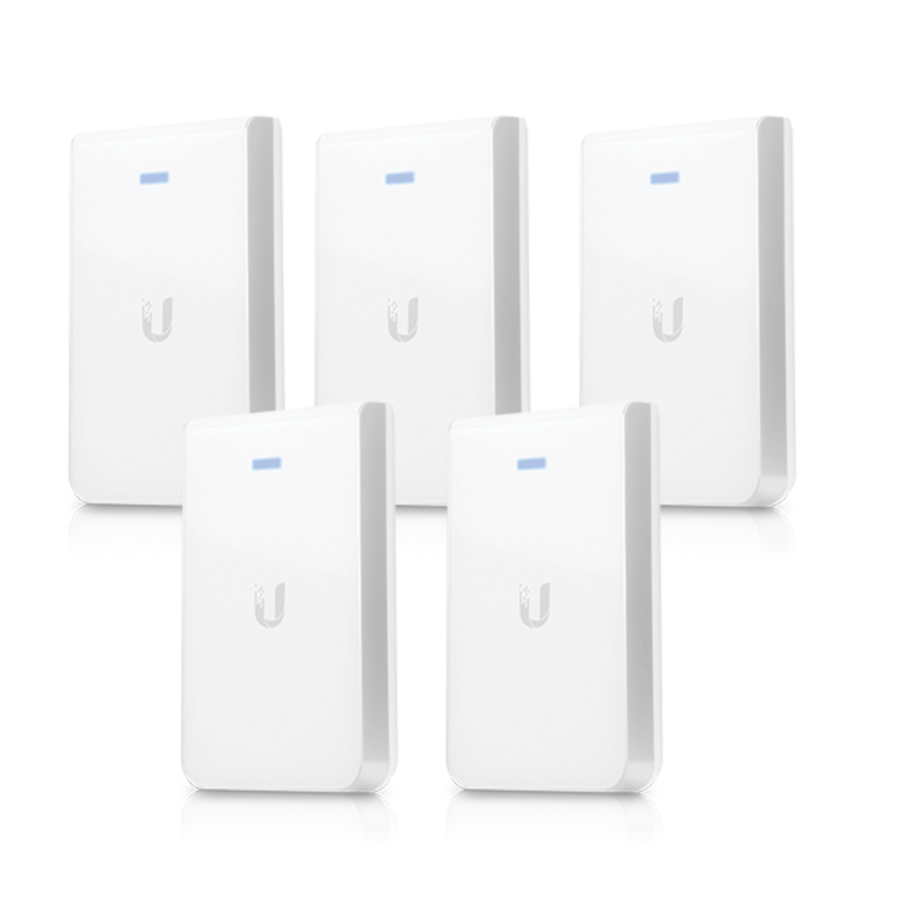

Ubiquiti UniFi UAP-AC In-wall 5-pack (UAP-AC-IW-5)

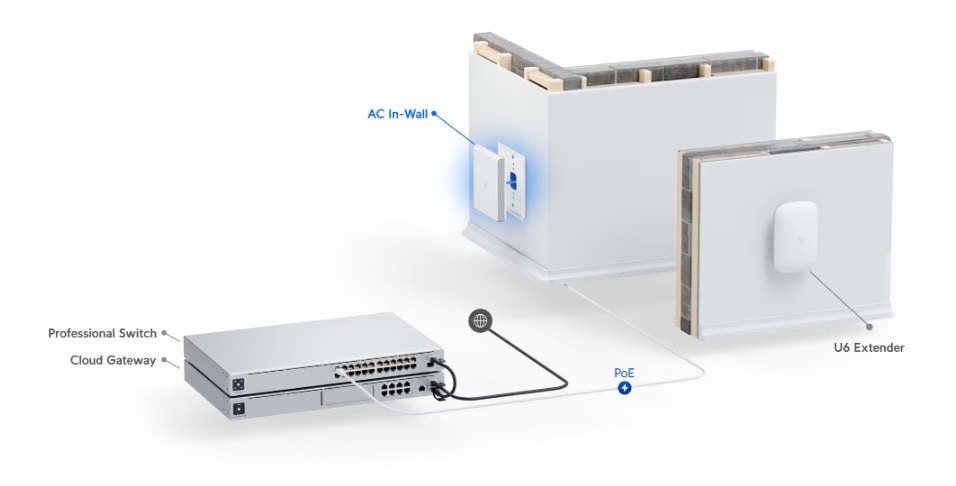

UBNT-UAP-AC-IW-5 is ideal for use in rooms/offices, in all places using the wall to install the device. The UniFi AC In-Wall AP transforms an Ethernet wall connection into a dual-band 802.11AC Wi-Fi Access Point. It features two Gigabit Ethernet ports, one of which delivers PoE to power and connect an 802.3af device to the network. The UniFi AC In-Wall AP provides simultaneous, dual-band, 2x2 MIMO technology and is available in single- and five-packs (PoE adapters not included).
