Ubiquiti 2.4GHz 24 dBi airFiber X Antenna

(0)No Reviews yet
  • SKU: AF-2G24-S45
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download

Out of Stock

Product Information

Ubiquiti Networks AF-2G24-S45

2.4GHz 24 dBi airFiber X Antenna

The AF-5G23-S45 offers 24 dBi of gain in a 650-mm diameter and slant-45 degree polarity

Compact Footprint for Deployment Flexibility

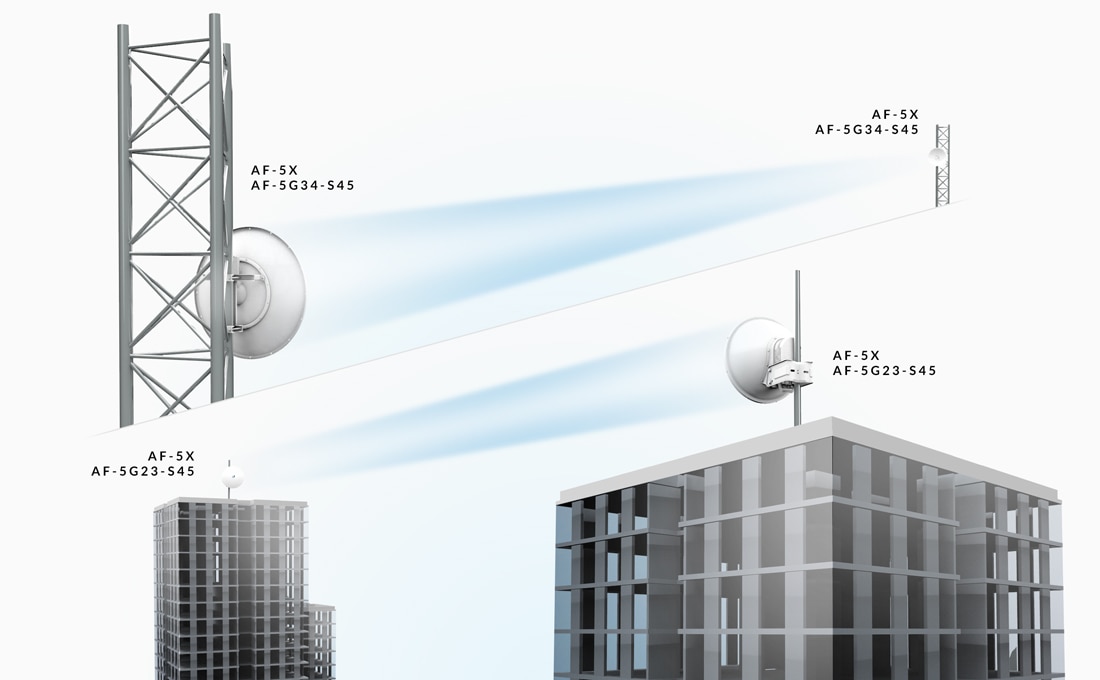

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.

Carrier-Class Construction

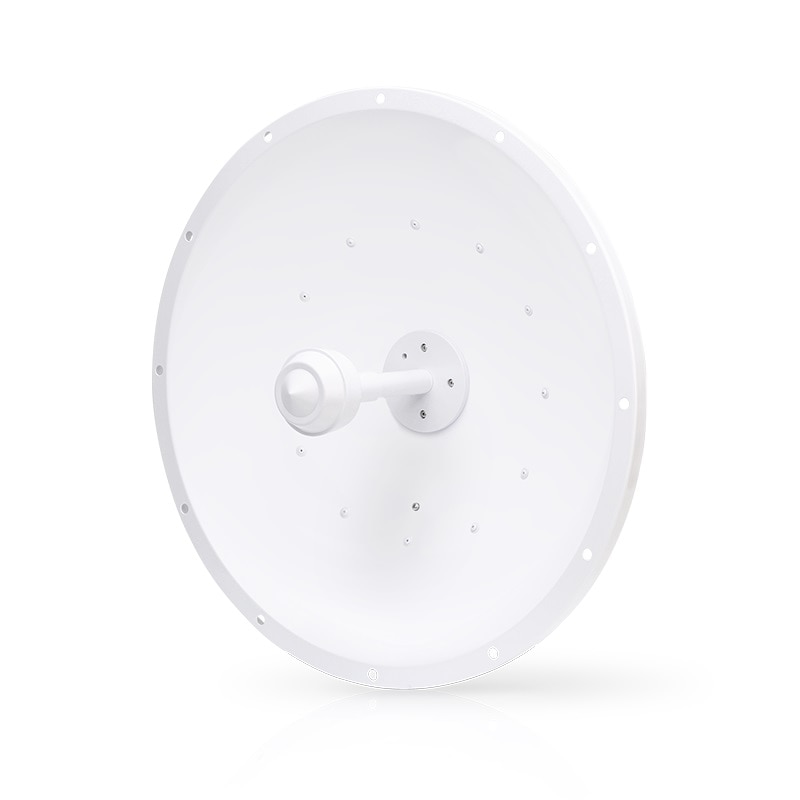

Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

Plug and Play Integration

The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.

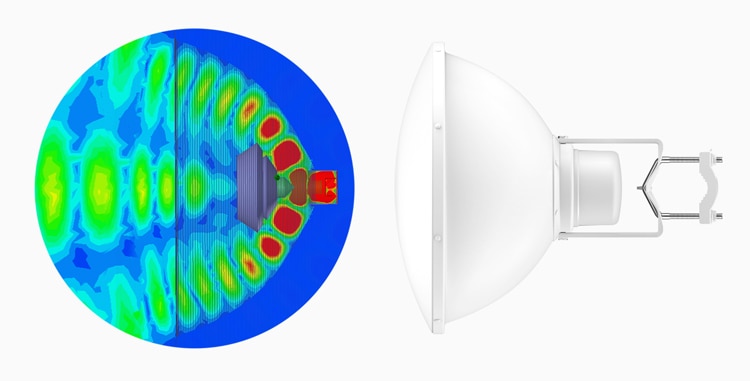

Advanced RF Isolation Design

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high‑capacity, multipoint networks.

Mechanical Design

  • Secure Pole-Mounting maintains the position of the dish during harsh outdoor conditions.
  • Low-Profile Form Factor of the AF-5G23-S45 Reduces wind-loading.

Weatherproof Design

  • Protective Shroud protects the cables and connectors from the elements.

Specifications

Specifications AF-2G24-S45

Dimensions650 x 295 mm (25.59" x 11.61")
Weight9.8 kg (21.61 lb)
Frequency Range2.3 - 2.7 GHz
Gain24 dBi
HPOL Beamwidth3.8° (RX Dish) 6.6° (TX Dish)
VPOL Beamwidth3.8° (RX Dish) 6.6° (TX Dish)
Front-to-Back Ratio-50 dB (RX Dish) -65 dB (TX Dish)
Max. VSWR1.6:1
Wind Loading787 N @ 200 km/h (177 lbf @125 mph)
Wind Survivability200 km/h (125 mph)
PolarizationDual-Linear
Cross-pol Isolation35 dB Min.
ETSI SpecificationEN 302 326 DN2
MountingUniversal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
