Aerial Terminal

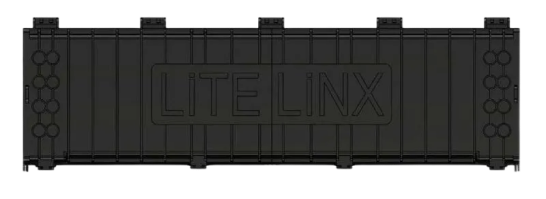

Introducing our Aerial Terminal, meticulously designed for aerial fiber access networks, offering a cost-effective solution tailored for optical access networks. The innovative 33-inch terminal ensures environmental protection and facilitates swift incremental connection of subscribers’ drop cables. Equipped with a sealed enclosure resistant to environmental elements, it features quick-release clamps for effortless re-entry. Installation is a breeze with included aerial hanging brackets, supporting up to 12 Single-Fiber Drop Cable Assembly connector ports. The terminal boasts three express ports per end cap, accommodating Flatdrop or Pushable Duct Round STUBBED cable options. This quick connect Terminal integrates options for integrated splitters, ensuring flexibility in deployment scenarios. User-friendly for both installation and operation, our Aerial Terminal prioritizes fiber protection, continuity, and efficient slack storage with up to 12 feet of capacity. Offering versatility with a maximum fiber cable capacity of 72 loose tubes or 216 ribbons, our Aerial Terminal is the optimal choice for seamless and reliable aerial fiber installations.
Box Contents
LiteLinx Aerial Terminal Mounting HardwareHighlights
Factory sealed enclosure provides resistance to environment
Quick Connect Terminal
Flat drop or Pushable Duct Round STUBBED cable options
-40°C to 80°C Rated
Integrated Splitters options
Friendly user for installation and operation
Aerial hanging brackets included
Fiber protection and continuity
Quick release clamps
Up to 12 feet of slack storage
Maximum fiber cable capacity is 72 loose tube or 216 ribbon
Specification
Working Temperature | -40°C~80°C | |
Distribution cable per end | 1xØ13mm | |
1xØ16mm | ||
1xØ18mm | ||
Outer Number of Drop Adapters per end | 2, 3, 4 or 6 | |
Pigtail class | Single fiber (900 μm) | |
Max number of trays | 3 | |
Max splice fiber capacity | 144 Single Fiber / 216 Mass Fusion | |
Number of Pigtails | Up to 12 | |
Connector Type | Fast Connect SC/APC | |
Dimensions | 826 mm x 257.1 mm x 152.4 mm |
