Product Information
ALTA Labs S8-POE
8 Port POE, POE switch

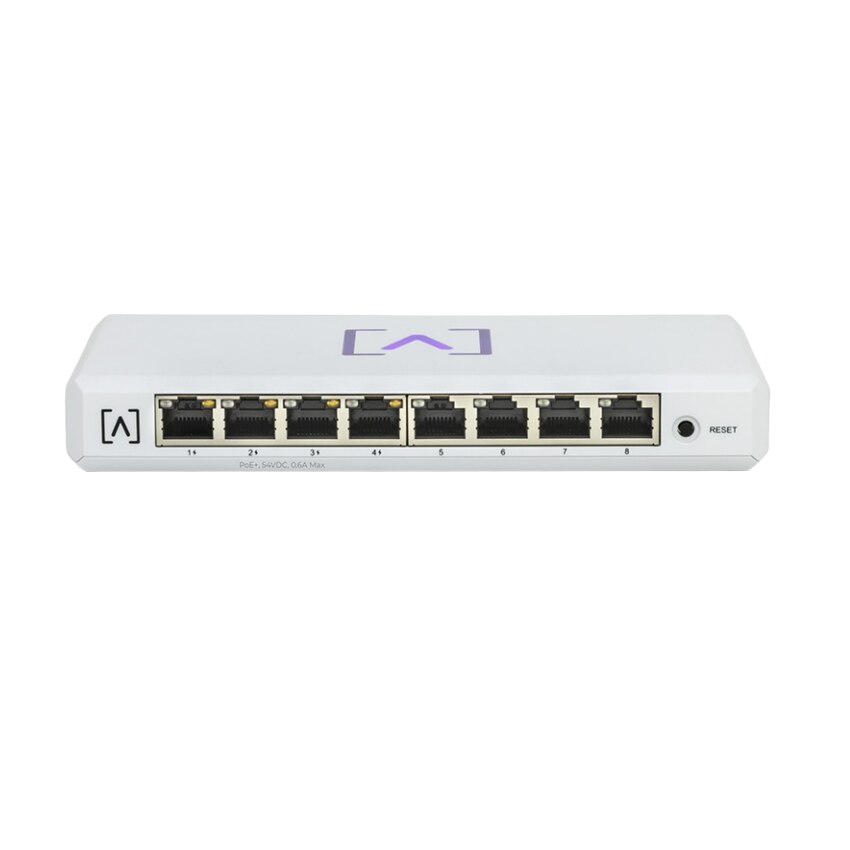

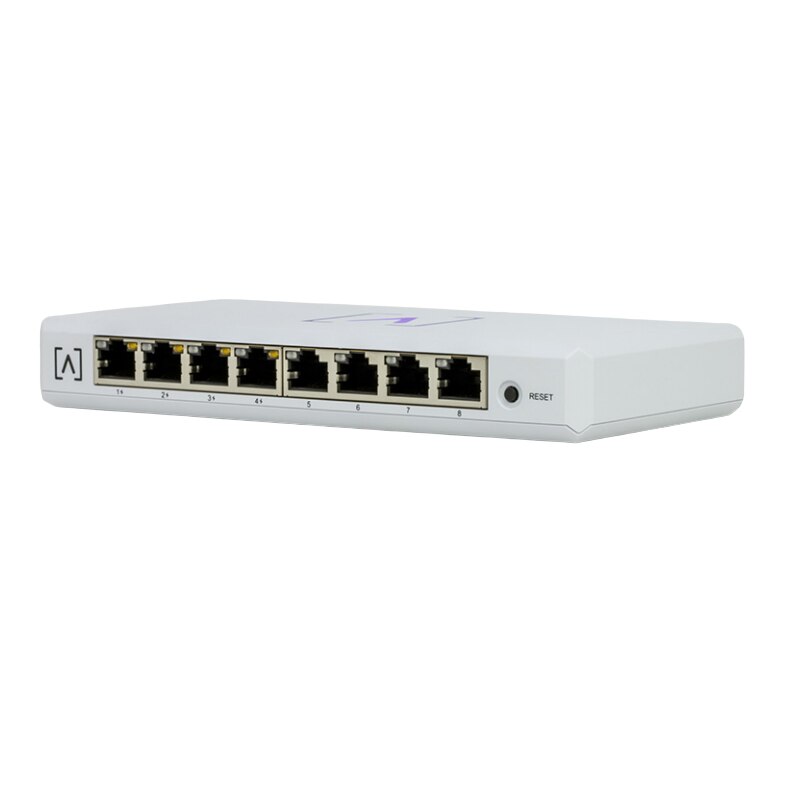

The S8-PoE is a compact switch with eight 10/100/1000 ports, four of which support PoE+. It can be placed on a desktop or mounted on a wall. All of the Alta Labs switches include Bluetooth functionality for seamless device setup.
Bluetooth Setup
The Alta Labs switches include Bluetooth functionality allowing for seamless setup using the Alta Labs mobile app.
Mobile App
Monitor and manage your networks from the convenience of your mobile device. The management interface is easily accessible via mobile app or web browser. Sign up for an Alta Labs account using just your name, email, and password or use Google Authentication.
Scalable Cloud-Based Management
Alta Labs provides an intuitive and easy‑to‑use cloud‑based management interface for Alta Labs access points and switches. Designed for optimum scalability using a high‑availability architecture for the ultimate in convenience and worldwide accessibility. Built on a worldwide content delivery network to optimize response and latency, our global cloud infrastructure ensures geographically optimized connectivity through our redundant network. Deploy and manage multiple sites quickly and easily. Add, delete, or rename sites instantly. Toggle between sites from a site selection drop‑down. Each site contains its own data set.
Egress and Ingress Rate Limiting
The switches offer egress and ingress rate limiting. This allows inbound and outbound traffic to be limited to a portion of the available bandwidth per connection. For example, a hotel may want to provide guests with free 5 Mbps internet download (egress) connections but require guests pay an extra fee for 100+ Mbps speeds. The upload (ingress) speeds from the guests devices can also be limited.
Alta Labs Cloud Management Platform
The Alta Labs Cloud Management Platform provides many features that can be utilized for on your Alta Labs Switches.
Customizable Dashboard
Customize your dashboard with the information you want to see: IP address, Load, number of devices, MAC address, firmware version, network color assignment, and real‑time status details.
Device Cards
Easily view connection details and configure your ports by clicking the device icon.
Status Snapshots
View upload and download throughput with a visual timeline on the dashboard for each device displayed along with the number of connected devices, average processor load, channel load, and average connected devices. Select a snapshot of the last minute, last hour, last two days, or last two months.
Site Manager
The Alta Site Manager provides an overview of all sites, displays the number of devices for each site, and shows when updates are needed. New sites can be added and current sites can be duplicated or removed. Use the search option to look for a specific site.
Features:
- Power Over Ethernet
- SFP/SFP+ High Performance Connectivity
- Bluetooth Setup
- Mobile App
- Scalable Cloud-Based Management
- VLAN Stacking
- Egress and Ingress Rate Limiting
- IGMP Snooping*
- 802.1X Authentication*
- Network Loop Detection*
- Customizable Dashboard
- Status Snapshots
- Device Cards
- Site Manager
- Mounting Flexibility
- More Features to Come with Automatic
- Firmware Updates
Specifications
Specifications S8-POE
| Dimensions | 25.7 x 91 x 180 mm (1 x 3.6 x 7.1") |
| Weight | .38 kg (.83 lbs) |
| Material Type | Injection Molded Plastic |
| Material Finish | Matte |
| Color | White |
| Ports | |
| Interface ports | (8) 10/100/1000 Mbps |
| SFP/SFP+ | None |
| Switching Capacity | 16 Gbps |
| Non‑blocking Throughput | 8 Gbps |
| Forwarding Rate | 11.9 Gbps |
| PoE Budget/Max | 60 Watts |
| PoE Supply | 30 Watts per port |
| Per Port PoE | (4) 802.3at PoE+ |
| Non‑PoE Ports | -4 |
| LEDS | |
| PoE | Orange |
| Network | Orange: 10/100 Mbps, Blue: 1000Mbps |
| SFP/SFP+ | None |
| HARDWARE | |
| Packet Buffer | 4.1 Mbit |
| Mac Table Size | 8 K |
| Energy Efficient Ethernet | Yes |
| Management | Factory reset button |
| Bluetooth | Yes, Setup |
| POWER | |
| Max Power Consumption w/o PoE | 8 Watts |
| Max Power Consumption Full PoE | 68 Watts |
| Output | PoE+, 54VDC, 0.6A Max. |
| Power Supply | Universal AC, 100 ‑ 240VAC 50‑60Hz External |
| RJ45 Port Surge Protection | 12kV for ESD ‑ contact, 25kV for ESD ‑ Air |
| ENVIRONMENTAL | |
| Mounting | Locking Wallmount |
| Operating Temperature | ‑5 to 50° C (23 to 122° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| IP Rating | None |
| EMI Rating | EMI Class‑B with 3dB margin |
| Cooling Fan | No (Fanless cooling) |
| Certifications | CE, FCC, IC |
