Cambium Networks C024900C031A
- SKU: C024900C031A
- Manufacturer: Cambium Networks
- Data Sheet: Download
- Availability: Direct Ship Item Item usually ships same day direct from Manufacturer
|Channel spacing||Configurable on 5 MHz increments|
|Frequency range||2.4 GHz: 2402 – 2472 MHz|
|Channel width||20 MHz or 40 MHz|
|MAC (media access control) layer||Cambium Proprietary|
|Physical layer||2x2 MIMO/OFDM|
|Ethernet interface||100 BaseT, Cambium PoE (V+ = pins 7 & 8, Return = pins 4 & 5)|
|Protocols used||IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, FTP|
|Network management||HTTPs, FTP, SNMPv2c|
|VLAN||802.1Q with 802.1p priority|
|Nominal receive sensitivity (W/ FEC) @ 20MHZ Channel||MCS1 = -90 dBm to MCS15 = -62 dBm (per branch)|
|Nominal receive sensitivity (w/ FEC) @ 40MHZ Channel||MCS1 = -87 dBm to MCS15 = -59 dBm (per branch)|
|Modulations levels (ADAPTIVE)||MCS1 (QPSK 1/2) to MCS15 (64QAM 5/6)|
|Latency||6 ms (Flexible Frame Mode) , 17 ms (GPS Sync Mode)|
|Quality of service||Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority|
|Transmit power range||-17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)|
|Antenna gain||2.4 GHz: integrated|
|Maximum transit power||2.4 : 30 dBm combined (subject to regional regulatory restrictions)|
|Antenna connection||Integrated antenna|
|Surge suppression||1 Joule Integrated|
|Temperature||-30°C to +60°C (-22°F to +140°F)|
|Weight||0.49 kg (1.1 lb.)|
|Wind survival||145 km/hour (90 mi/hour) with antenna|
|Dimensions (h x w x d)||29.1 x 14.5 x 8.3 cm (11.4 x 5.7 x 3.3 in)|
|Power consumption||7 W Maximum, 5 W Typical|
|Input voltage||10 to 30 V|
|Encryption||128-bit AES (CCMP mode)|
|FCCID||2.4 GHz: Z8H89FT0011|
|Industry Canada cert||2.4 GHz: 109W-0011|

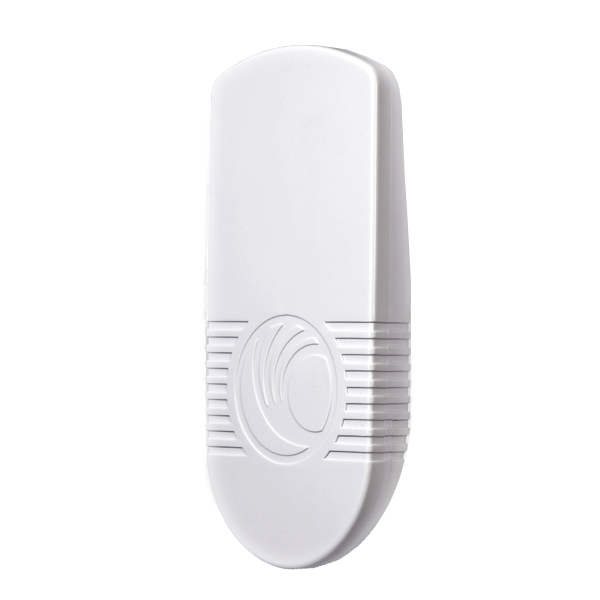

ePMP 1000 2.4GHz Integrated Radio
Network operators are challenged to deliver reliable connectivity in overcrowded RF environments. As available spectrum becomes more congested, having the right broadband access solution that allows network operators to deliver efficient quality cost effectively, is vital for all types of deployments.
Maximize network performance using ePMP software with eFortify™ and eCommand™ features and tools. eFortify enhances the performance of the ePMP 1000 in high noise environments. eCommand provides a suite of management features and tools to assist network operators in planning, provisioning and monitoring of their network. The ePMP 1000 Integrated Radio is a compact and powerful platform that can operate as an Access Point, Subscriber Module or PTP radio. When configured to operate as a Subscriber Module or PTP Radio, its gain can be enhanced by the ePMP 1000 Reflector Dish.
Available in both 5 GHz and 2.4 GHz frequency bands the platform delivers high performance and reliable broadband connectivity to customers, with services such as VoIP, video and data. The ePMP 1000 is the most effective connectivity solution for reaching the under-and unconnected around the world.
INNOVATIVE GPS SYNC TECHNOLOGY enables unparalleled spectrum efficiency. This allows for the configuration of more subscribers in your network while preserving consistency and quality of service in spectrum-constrained environments. GPS Sync leads directly to CAPEX and OPEX reductions, resulting in lower installation costs and maintenance, allowing your business to concentrate on growth and profitability.
QUALITY OF SERVICE (QOS) allows you to confidently offer triple play services – VoIP (Voice over IP), video and data. Providing your customers with excellent service quality ensures their continued loyalty and transforms them into advocates, helping WISPs and enterprises expand their business.
PROVEN RELIABILITY has created an unsurpassed connectivity standard in many industries that depend on fixed wireless broadband. Our products undergo rigorous testing and are made from high-quality components.
Rapidly extend networks to reach new business and residential subscribers.
Service providers can rapidly expand coverage areas to offer secure broadband connectivity for video, voice, and data applications. Cambium Networks wireless broadband solutions can be optimized for urban, suburban, rural, or remote locations. PTP and PMP solutions are proven in thousands of networks around the world, with more than 4 million modules deployed.
