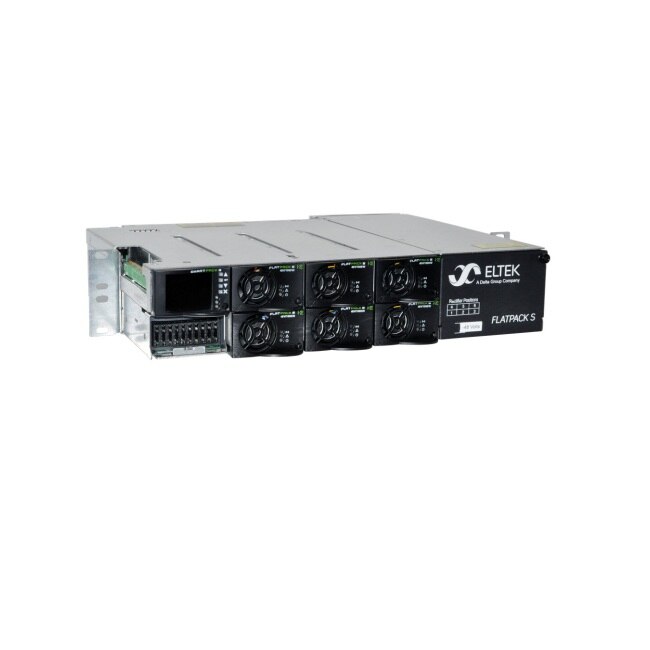

Eltek FPS 2U System, -48V/200A Output, Rear Wire, LVBD - 19" / 2RU / Mid or Flush Mount

Eltek FPSK59I-ANL-VC

FPS 2U System, -48V/200A Output, Rear Wire, LVBD - 19" / 2RU / Mid or Flush Mount

The Flatpack S 2U DC power system delivers up to 200 A to applications where space is limited. Use of the highlyefficient and reliable Flatpack S rectifier, the advanced Smartpack S controller, and remarkably flexible front-access distribution make for optimal system design and costeffective deployment.

The compact size of the system makes it perfect for use in 19" or 23" wide racks and cabinets. And at 2U high, there’s more room for technicians to connect cables and work inside the system. Horizontal cabling reduces vertical space requirements and connections are all front or rear access. Built as a plug-and-play system, the Flatpack S 2U reduces installation time and enables cost-effective deployment.

Eltek’s Flatpack S high-efficiency rectifiers power the Flatpack S 2U, and typically achieve efficiency levels above 95 percent at 48V DC output.

When combined with Eltek’s advanced Smartpack S controller, the system provides remote monitoring, maintenance and data collection.

Applications

The Eltek Flatpack S 2U system is a highefficiency power solution with an optimal footprint for up to 200A applications where space is limited – both in racks and various cabinet installations.

The Flatpack S 2U is a two rack-unit high system that delivers 24V and 48V DC power to telecom infrastructure that include: 4G/LTE, FTTX, distributed antenna systems (DAS), microwave broadband, cable broadband, telephony servers and switches and fiber-optics.

Features:

• COMPACT DESIGN Small overall dimensions are ideal for both rack and cabinet applications.
• FRONT/SIDE OR REAR ACCESS CONNECTIONS The AC connections, DC loads and controller connections (alarms, communication, etc.) are all front or all rear access. Horizontal cabling reduces vertical space requirements.
• DIGITAL CONTROLLER The Smartpack S digital controller system provides comprehensive monitoring and regulation by utilizing a variety of specialized data collection.
• HEAT MANAGEMENT Flatpack S modules feature front-toback airflow and chassis-integrated heat-sinks, supplementing highefficiency energy conversion with excellent heat management.
• COST-EFFICIENCY A true plug-and-play system, the Flatpack S 2U system reduces both time-to-install and overall costs.
