IlSintech All-in-one Active V-Groove Alignment Fusion Splicer Kit
- SKU: SWIFT KF4A-HDC KIT
- Manufacturer: ILSINTECH
- Data Sheet: Download
Product Information

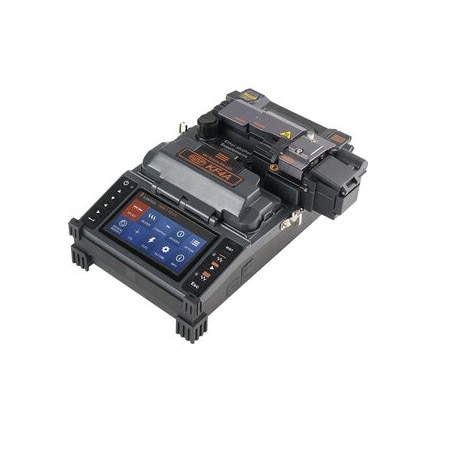

IlSintech SWIFT KF4A-HDC KIT
All-in-one Active V-Groove Alignment Fusion Splicer Kit
The new KF4A-HDC Kit utilizes the power of the Swift KF4A, an All-In-One, active cladding alignment fusion splicer, with the HDCFT Accessory Kit, allowing technicians to install hardened splice-on connectors in the field. This powerful duo equips technicians to perform the major 5 functions systematically: stripping, cleaning, cleaving, splicing and protecting; as well as installing a fully compatible OptiTap® Style hardened solution, ideal for harsh environments.
UCL Swift’s fusion splicers integrate thermal stripping, cleaning, cleaving, splicing and protecting in to one convenient unit, reducing installation time and improving connection reliability. The All-In-One system provides an excellent working platform for high productivity.
Kit Includes:
- Swift KF4A-HDC Arc Fusion Splicer Body
- Drop Cable Snap Arm Mount (Mounting Studs)
- Carrying Case Hard Case
- EI-24 Spare Electrodes
- CT-01 Cooling tray
- KF-3400 Battery
- Allen Wrench
- AC Charger
- KF4-SC/FC Splice on Connector Holder
- HS-900(Pair) Fiber Holder, 900 micron
- HS-250(Pair) Fiber Holder, 250 micron
Specifications
Specifications SWIFT KF4A-HDC KIT
| Fiber alignment | IPAAS Clad to Clad Alignment |
| Applicable type of fibers | 0.25mm; 0.9mm; 2.0mm; 3.0mm Indoor cable |
| Fiber count | Single fiber |
| Applicable fiber dimensions | Cladding diameter: 125㎛; Coating diameter: 150㎛~3mm |
| Fiber setting and cleaved length | 0.20in to 0.63in |
| Splicing modes | Splice mode: 300; Heat mode: 100 |
| Typical splice Loss | SM: 0.02dB; MM: 0.01dB; DS:0.04dB; NZDS: 0.04dB |
| Return loss | > 60dB |
| Splicing time | Typical 7sec. with SM |
| Splice loss estimate | Available |
| Sleeve heating time | Typical 13sec. with IS-60 mode, IS-60 sleeve |
| Applicable protection sleeve | 40mm (2.4in); 60mm (1.5in) micro sleeves |
| Storage of splice result | Data: up to 5,000ea; Image: up to 5,000ea |
| Tension test | 1.96N to 2.25N |
| Operating condition | Altitude: 0~5,000m above sea level, Temperature: -14℉~122℉, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof |
| Storage condition | Temperature: -40˚C~80˚C (40˚F~176˚F); Humidity: 0~95% |
| Dimension | 132(W) x 212(L) x 73(H)mm (without rubber protector) 5.19" x 8.34" x 2.87" inch |
| Weight | 1.5kg (Including battery) 3.30 lbs. |
| Viewing method and display | 2 AXIS Two CMOS cameras with 109mm (4.3in) color LCD monitor |
| Fiber view and magnification | X/Y: 110X; Max:220X |
| Power supply | Li-ion battery (DC 14.8V, 3400mAh); 100 ~ 240V AC Charger |
| No. of splice cycles with battery | Typical 200 cycles |
| Electrode life | Up to 38,000 splices |
| Blade life | Up to 75,000 fibers |
| Terminals USB |
