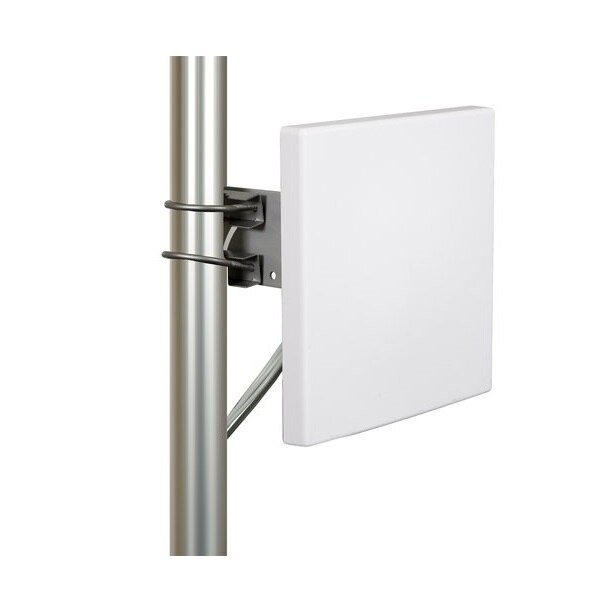

KP Performance 2.4 GHz to 2.5 GHz + 5.1 GHz to 7.2 GHz, 6 dBi, 4x4 MIMO Flat Panel Antenna, 4 port RG58 pigtail with N Female Connector
- SKU: KP-26-QPFP-6-NF
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance KP-26-QPFP-6-NF
2.4 GHz to 2.5 GHz + 5.1 GHz to 7.2 GHz, 6 dBi, 4x4 MIMO Flat Panel Antenna, 4 port RG58 pigtail with N Female Connector
The KP-26-QPFP-6-NF Wi-Fi 6e 4x4 MIMO Flat Panel Antenna is a high-performance directional antenna designed for the 2400 MHz to 7125 MHz bands and is available to ship same day. It features 4 (four) pigtails terminated with Type N Female connectors for 4x4 MIMO applications. It is a UV protected, outdoor rated antenna with 60 degree horizontal half power beamwidth. The KP Performance KP-26-QPFP-6-NF is ideally suited for 802.11 protocols including 802.11ax as well as IoT, Zigbee and Bluetooth.
The KP Performance high performance flat panel KP-26-QPFP-6-NF is a rugged antenna providing broad coverage, low latency, increased network capacity and 6 dBi gain. This 4 port N Type Female flat panel directional antenna is suitable for commercial radios and access points in public and private networks that are equipped with N Male connectors. KP Performance’s KP-26-QPFP-6-NF supports 2.4, 5 and 6 GHz bands.
The KP-26-QPFP-6-NF 60 degree, Wi-Fi 6e panel antenna with 4 N Type Female connectors ships same day. Contact the KP Performance friendly and knowledgeable staff for your answers on any of our antennas.
Specifications
Specifications KP-26-QPFP-6-NF
| Frequency Range | 2.4 to 2.5 GHz and 5.1 to 7.2 GHz |
| Polarization Type | H/V |
| Gain | 6 dBi |
| Vertical Beamwidth | 65° |
| Horizontal Beamwidth | 65° |
| F/B Ratio | 20 dB |
| VSWR | 2.1 |
| Impedance | 50 dB |
| Port Isolation | 28 dB |
| Connector Type | N-Female |
| Mounting Mast Diameter | 1.57 to 2.36 in |
| Weight | 4.62 lbs |
| Dimension | 9.8 in L x 9.8 in W x 1.6 in H |
