Laird Technologies 2.4GHz 7dBi Omnidirectional Antenna with 5 deg Electrical Downtilt
- SKU: OD24-7D5
- Manufacturer: Laird Technologies
- Data Sheet: Download
Product Information

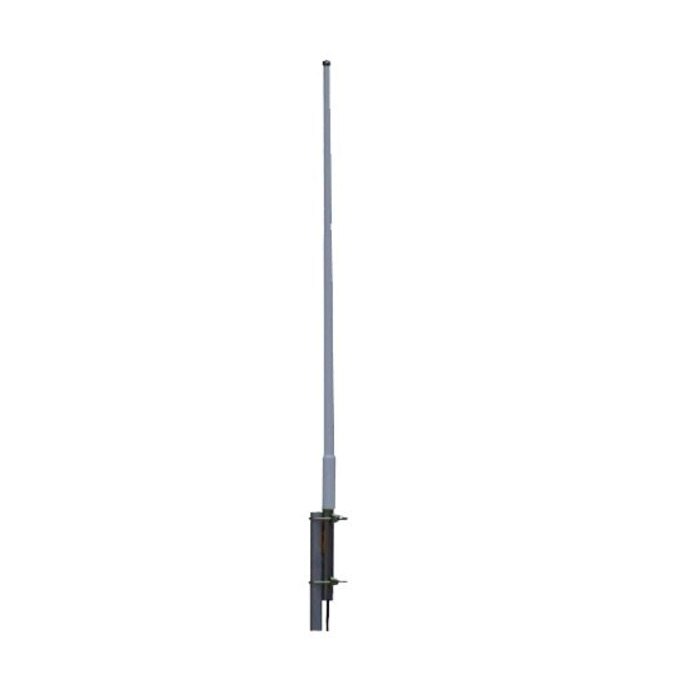

Laird Technologies OD24-7D5
2.4GHz 7dBi Omnidirectional Antenna with 5 deg Electrical Downtilt
The OD24-7D5 from Laird (formerly Pacific Wireless) is part of our economical series of omni-directional fiberglass base station antennas. Constructed of UV-Stable Fiberglass with all stainless steel brackets and heavy duty mounting hardware, included.
This antenna is tuned for the 2400-2485 MHz WI-Fi/WLAN frequency band and offers high performance in a rugged, lightweight and waterproof package.
Features:
- Frequency: 2400-2485 MHz WI-Fi/WLAN frequency band
- Gain: 7 dBi
- Length: 21 inches
- Special UV Treated - stands up to the sun over years of service.
- Heavy duty mounting bracket – included.
- Five Year Factory Warranty.
Specifications
Specifications OD24-7D5
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 2400-2485 MHz |
| Gain | 7 dBi |
| Antenna Style | Omnidirectional Basestation Antenna |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | 1.5:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Vertical/Elevation Beamwidth | 5 |
| Height/Length (inches) | 21 |
| Height/Length (mm) | 533.4 |
| Thickness/Diameter (inches) | 0.6 |
| Thickness/Diameter (mm) | 15.24 |
| Weight (lbs) | 1.1 |
| Weight (grams) | 498.95 |
| Operating Temp (celsius) | (-40 to 70) |
| Color | Grey |
| Connector 1 | N-Female |
| OK for Outdoor Use | Yes |
| Vehicular | No |
| Ground Plane Required | No |
