LightSaber 36RU 30" Wide x 30" Deep Outdoor Cabinet with Battery Box, Side Chamber Cabinet and AC 1500W (5.1K-Btu) Air conditioner NEMA 4X Rated|Grey
Product Information
LightSaber LSO-36UOD-1012762-AC1500-H

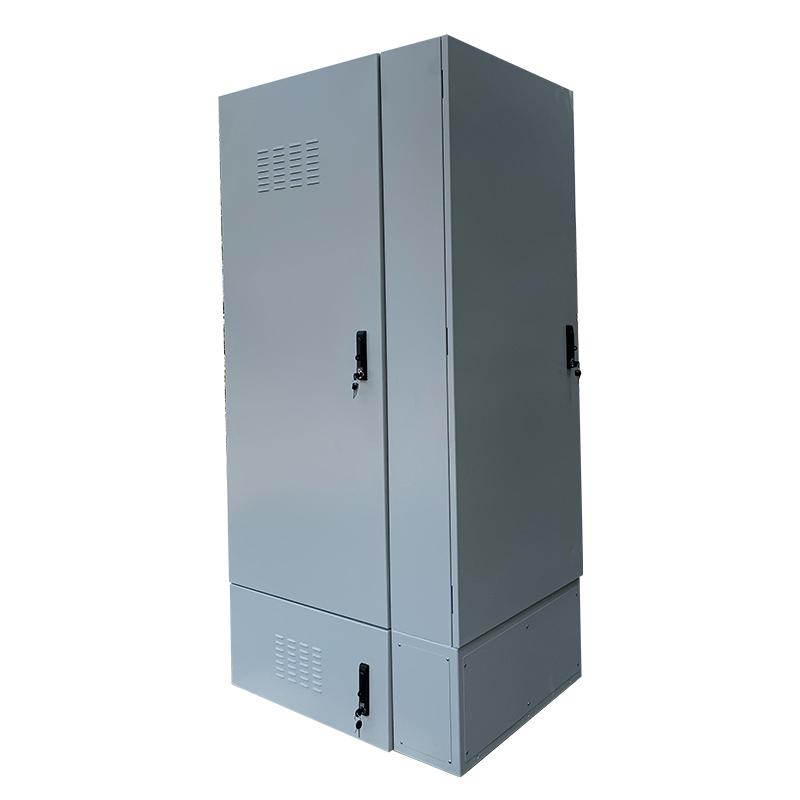

LightSaber LSO-36UOD-1012762-AC1500-H 36U Outdoor Aluminum Enclosure with AC1500W Air Conditioner
LightSaber's aluminum outdoor cabinets are designed to meet NEMA 4-rated standards, ensuring outstanding environmental protection of your network equipment. This 36U cabinet was constructed with a main cabinet, bottom battery box, and side chamber cabinet, configured with an AC110V 60Hz air conditioner, with a 1000W heater. They are mainly used for wireless communications to house various equipment, including the new generation of 5G systems, LTE networks, communication networks/network integrated services, access/transmission switching stations, and emergency communication/transmission. It is designed for various applications and can be tailored to your needs.
The air conditioner is installed on the cabinet to keep a stable temperature inside the cabinet to increase the service life and stability of the equipment. It provides a secure, thermally managed environment for telecommunications and cable applications.
Features:
- Fully assembly
- 3-point locking system
- 36U equipment space
- 19inch or 23inch dual equipment rails
- AC110V 60Hz 1500W(5118 BTU) Air conditioner
- Front door and rear door opening access
- Bottom battery box and Side chamber cabinet pre-mount on the cabinet
- Wind stop bracket to hold the doors when opening
- Grounding copper bar
- Document box at the rear door for storing the equipment manual or useful document
- Cable entry holes with grommet on the bottom
It also comes with:
- 2x DC48V emergency fan (with temperature controller)
- 2x DC48V LED lights( 1pcs at front top,1pcs at rear top)
- 2x Front Door alarm sensors and 2 x rear door alarm sensors (1 sensor is connecting to the DC48V LED light; the light will be ON when the door opens and OFF when the door closes; 1 sensor is pre-configured with the EMS unit)
- 1x six outlet PDU
- 30 x M6 cage nut
Specifications
Specifications
| Protection Class | NEMA 4X |
| Rack Unit Size | 36U |
| Cabinet Type | Floorstanding Outdoor Cabinet w/ Air conditioner |
| Color | Grey RAL7035 |
| Material | Aluminum |
| Main Cabinet Unit Dimension(WxDxH) | 30.00 x 30.00 x 68.90 inches (without air conditioner dim.) |
| Internal Depth (Front Rail to Back Door) | 24.69 inches |
| Rail to Rail Depth | 23.03 inches |
| Bottom Battery box Unit Dimension(WxDxH) | 30.00 x 30.00 x 14.57 inches |
| Side Chamber Cabinet Unit Dimension(WxDxH) | 30.00 x 9.84 x 83.46 inches |
| Unit Weight(lbs.) | 484.88 |
| Shipping Dimension(WxDxH) | 44.49 x 40.55 x 89.37 inches |
| Shipping Weight(lbs.) | 639.16 |
| Electrical | |
| Cooling | AC110V/60Hz, 1500W (5118 BTU) air conditioner (Refrigerant: R134a) DC48V Cooling Emergency Fans x 1 (with tem. controller) |
| Heating | 1000W (3400 BTU) heating function incorporated into the air conditioner |
| Grounding | Earthing Copper Bar, Grounding Wires |
| Bottom Battery box | DC48V Cooling Fan x 1 (with tem. controller) |
| Side Chamber Cabinet | Include Single Phase 60AMP generator socket, grounding bar |
| Other | DC48V LED Lights Door Alarm Sensors 6 sockets(NEMA 5-15R outlet) x1pcs |
| Certifications | |
| Safety | CE |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 1 Year |
