Mean Well Switching Power Supplies 600W 30V 20A Power Supply W/PFC
US$257.00
- SKU: HEP-600-30
- Manufacturer: Mean Well
- Data Sheet: Download
Product Information

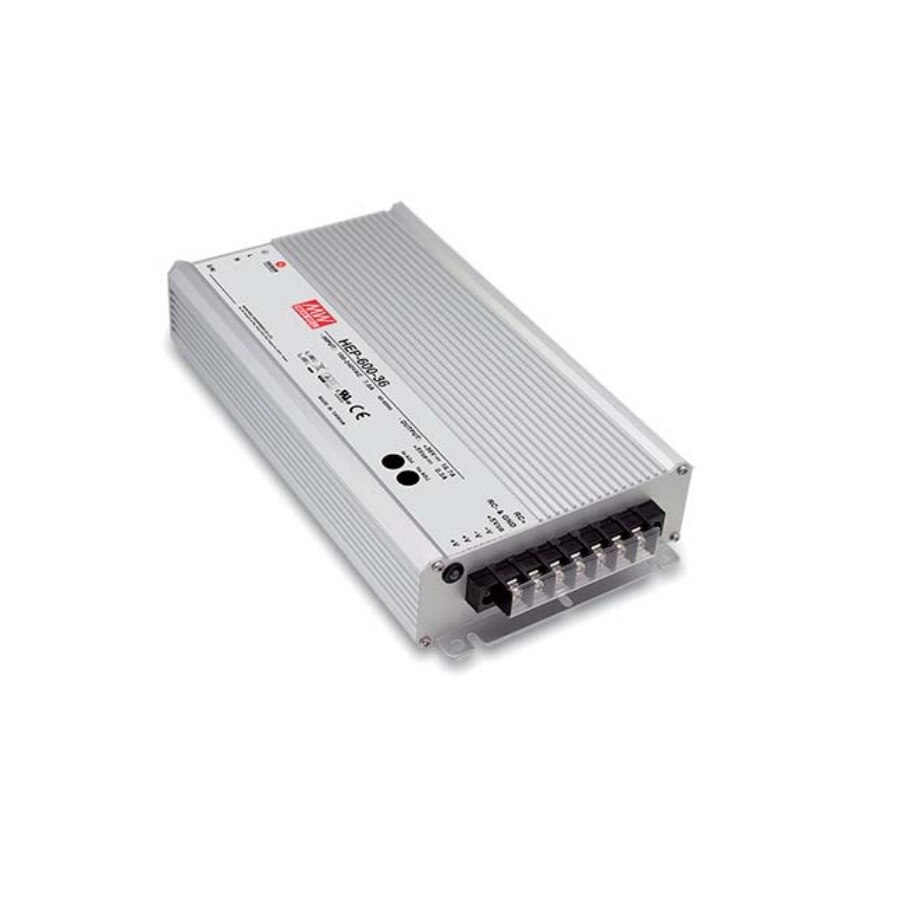

Mean Well HEP-600-30
Switching Power Supplies 600W 30V 20A Power Supply W/PFC
HEP-600 is a 600W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environment. The entire series is housed with the aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 96%, enabling HEP-600 perfectly work between -40°C and +70°C under free air convection.
Features:
- Universal AC input Full range (up to 305VAC)
- Built-in active PFC function
- No load power consumption <0.5W at remote OFF
- High efficiency up to 96%
- Fanless design, cooling by free air convection
- -40 +70°C wide operating range
- Aluminum case and filling with heat-conducted glue
- Withstand 10G vibration test
- Output voltage and output current can be adjusted through internal potentiometer
- Protections: Short circuit /Over temperature Over current Over voltage
- LED indicator for power on
- Operating altitude up to 5000 meters (Note.7)
- 6 years warranty
Applications:
- Outdoor telecommunication equipment
- Outdoor electronic signage and billboard
- Petroleum plant or mine shaft facility
Specifications
Specifications HEP-600-30
| Series | HEP-600 | |
| Application | ITE EN/UL/IEC 60950 | |
| Technology | AC/DC | |
| Power Format | Box Type - Enclosed | |
| Output Power (W) | 600 | |
| Output Current (A) | 5 | |
| Output Voltage (V) | 30 | |
| Input Voltage (V) | 90 - 305 Universal Input 110/230V | |
| IP Rating | No IP assigned | |
| Width (mm) | 144 | |
| Height (mm) | 48.5 | |
| Depth (mm) | 280 | |
| Dimming Technology | No Dimming | |
| Commodity | 8504409090 | |
| Warranty pack | 36 Months Bring-In | |
| RoHS | Compliant | |
| Net weight (gram) | 3900 | |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
