MikroTik QSFP28 Module 10km
- SKU: XQ+31LC10D
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information

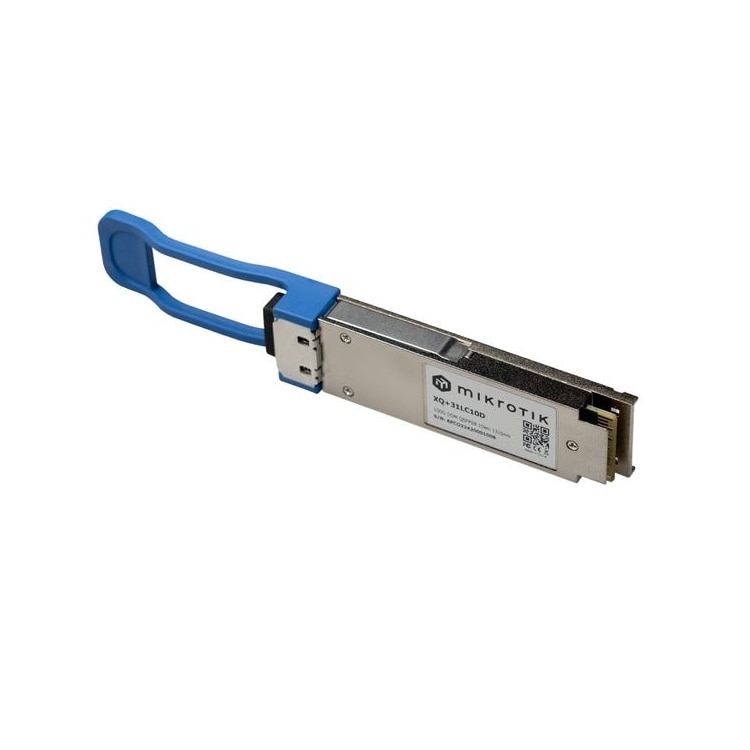

MikroTik XQ+31LC10D
QSFP28 Module 10km
Add this QSFP module for distances up to 10 kilometers to your CCR2216, CRS504 or CRS518 setups and enjoy real speed and ultimate reliability. This optical module offers four independent full-duplex channels with up to 25 Gbps per channel bandwidth and an aggregate bandwidth of 100 Gbps. The module has built-in digital diagnostic functions such as optical power monitoring.
The module has built-in digital diagnostic functions such as optical power, transceiver supply voltage, temperature, laser bias current monitoring, and other key parameter monitoring. These options can be helpful not only to alert the user during abnormal transceiver activity but also if specific customizable operating limits are exceeded. Monitoring allows you to plan ahead, make informed decisions and predict necessary upgrades or maintenance based on the transceiver performance
Specifications
Specifications XQ+31LC10D
| Weight | 0.12 lb | |
| Connector | LC | |
| Data rate | 100G | |
| Distance | 10km | |
| Format | QSFP28 | |
| Mode | SM | |
| Wavelenght | 1296, 1300, 1305, 1309 nm | |
| Max power consumption | 4.5W | |
| Temperature | 0°C .. +70°C |
| Optical characteristics | Min. | Max. | |
| Transmitter | |||
| Output optical power (Avg.) | -4.3 dBm | 4.5 dBm | |
| Receiver | |||
| Rx sensitivity (Avg.) | -8.6 dBm | ||
| Max input optical power (Avg.) | 4.5 dBm | ||
| LOS de-assert(Avg.) | -12 dBm | ||
| LOS assert (Avg.) | -25 dBm |
