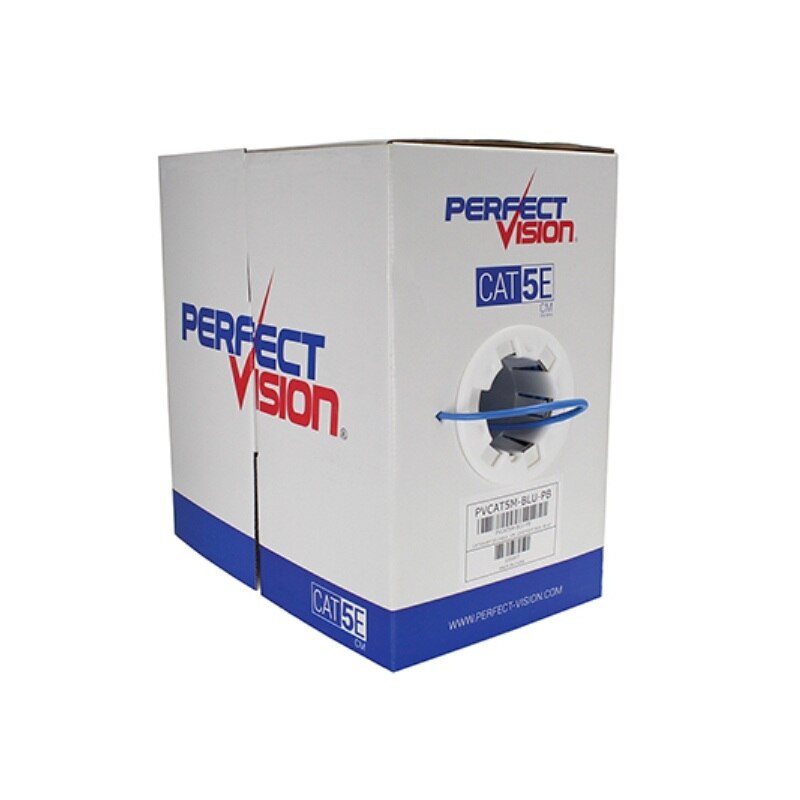

Perfect Vision Category 5e Cable, CM, BLU (Blue), 1000' Pull Box
US$103.38
- SKU: PVCAT5M-BLU-PB
- Manufacturer: Perfect Vision
- Data Sheet: Download
Product Information
Perfect Vision PVCAT5M-BLU-PB
Category 5e Cable, CM, BLU (Blue), 1000' Pull Box

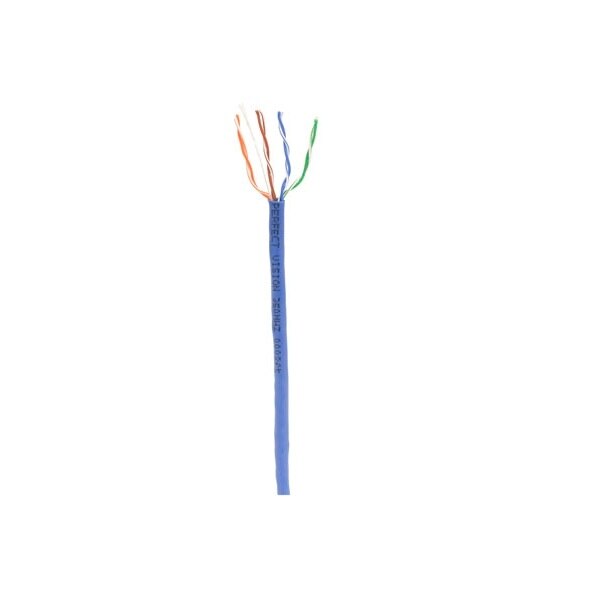

Category 5e Cable 4 Pair, 24 AWG, Solid Bare Copper Conductors, HDPE Insulation, Ripcord, FR-PVC Jacket
Features:
- Four pair twisted 24 AWG solid copper conductors with HDPE insulation
- Suitable for VOIP and Telephony
- ETL Listed
- Color:Blue
- For outdoor applications
- 1000 ft pull box
Specifications
Specifications PVCAT5M-BLU-PB
| Number of Pairs | 4 |
| Total Number of Conductors | 8 |
| AWG | 24 (0.49 mm) |
| Conductor | Solid Bare copper |
| Insulation Material | HDPE |
| Outer Jacket OD | 0.201 in |
| Outer Jacket Material | FR-PVC |
| Outer Jacket Ripcord | Yes |
| Cable Weight | 20 lb/1000 ft (9.1 kg/km) |
| Max Recommended Pulling Tension | 35 lb (16 kg) |
| Min Bend Radius (Install) | 1.0 in (2.5 cm) |
| Jacket Color | Blue UV ressistant |
| ELECTRICAL CHARACTERISTICS | |
| Impedance 1 MHz to 100 MHz | 100 Q ± 15 Q |
| Nominal Mutual Capacitance @ 1 KHz | 15 pF/ft |
| Maximum Capacitance Unbalance | 330 pF/100 m |
| Nominal Velocity of Propagation | 70% |
| Maximum Delay (ns/100 m) @ 100 MHz | 538 ns |
| Maximum Delay Skew | ≤ 45 ns/100 m |
| Maximum DCR Unbalance @ 20 °C | ≤ 5% |
| Maximum Conductor DC Resistance @ 20 °C Certified to 100 MHz, Swept to 350 MHz | 9.38 0/100 m |
| Max Operating Voltage (UL) | 300 V RMS |
| UL | CM |
| Swept Certification | Swept to 350 MHz Certified to 100 MHz |
| Transmission Standards | TIA/EIA-568-C.2, ETL Listed, ISO/IEC 11801 Class D |
| ENVIRONMENTAL CHARACTERISTICS | |
| Operating Temperature | -22 °F to +194 °F (-30 °C to +90 °C) |
| Installation Temperature | 14 F to +140 °F (-10 °C to +60 °C) |
| Weight | 21 lbs. |
| Size | 13.78 in. wide x 7.87 in. high x 13.78 in. deep |
