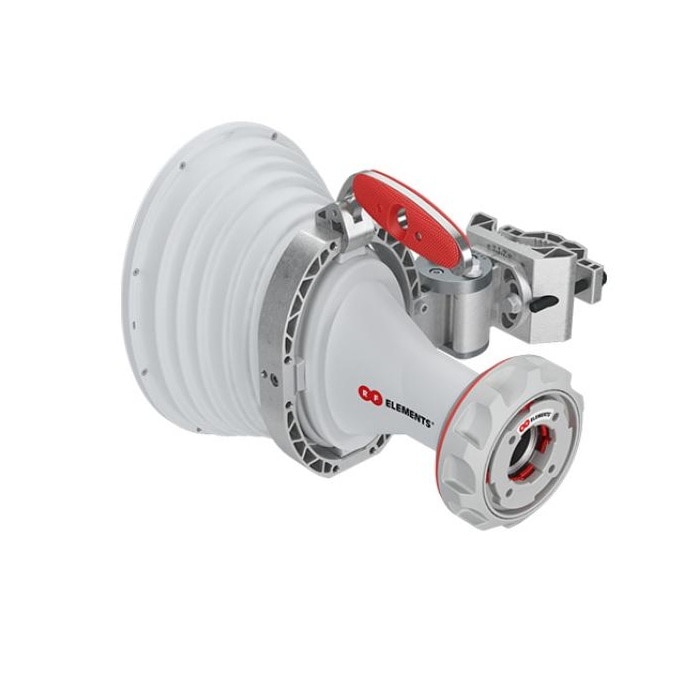

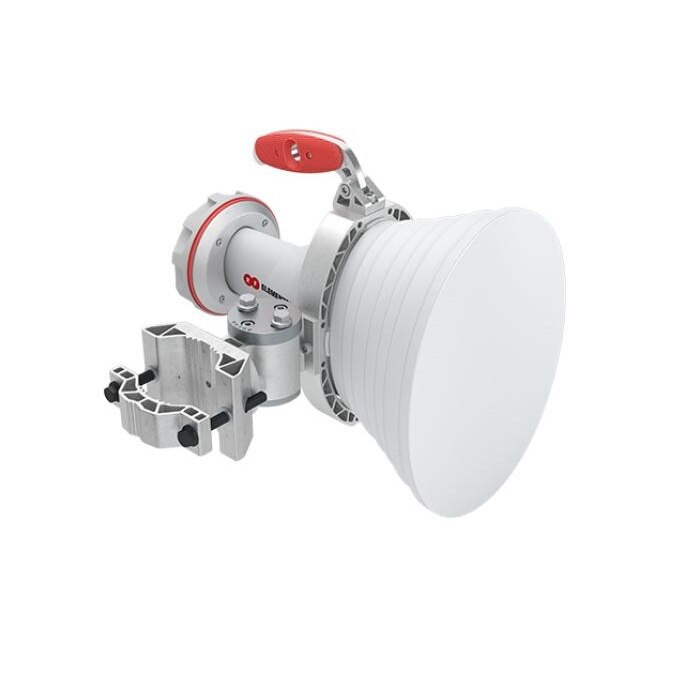

RF Elements 5GHz 20.5dBi 30 degree Asymmetrical Beam Horn Antenna
- SKU: AH2030-TP
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information
RF Elements AH2030-TP
5GHz 20.5dBi 30 degree Asymmetrical Beam Horn Antenna
30° Asymmetrical Horn TP Antenna has high gain and zero side lobes, meaning very high beam efficiency. Its radiation pattern is wide in the azimuth and narrow in the elevation plane. The stability of gain, radiation pattern, and resulting coverage is excellent across the whole useful bandwidth. These properties and outstanding noise rejection favor 30° Asymmetrical Horn TP Antenna to be used in high customer density and co-location sites. TwistPort™ - our revolutionary patent-pending twist-and-lock waveguide port enables connectivity to a wide range of third-party radios using TwistPort™ Adaptors.
BeamSwitch™ feature enables mounting of the antenna with 90° rotation by swapping the position of the handle and the bracket. AH2030-TP thus can provide 20° azimuth and 30° elevation beamwidth option. The extruded aluminium ring improves the structural strength of the antenna attachment and makes the BeamSwitch™ flip easy and fast.
Specifications
Specifications AH2030-TP
TECHNICAL | |
Antenna Connection | TwistPort™ - Quick Locking Waveguide Port |
Antenna Type | Horn |
Materials | UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel |
Enviromental | IP55 |
Pole Mounting Diameter | 40-80 mm (we recommend as close to 80mm as possible) |
Temperature | -35°C to +60°C (-31°F to +140°F) |
Wind Survival | 160 km/hour |
Wind Loading | 67 N at 160km/h |
Mechanical Adjustment | ± 20° Elevation, ± 20° Azimuth |
Weight | 4.2 Kg / 9.2 lbs – single unit* 6.3 Kg / 13.8 lbs – single unit incl. package* |
Single Unit | Retail Box: 483 × 334 × 235 mm / 19.0 x 13.1x 9.2 inch* |
PERFORMANCE | |
Frequency Range | 5180 - 6000 MHz |
Gain | 20.5 dBi |
Azimuth Beam Width | -3 dB H 21° / V 21° |
Elevation Beam Width | -3 dB H 15° / V 15° |
Azimuth Beam Width | -6 dB H 30° / V 30° |
Elevation Beam Width | -6 dB H 20° / V 20° |
Beam Efficiency | 95% |
Front-to-Back Ratio | 35 dB |
