RF Elements 5 GHz 60° 4x4 Asymmetrical Horn Antenna
- SKU: AH60-4X4-SMA
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information

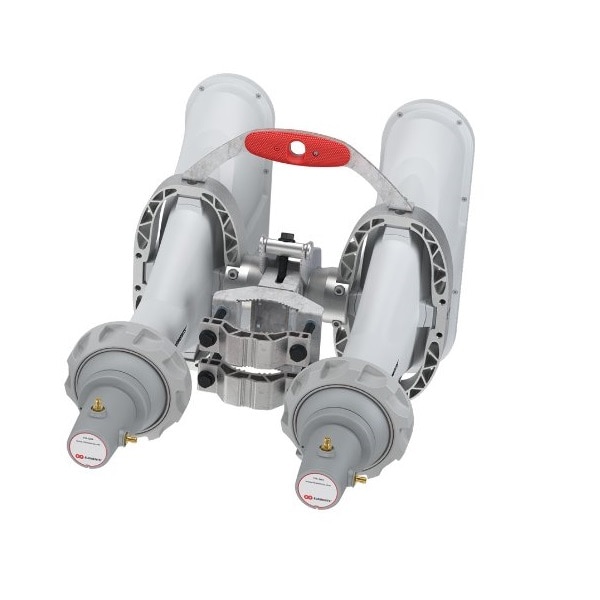

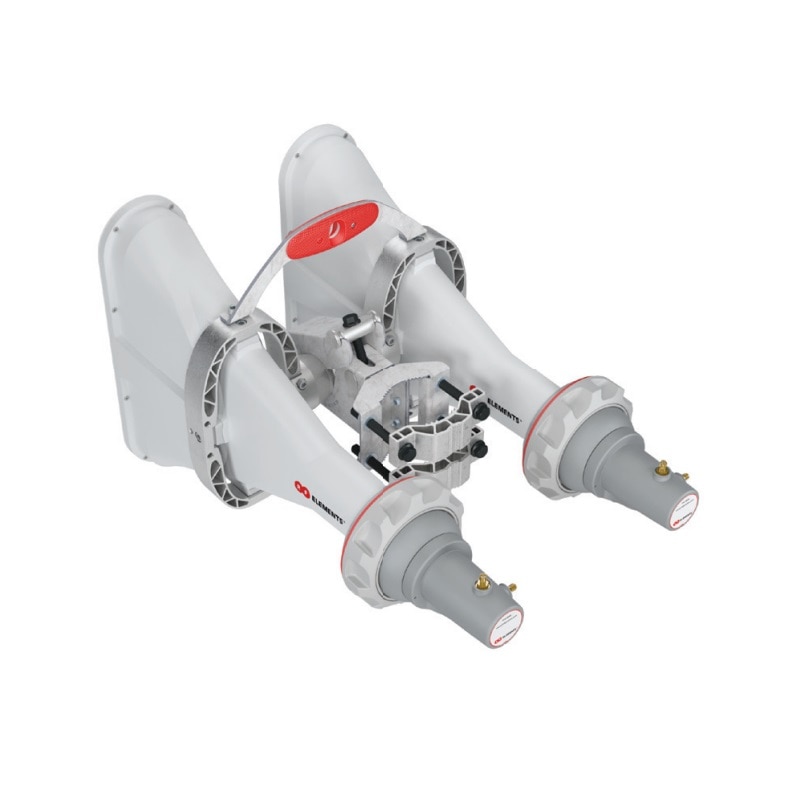

RF Elements AH60-4X4-SMA
5 GHz 60° 4x4 Asymmetrical Horn Antenna
This 5 GHz 4x4 Asymmetrical Beam antenna is designed for excellent performance with MU-MIMO radios, such as ePMP 3000 or ePMP 4500. 4x4 Antenna Array is based on Award Winning 60° Asymmetrical Horn Antenna elements. Overall radiation pattern is 60° wide in the azimuth plane and 25° in elevation.

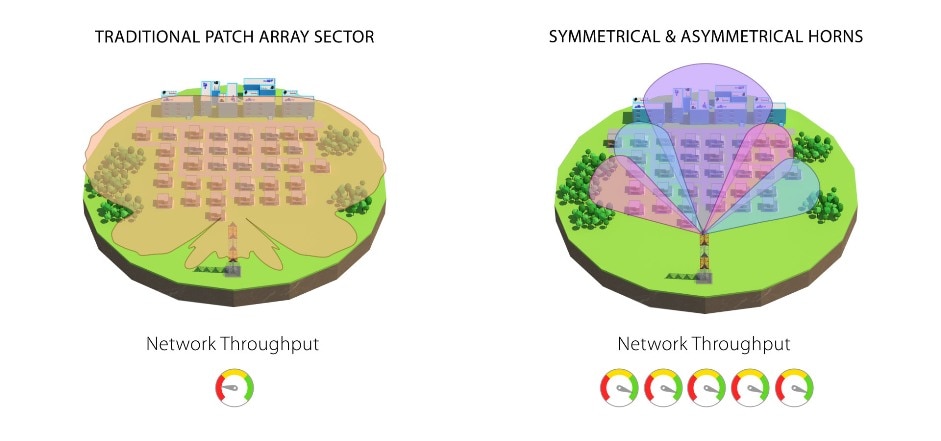

Outstanding noise rejection and precision of the radiation pattern throughout the bandwidth of operation favor the antenna for high-density access point clusters and densely co-located sites. Antenna features RP-SMA female connectors and integrated mount of ePMP 3000 4x4 radio
Asymmetrical Horn antennas were awarded WISPA Product of the Year 2019, 2020 and 2021 Awards.
Features:
- 4x4 Sector Horn antenna.
- 17dBi Antenna gain.
- 60° Radiation angle.
- Excellent noise rejection.
- Innovative bracket for easy installation.
- Integrated bracket for Cambium ePMP 3000 4x4 units.
Best-in-Class Performance
Ultimate Mu-MIMO Performance with Cambium Networks ePMP
Integrated Radio Mount

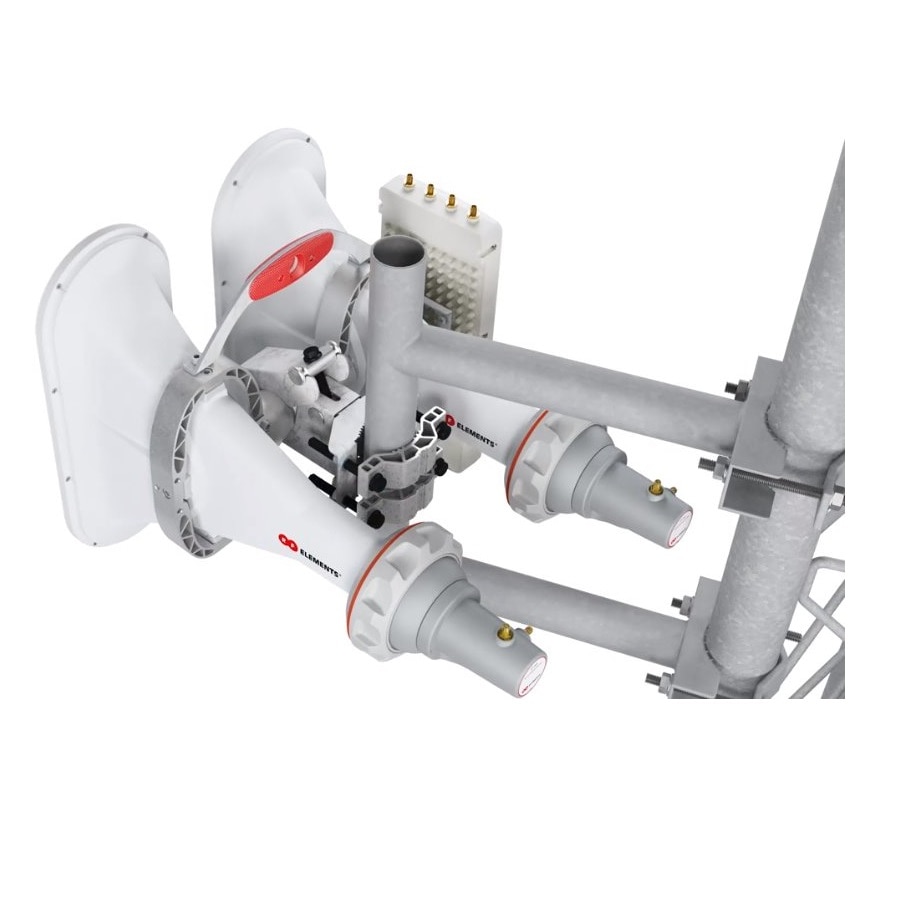

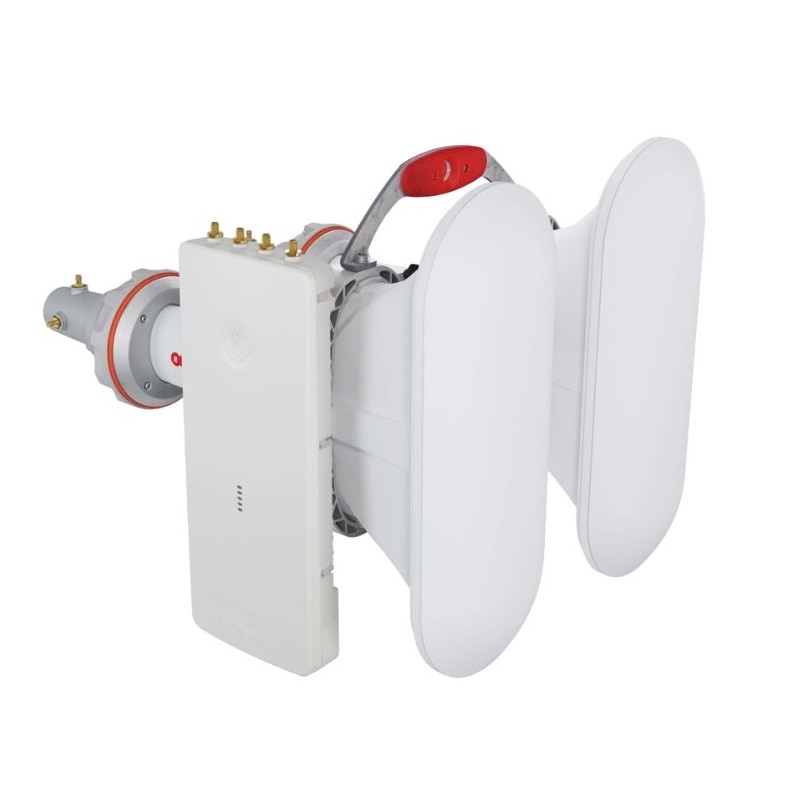

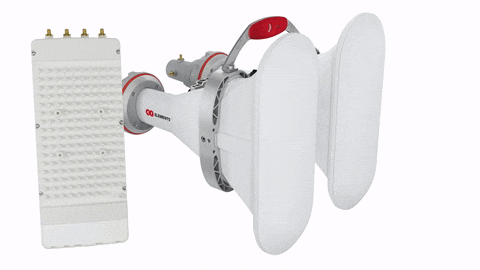

4x4 Asymmetrical Horn Antennas are equipped with integrated mount for 4x4 connectorized radios from Cambium Networks and Mimosa. Cambium NetworksTM ePMP 3000 AP radio can be easily mounted directly on the antenna for smooth installation. Matching high quality RP-SMA pigtails are delivered in the package with the antenna.
Built Like a Tank

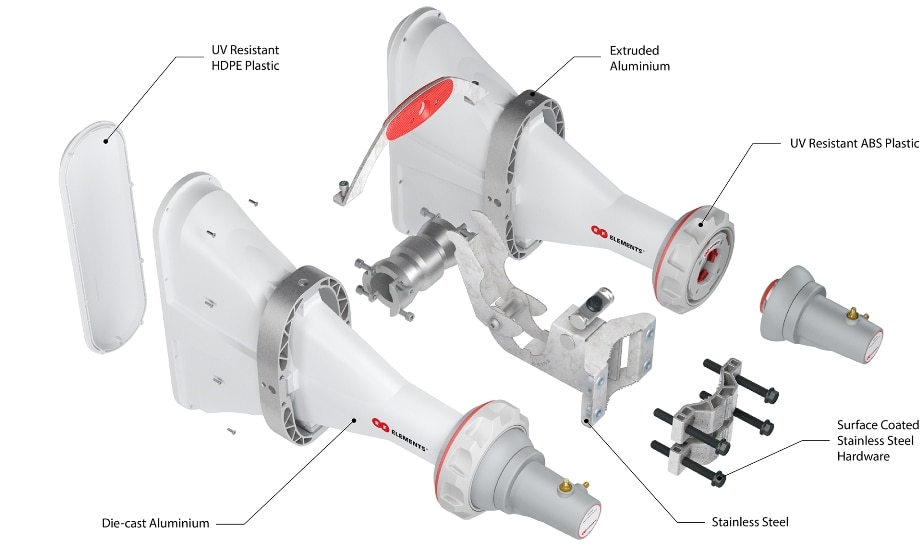

4x4 Asymmetrical Horn Antennas are built as an array of award winning 2x2 Asymmetrical Horn Antennas. Antennas have solid aluminium body, are built to last and to resist harsh weather conditions. We use the premium materials: die cast and extruded aluminium, stainless steel, high quality ABS plastic and high density polyethylene. Innovative mounting system is built of massive stainless steel. Hardware is made of stainless steel with black surface coating to prevent galling at installation.
Innovative Bracket

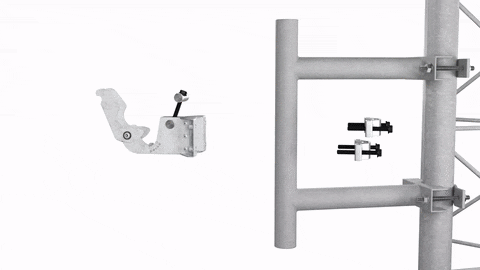

4x4 Asymmetrical Horn Antennas feature an innovative mounting system. The mount is separated from the antenna, making the installation and adjustment quick and easy. First install the bracket on the pole with the correct azimuth orientation. After that simply slide the antenna in the bracket. The safety hook and grooves will safely keep the antenna in place. Adjust the elevation and tighten the bolts to finish the installation. Only one tool is needed for the entire installation.
Specifications
Specifications AH60-4x4-SMA
Radio Connection | 4x RP-SMA Female Connector |
Pigtails | 4x RP-SMA Male Connector 750mm (29.5 inch) |
Antenna Type | Horn |
Materials | UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel |
Environmental | IP55 |
Pole Mounting Diameter | 40-80 mm (1.5-3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible, recommended mounting on stand off bracket |
Temperature | -35°C to +60°C (-31°F to +140°F) |
Wind Survival | 160 km/h (100 mi/h) |
Wind Load | 80/91 N - Front/Side at 160 km/h (100 mi/h)* |
Effective Projected Area | 630/750 cm2 - Front/Side (97.6/116.2 in2 )* |
Mechanical Adjustment | ± 20° Elevation |
Weight | 27.1 lbs |
Dimension | 14.6” x 20.3” x 15.7” |
PERFORMANCE | |

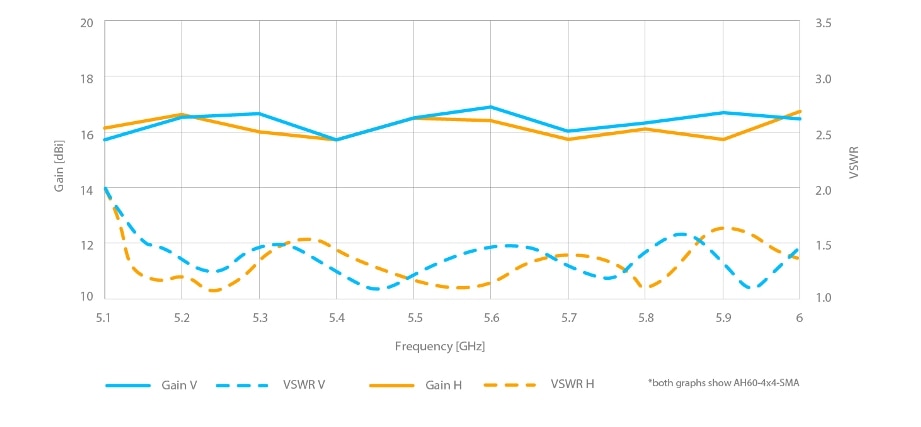

Frequency Range | 5180 - 6000 MHz |
Gain | 17 dBi |
Azimuth Beam Width -3 dB | H 45° / V 42° |
Elevation Beam Width -3 dB | H 17° / V 16° |
Azimuth Beam Width -6 dB | H 60° / V 60° |
Elevation Beam Width -6 dB | H 25° / V 25° |
Beam Efficiency | 90 %** |
Front-to-Back Ratio | 27 dB |
VSWR Typical | 1.5 |
Polarization | Dual Linear H + V |
Impedance | 50 OHm |
