Shireen outdoor shielded cable with messenger, 1000ft
US$271.50
- SKU: DC-1023
- Manufacturer: Shireen
- Data Sheet: Download
Product Information

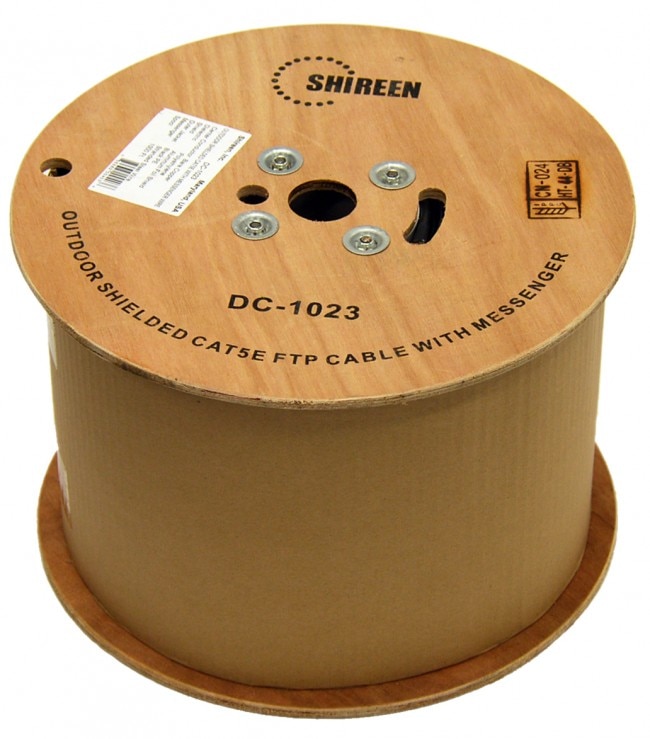

Shireen DC-1023 1000ft, outdoor shielded with messenger
Shireen’s DC-1023 high quality outdoor shielded FTP (Foil Twisted Pair) CAT5e cable. It features 4 twisted pairs of 24 AWG LDPE wire with alluminum foil shielding and messenger wire. Excellent for use in all outdoor applications of networking, data transfer and phone lines
- Outer Jacket:LDPE
- Ethernet Cable Type:Cat5e
- Ethernet Cable Application:Outdoor
- Ethernet Cable Features:FTP, Shielded, Shielded with Messenger
Specifications
Specifications DC-1023
Conductor
| Pairs | 4 |
| Total Conductor | 8 |
| AWG | 24 |
| Dia. of Conductor | Φ 0.50±0.01mm |
| Material | Solid Bare Copper |
Insulation
| Material | HDPE - Polyethylene |
| Nom. Thickness | 0.24mm |
| Dia. | Φ 0.95±0.05mm |
| Elongation | ≥300% |
Shielding
| Vertical Wrap | Al-Mylar Tape 0.055×18mm |
| Coverage % | 100% |
| AWG | 24 |
| Drain Wire | TC - Solid Tinned Copper |
Sheath
| Material | Outer: LDPE |
| Rip Cord | LDPE |
| Rip Cord | 200D×3 |
| Nom. Thickness | 0.75±0.05mm |
| O.D. | Φ 6.50±0.3mm |
| Color | Black |
