Simply45 Standard Shielded (Internal ground) RJ45 Modular Plugs for Cat5e STP, Blue Tint - 50pcs/Jar

Simply45 S45-1050

Standard Shielded (Internal ground) RJ45 Modular Plugs for Cat5e STP, Blue Tint - 50pcs/Jar

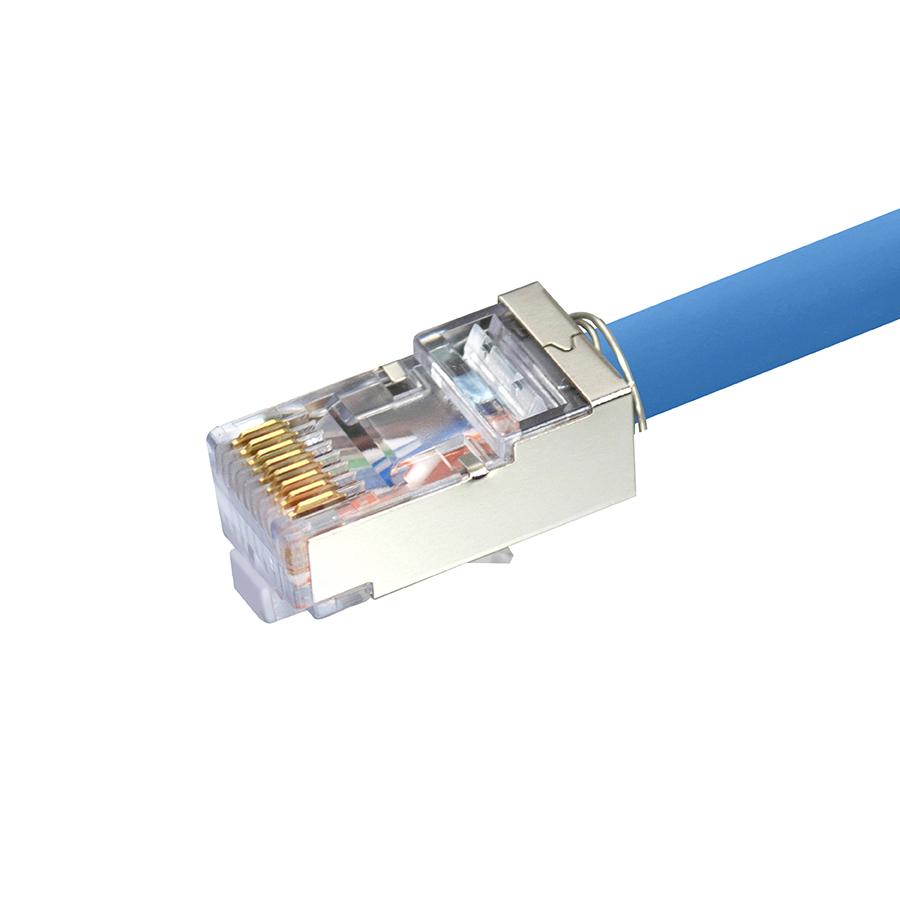

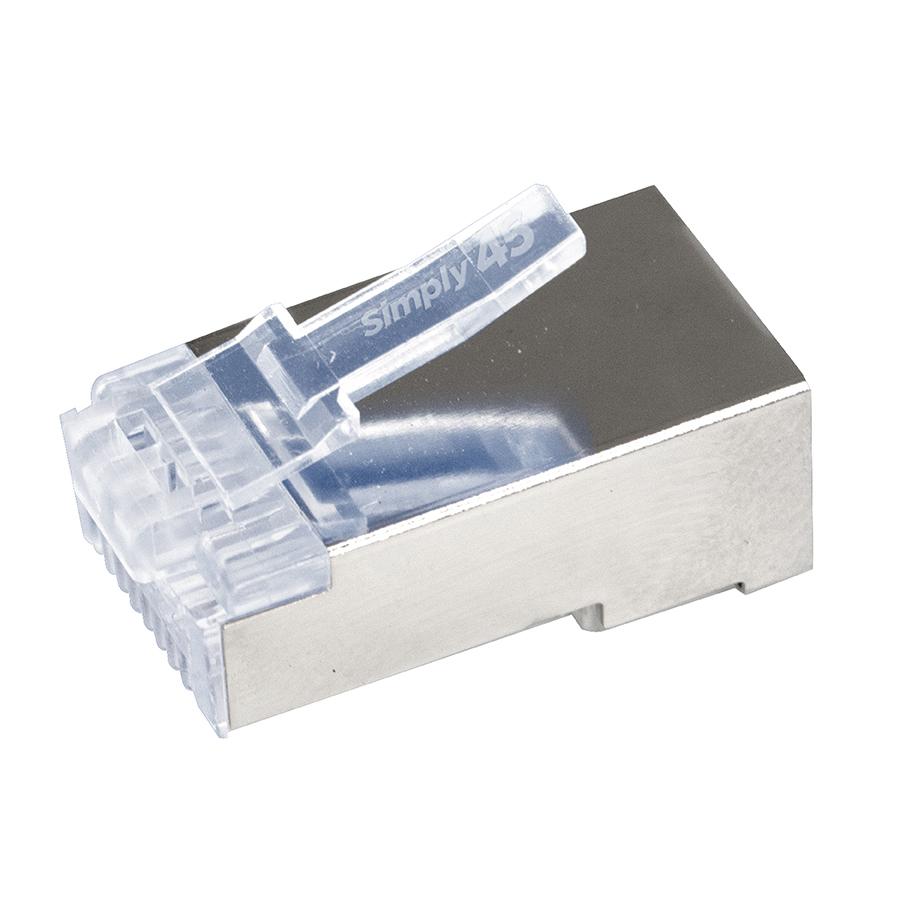

Single Piece Design. The S45-1050 is a single piece fully shielded with internal ground Standard WE/SS RJ45 modular plug for shielded (STP) LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6a, Cat6, and Cat5e.

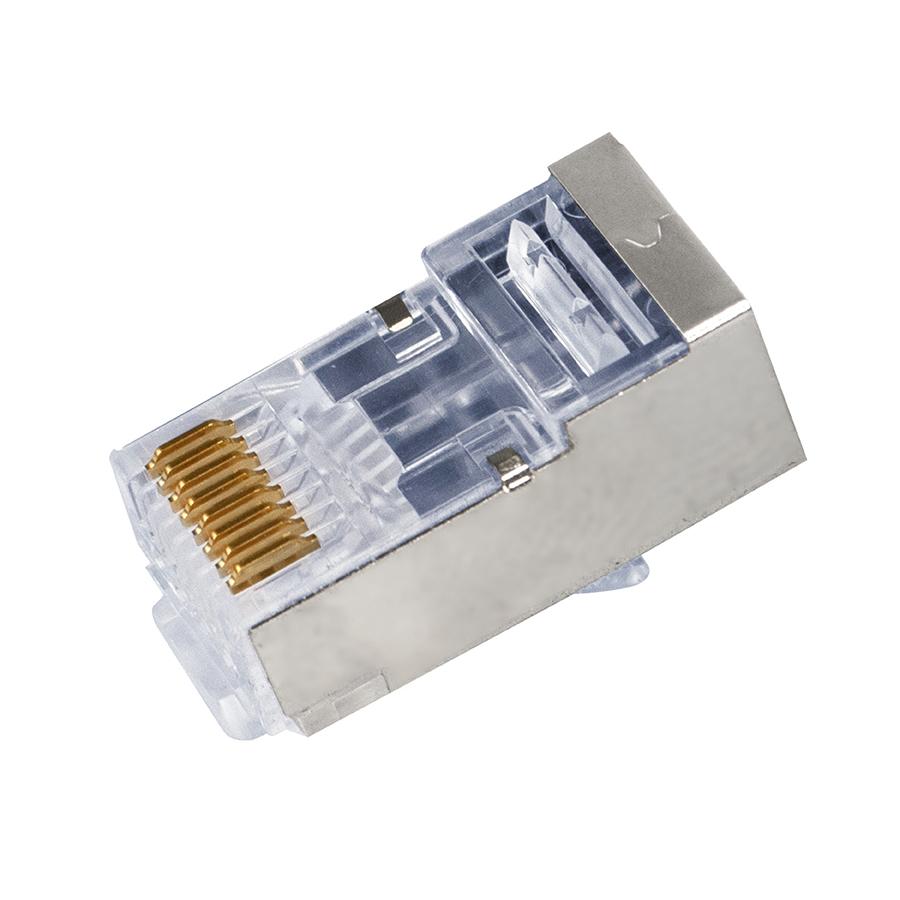

3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45® Standard WE/SS RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signals integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold plated contacts, please click here.

Solid and Stranded LAN Cables. The S45-1050 is ideal for most Cat5e STP (shielded twisted pair) solid 24 AWG LAN cables with a maximum cable diameter up to 1.05mm (0.041”). The S45-1050 supports wire diameters 0.95mm – 1.05mm (0.037” – 0.041”). The S45-1050 also works great with stranded shielded LAN cables such as used on patch cords/leads including 10G rated Cat6a S/FTP patch leads. The S45-1050 works with most 28-26 AWG stranded shielded Cat6a, Cat6 and Cat5e stranded shielded LAN cables. For larger shielded STP wire conductor sizes or larger LAN cable OD found on Cat6 solid STP and Shielded 10G solid LAN cables, please refer to our Simply45® part S45-1150 or S45-1155.

Improved Crosstalk Performance. The unique internal design of the S45-1050 Standard RJ45 modular plug allows the LAN cable to be inserted further into the RJ45 plug. This reduces the length of untwisted wires improving NEXT performance. The S45-1050 accommodates most Cat5e STP LAN cables. If your shielded LAN cable has a larger wire conductor OD than the typical Cat5e shielded STP, we recommend using our part S45-1150 shielded Standard WE/SS RJ45 modular plugs.

Commercial Rated. These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. These RJ45 mod plugs are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.

Color Tinted RJ45 Modular Plugs. The S45-1050 comes with a light blue tinted plug with overall internal ground shielding for easy pass-through RJ45 modular plug identification. No more trouble identifying which plug is which. All Simply45® RJ45 modular plugs are color-coded for easy identification.

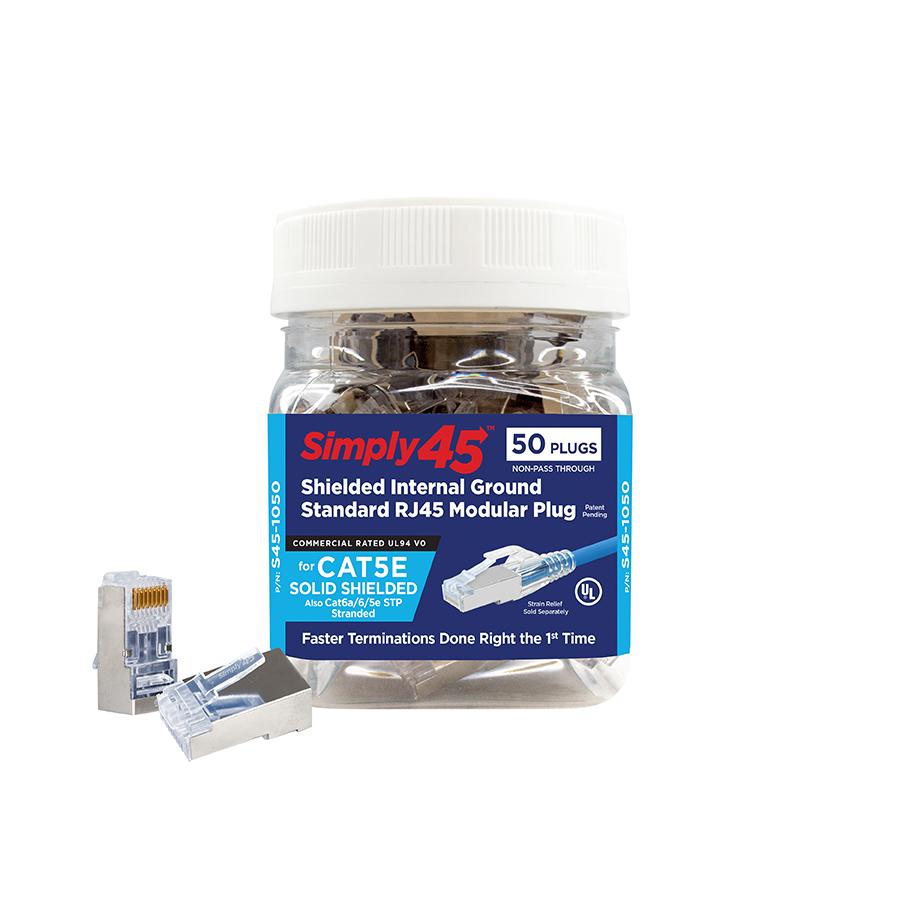

Convenient Plastic Jar. The S45-1050 comes in a convenient 50pc plastic jar with a white jar cap. Simply45® only uses quality packaging to support the rigors of the real world. This jar is sturdy and after using all the plugs, it can be repurposed for other needs in the installer’s kit.

UL Listed. The S45-1050 Standard WE/SS RJ45 modular plugs are UL Listed and bear the UL Logo on the Simply45® packaging. Only Simply45® provides the UL Listed logo for quality and safety on pass-through RJ45 modular plugs. UL is the strictest 3rd party verification service in the world and products bearing the UL mark represent the highest quality and safety standards.

PoE/PoH Rated. The S45-1050 is ideal for PoE/PoH applications. The S45-1050 is fully shielded; uses the correct 3-Prong Pin design; true 24ct gold plated pins, and is made using the highest quality materials for RJ45 modular plugs. This all ensures lower resistance and less heat build-up than cheaper made RJ45 that are out on the market.
