Product Information

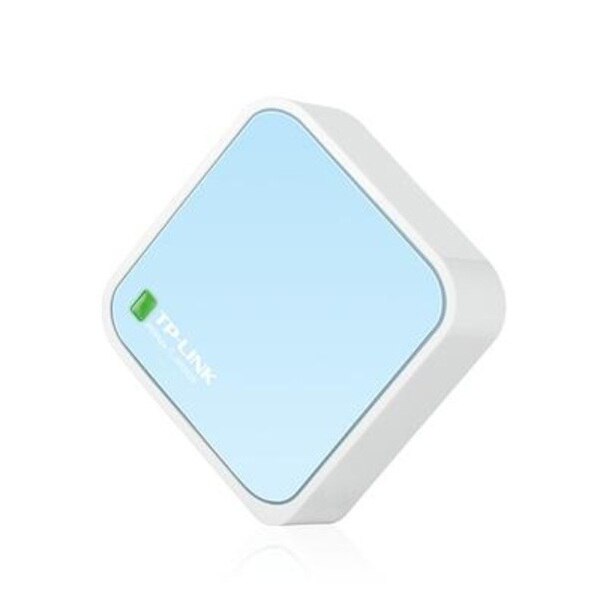

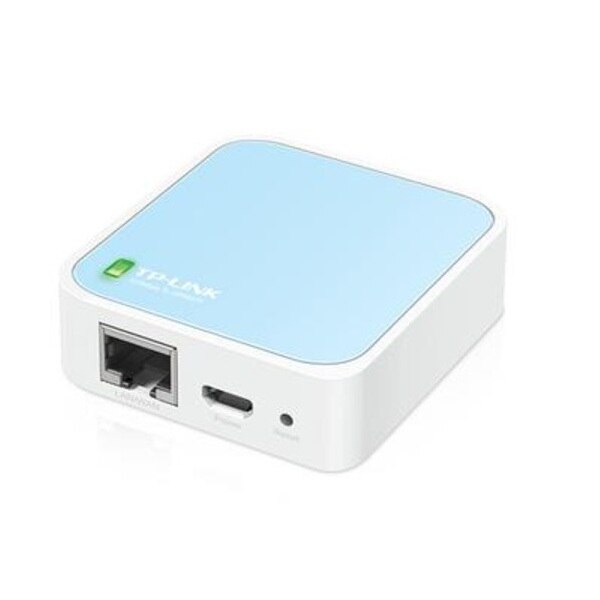

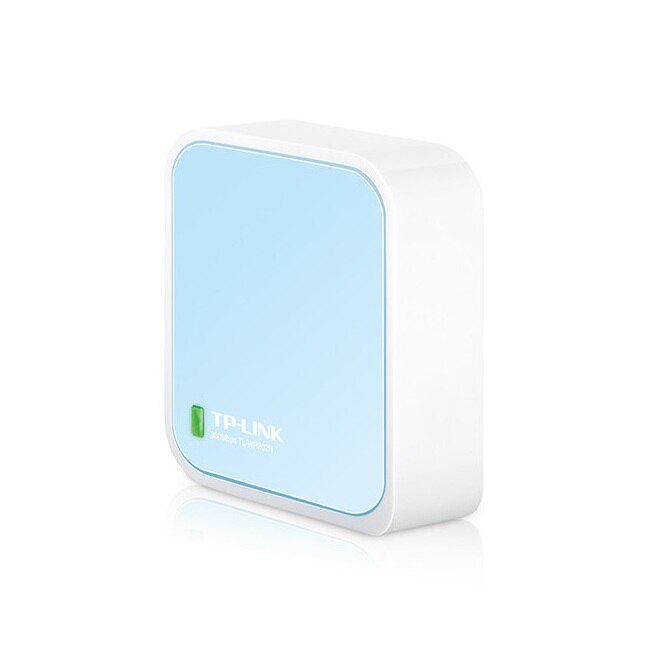

300Mbps Wireless N Nano Router TL-WR802N
Multiple Operating Modes
Ideal for Home and Travel Use
To meet the wireless needs of almost any situation you might encounter, the TL-WR802N supports Router, Hotspot, Range Extender, Client and Access Point Modes.
During Travel
Router Mode
Instantly create a private wireless network and share Internet access with multiple Wi-Fi devices. Ideal for setup in most hotels.
*Travel Streaming with Chromecast and Amazon Fire TV Stick Instantly Share Internet Connection during Travel.
Hotspot Mode
Enjoy wireless Internet access by connecting to an outdoor WISP Access Point.
Range Extender Mode
Extend existing Wi-Fi to improve signal strength and maximize coverage.
Client Mode
Allow devices that require a wired connection to access an existing Wi-Fi network.
Access Point Mode
Create a wireless network for Wi-Fi devices.
Portable and Compact - Suitable for Home and Travel
The TL-WR802N is the smallest wireless router in the world. It is very easy to use and is a perfect choice for travelers, students, and anyone else who lives life on the go.
Flexible Power Supply - Find Power Wherever You Are
The TL-WR802N can be powered using the included power adapter or using a smartphone /USB charger.
Features:
- 300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling*
- Pocket-size – Ideal for home and travel use
- Supports Router, Repeater, Client, AP and hotspot operation modes
- Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation
- Easy installation in minutes
Specifications
Specifications TL-WR802N
| Interface | 1 10/100Mbps WAN/LAN Port 1 Micro USB Port 1 Reset Button |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm) |
| Antenna Type | On-Board |
| Frequency | 2.4-2.4835GHz |
| Wireless Modes | Router Mode, Repeater Mode, Client Mode, AP Mode, WISP Router Mode |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/ PPTP/L2TP |
| Management | Access Control Local Management Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
| Access Control | Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
| Certification | FCC, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
