TP-Link Kasa Smart Doorbell
Product Information

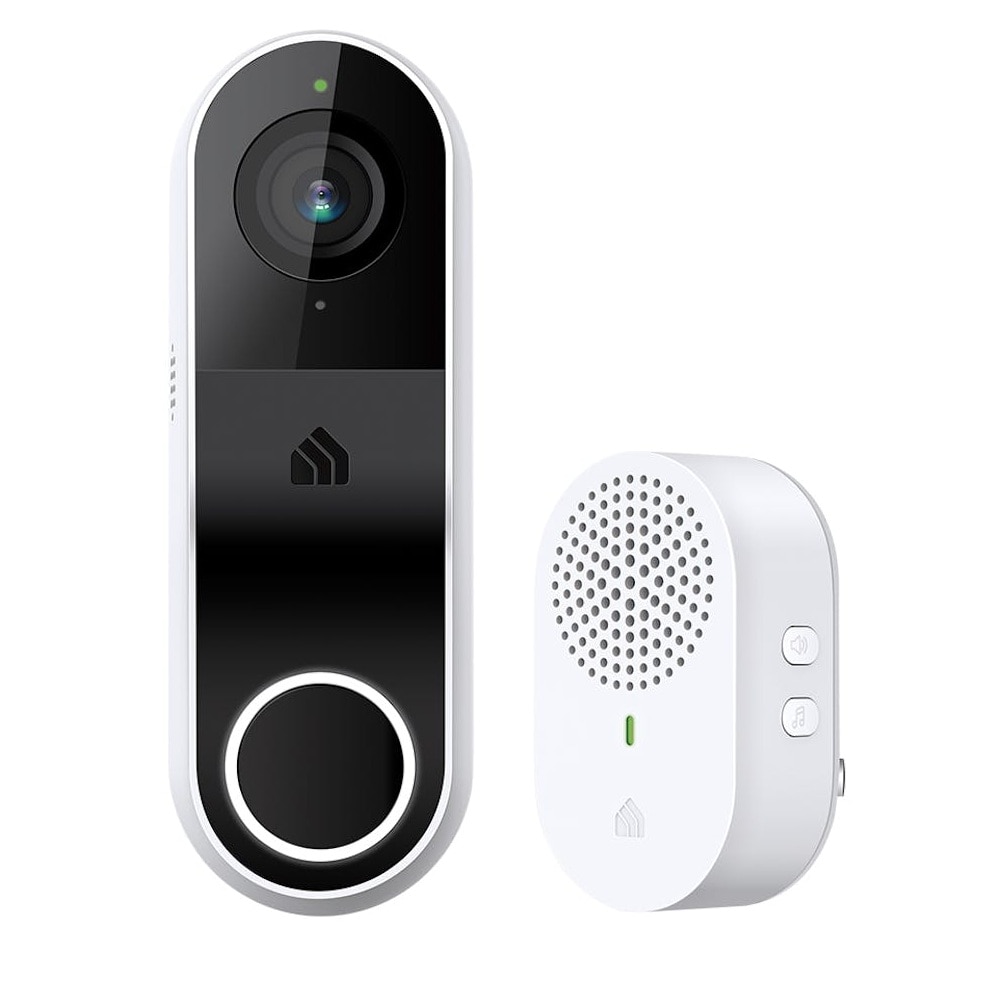

TP-Link KD110
Kasa Smart Doorbell
Anytime and anywhere, check out the door Keep an eye out for deliveries, visitors, or possible intruders at your door with the crisp and sharp 3MP HD video
Higher resolution, wider view
Take advantage of the larger format and sharper pixel quality. Captures videos in the resolution of 2304x1296 (3 megapixels) with a broader scope.
Two-way Talk
With built-in microphone and speaker, carry on a conversation from anywhere with your phone or other supported device.
Real-Time Detection and Notification
Notify you when people or motion is detected. Then you can see what's happening immediately with the streaming live view via your phone, or Alexa or Google supported displays.
Indoor Chime Included
Choose from a variety of ringtones to find the perfect chime for you, get noticed immediately when you're at home.
Night Vision
The improved image sensors and high-quality contrast means that you won't miss a single detail, day or night.
Record the Whole Thing
Start recording 3-5 seconds before motion alerts triggered to give you the whole image. Subscribe to Kasa Care, store and access recorded clips in the cloud.
IP64 Weatherproof
IP64 certified weatherproofing ensures your doorbell stays protected against rain and dust.
Features:
- 3 Mp Hd Video:Sharp and clear 3 MP high resolution offers greater detail and colors, even when you zoom in.
- Live View With Two-way Talk:Watch live video and carry on a conversation from anywhere with your phone or other supported device.
- Notifications That Matter:Get instant push notifications when someone is detected in your custom activity zones or when the doorbell button is pressed.
- All-weather All-star:IP64 certified weatherproofing ensures your doorbell stays protected against rain and dust.
- Local And Cloud Storage:Save your footage continuously on a microSD card or subscribe to a Kasa Care Plan to store video clips to the cloud.
Specifications
Specifications KD110
| Weight | 0.645 lbs |
| Doorbell Dimensions (w x D x H) | 1.78 x 1.08 x 5.12 in. (45 x 27.5 x 130 mm) |
| Chime Dimensions (w x D x H) | 1.71 x 1.85 x 2.87 in. (43.5 x 46.9 x 73 mm) |
| Doorbell | |
| Image Sensor | 1/2.8’’ |
| Resolution | 3 MP HD (2304 × 1296 pixels) |
| Night Vison | 850 nm IR LED up to 15 ft |
| Lens | F/NO: 2.1; Focal Length: 2.1 mm |
| Viewing Angle | Diagonal FOV = 160° |
| Storage | Supports Micro SD card, up to 128 GB (microSD card not included.) |
| Audio | |
| Doorbell Audio Communication | 2-way audio |
| Doorbell Audio Input & Output | Built-in microphone and speaker |
| Chime Audio Output | 8 Ringtones and Built-in speaker |
| Video | |
| Video Compression | H.264 |
| Frame Rate | 15 fps |
| Video Streaming | 3 MP HD (2304 × 1296 pixels) |
| Audio Compression | G.711 |
| Network | |
| Wireless Rate | 11Mbps (802.11b) 54Mbps (802.11g) 72.2Mbps (802.11n) |
| Frequency | 2.4 GHz |
| Wireless Security | WEP, WPA/WPA2-PSK |
| Security | 128 bit AES encryption with SSL/TLS |
| Requirements | |
| Existing Doorbell Wires | Yes |
| Transformer (not Included) | 16V AC ~ 24V AC, 10 VA Minimum, 50/60Hz |
| Environment | |
| Operating Temperature | -20°C~45°C (-4°F~113°F) |
| Storage Temperature | -20°C~70°C (-4°F~158°F) |
| Operating Humidity | 10%~90%RH non-condensing |
| Storage Humidity | 5%~90%RH non-condensing |
