Ubiquiti Networks U6 In-Wall
US$179.00
- SKU: U6-IW-US
- Manufacturer: Ubiquiti Networks
- Installation Guide:Download
Product Information

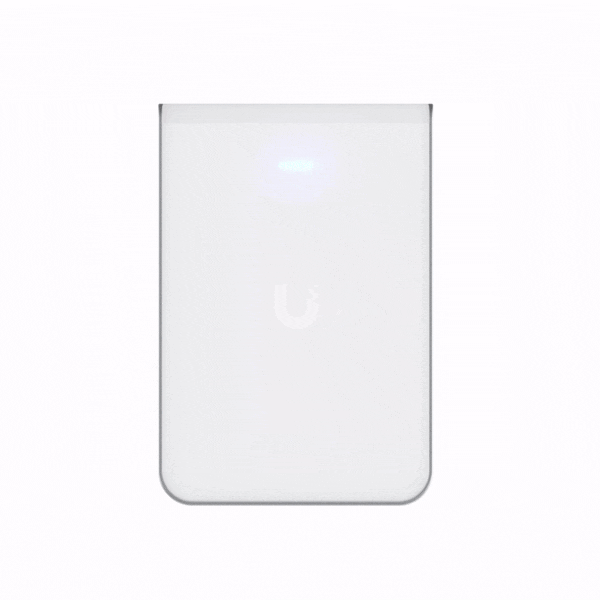

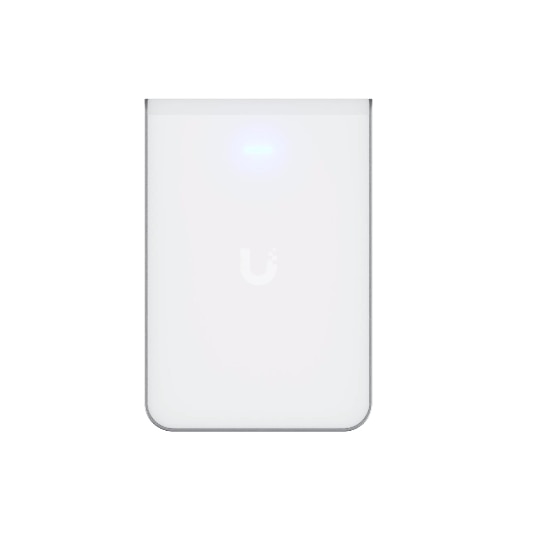

Ubiquiti Networks U6-IW

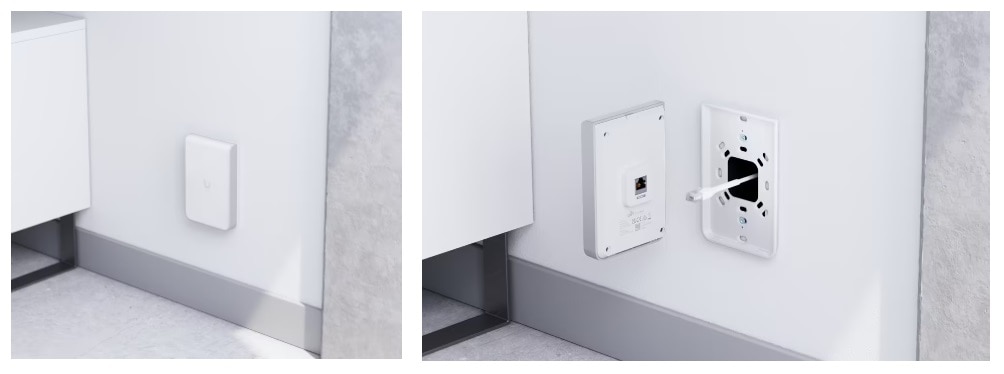

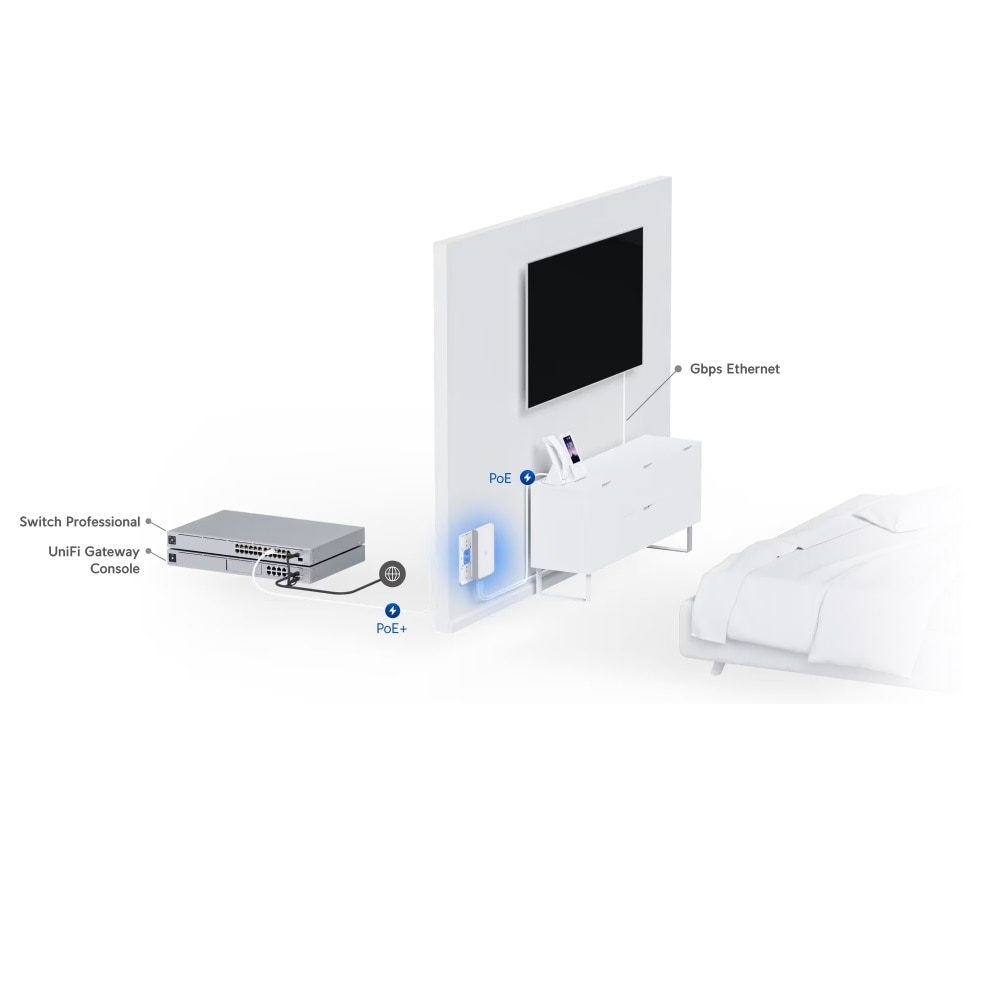

Wall-mounted WiFi 6 access point with a built-in PoE switch.
Features:
- 115 m² (1,250 ft²) coverage
- 300+ connected devices
- WiFi6 (4x4 MIMO)
- Powered using PoE*
Specifications
Specifications U6-IW

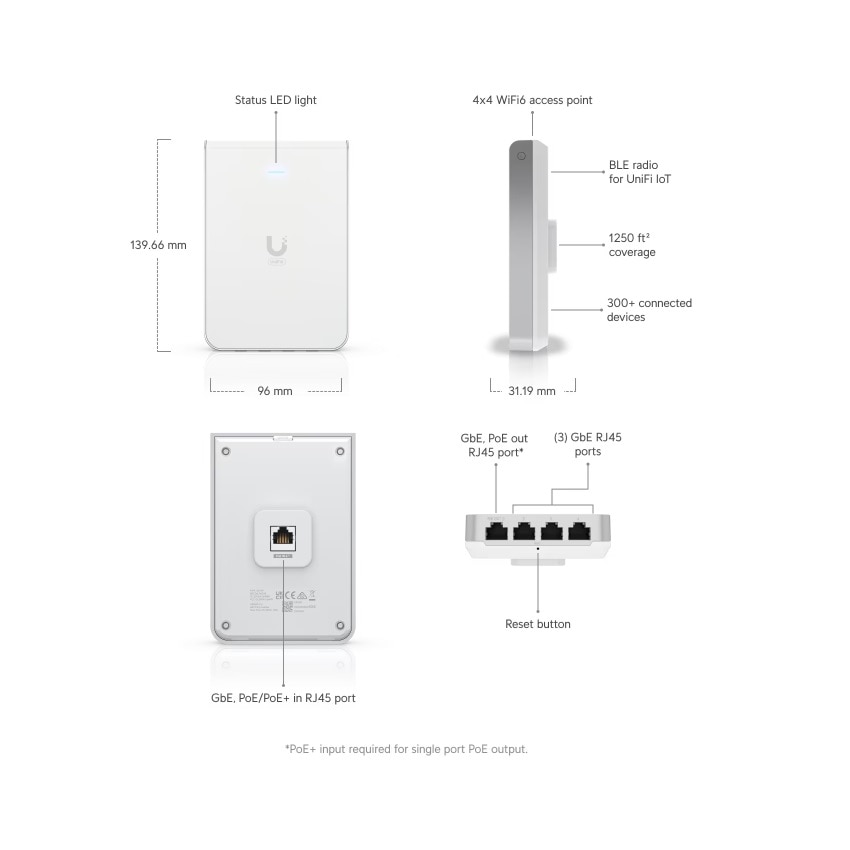

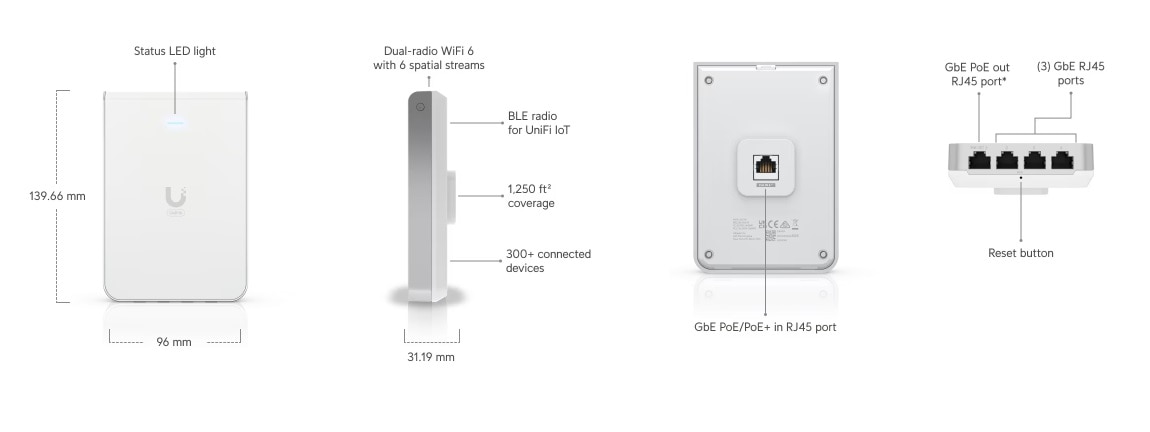

| Dimensions | 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28") |
| Weight | 460 g (1.01 lb) |
| Enclosure materials | Plastic, aluminum |
| Mount material | Aluminum |
| Hardware | |
| Networking interface | (1) Data-in: 1GbE RJ45 port |
| (4) Data-out: 1GbE RJ45 ports | |
| Management interface | Ethernet |
| Bluetooth | |

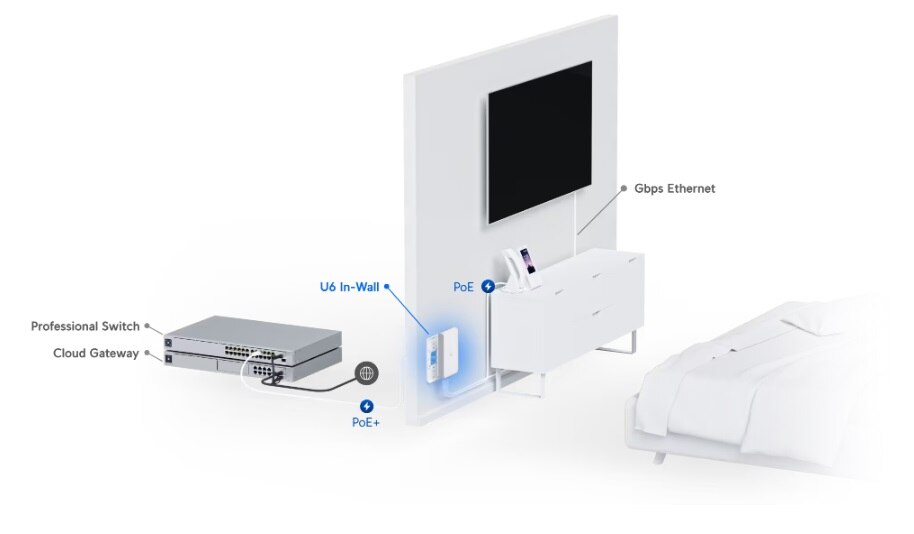

| PoE interface | (1) PoE in (PoE output not used) |
| (1) PoE out (Requires a PoE+ switch) | |
| Power method | PoE |
| Power supply | UniFi PoE switch |
| 48V, 0.5A PoE adapter (Optional) | |
| Max. power consumption | Excluding PoE output: 13.5W |
| Max PoE wattage per port by PSE | 15.4W* *Requires a PoE+ switch |
| Voltage range PoE mode | 44—57V DC |
| Max. TX power | |
| 2.4 GHz | 22 dBm |
| 5 GHz | 26 dBm |
| MIMO | |
| 2.4 GHz | 2 x 2 (UL MU-MIMO) |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate | |
| 2.4 GHz | 573.5 Mbps |
| 5 GHz | 4.8 Gbps |
| Antenna gain | |
| 2.4 GHz | 5 dBi |
| 5 GHz | 5.9 dBi |
| LED | White/blue |
| Button | Factory reset |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Zero-wait DFS | Yes* *Supported with upcoming firmware versions. |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 6.4.52 and later |
