Ubiquiti Networks UACC-Cable-C5e-Outdoor-Pro-305M-W
US$165.00
- SKU: UACC-Cable-C5e-Outdoor-Pro-305M-W
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti Networks UACC-Cable-C5e-Outdoor-Pro-305M-W

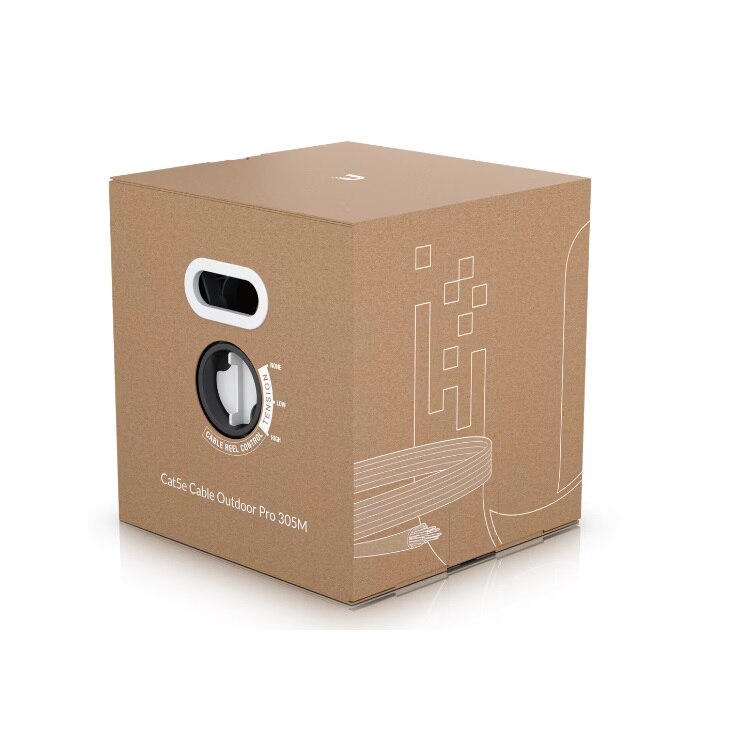

Ubiquiti UniFi Outdoor Cable Cat5e 1,000-foot (305 m)
The UniFi Outdoor Cable is an all-weather Category 5e cable designed to protect Gigabit Ethernetlinks from harsh weather damage and electromagnetic interference with its highly insulating, white, weatherproof jacket and built-in ESD drain wire. This 1,000-foot(305 m) cable also features 24 AWG solid copper conductor pairings and internal foil shielding to optimize connection stability and performance.
Features:
- Category 5e cable
- Insulated, weatherproof jacket
- Internal foil shielding and drain wire for increased ESD damage protection
- Cable length 305 m
Specifications
Specifications
| Box dimensions | 330 x 330 x 340 mm (13 x 13 x 13.4") |
| Box weight | 12.6 kg (27.78 lb) |
| Cable length | 305 m (1000 ft) |
| Cable color | White |
| Cable type | Category 5e |
| Shielding type | STP |
| Flame rating | VW-1 (UL1581) |
| Conductor wire gauge | 24 AWG |
| Conductor type | Solid bare copper |
| Jacket material | Thermoplastic elastomer (TPE) |
| Jacket diameter | 6 mm (0.24") |
| Bend radius | Min. 24 mm (0.94") |
| Storage temperature | -30 to 75°C (-22 to 167°F) |
| Installation temperature | -20 to 60°C (-4 to 140°F) |
| Operation temperature | -40 to 80°C (-40 to 176°F) |
| Anti-crosstalk divider | No |
| Ripcord | Yes |
| Standards | TIA/EIA-568-B.2 ISO/IEC 11801 |
